Automatic Two-component Adhesive Filling Silicone Epoxy Resin Mixing Ab Glue Potting Machine

Automatic Two-component Adhesive Filling Silicone Epoxy Resin Mixing Ab Glue Potting Machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $19999

≥2 Pieces

US $19800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Applicable Industries:: electronic parts, led lights, honeycomb panel, PCB

Voltage:: 220V

Product name:: Glue Spraying machine

Type:: standalone

Keyword:: ab glue potting machine

After-sales Service Provided:: yes

Quick Details

Place of Origin:: China

Brand Name:: KPD

Weight (KG):: 550

Applicable Industries:: electronic parts, led lights, honeycomb panel, PCB

Voltage:: 220V

Product name:: Glue Spraying machine

Type:: standalone

Keyword:: ab glue potting machine

After-sales Service Provided:: yes

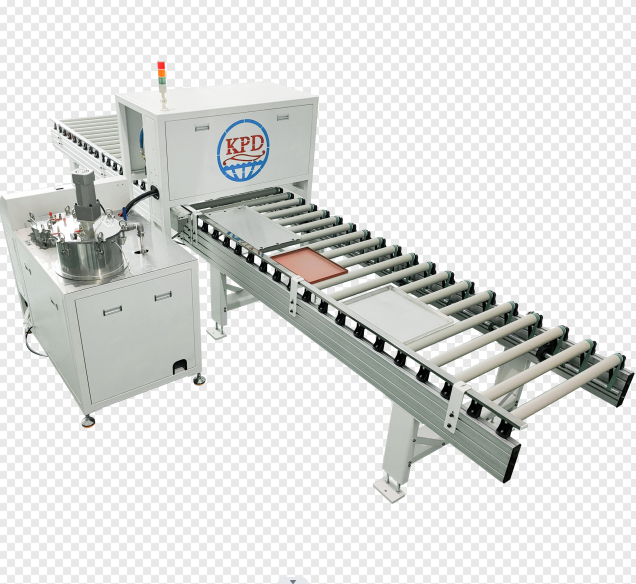

Glue Spraying Machine for Integrated Ceiling Wallboard All-Aluminum Furniture MGO Panels

The glue Spraying line is based on the reform of the traditional roller glue machine process. With the marketization and standard scale of stainless steel furniture, all-aluminum furniture, and whole- house customization, the demand for new building materials is increasing day by day. In order to better meet the market According to the needs of customers, the functions are constantly upgraded and updated. In the building materials composite industry, the problems faced by customers are the diversification of products, the personalization of sizes and the huge quantity. The basic functions of this equipment are:

1.Automatic edge finding: (automatic recognition) automatically adjusts the glue spraying position according to the size and length of the board;

2. Automatic glue spray amount: (automatically adjusts the speed of glue dispensing according to the size of the board and the conveying speed);

3. Automatic feeding: When the glue volume in the glue barrel is lower than the set lower limit, the glue adding process will be automatically started.

4. One-click start: Eliminate the tedious preparation work before starting up, and realize automatic operation to working status with one click;

5. Glue heating: The equipment is equipped with glue heating and heat preservation functions, so that the glue is not restricted by ambient temperature and region, allowing customers to choose the brand of glue more freely;

6. Anti-sedimentation mixing: A glue barrel is equipped with an intelligent control mixing device to prevent precipitation or stratification caused by long-term stasis of glue, and to ensure that the glue is heated evenly when heated.

7. Visual mixing: The equipment adopts imported dynamic mixing tubes and is matched with Taiwan's high-speed brushless motor to achieve adjustable mixing speed and direct viewing of the mixing status to ensure uniform mixing;

8.Disassembly-free automatic cleaning: The equipment adopts a high-pressure gas-liquid automatic switching cleaning device. There is no need to disassemble the glue spray head, achieving true disassembly-free cleaning in the industry, and the cleaning effect is visible to the naked eye;

9.Patented glue-controlled suction valve: The equipment is equipped with our company's patented glue-controlled anti-drip suction valve, which can open the glue in time and close the glue quickly with suction adjustment;

10.Special metering pump: The equipment adopts a special polyurethane high-flow and wear-resistant precision metering pump , which can accurately control glue and adjust the flow rate to achieve an accuracy of ±0.5%, effectively avoiding inaccurate proportions and greatly improving the product qualification rate;

The overall cold plate bending process of the equipment + special industrial profiles ensure smooth operation, beauty and elegance. The conveyor line adopts German friction transmission method, which can realize stop and start, automatically adjust the conveying tension, and realize glue dispensing without gaps and noise;

The swing arm adopts a high-speed module for reciprocating spray coating and is equipped with a precision servo motor to effectively and accurately control the glue spraying position and leave a reasonable margin to prevent glue from overflowing)

Product Description

This solution describes how XPS Insulation boards are produced. Using the method of one-component/two-component polyurethane glue coating, coating the MGO board with XPS board, coating it again, then placing the MGO board to form a sandwich structure, and finally waiting for the glue to solidify by cold pressing.

CONSTRUCTION

The machine consists of a return glue spraying system with a spray head and a movable glue feeding mechanism, it has a frame structure, spray head is movable, and there is numerical control (CNC). The machine is equipped with a fault warning system (overload, emergency shutdown, phase break protection, voltage surge protection).

APPLICATION

Machine is designed for rapid uniform application of glue onto large areas during production of composite panels for different fields: automotive industry (panels for trailers and FRP panels for refrigerated wagons), car building, construction materials (fire-resistant doors, thermal panels, fireproof screens made of mineral wool), furniture production (including kitchen and paper panels, etc.).

Model	KPD-1300L
Governing equation	Velen Touch Screen + Mitsubishi Programmable Controller
Power supply	220V 50HZ
Pneumatic	0.5MPa-0.8MPa
Equipment power	2780W
Countertop Height	800MM±50
hybrid approach	High speed dynamic mixing 100-3000 rpm
Measurement method	Industrial computer + Mitsubishi PLC + precision metering pump + precision glue control valve
Proportioning accuracy	100g±1%
Accurate	2g ± 1 per cent per square
Gluing speed	0.5g-40g/sec
Overall dimensions	9000-2250*1750 (rated according to model)
Configure	Glue heating, automatic gluing, automatic cleaning, automatic identification, sedimentation mixing, glue shortage alarm, etc.
Equipment weight	1000KG(reference weight)

3. Honeycomb equipment has several advantages:

• Automatic gluing

• Reducing labor cost

• High efficiency

• Energy saving and emission reduction

4. Applications:

• Making aluminum honeycomb core

Aluminium honeycomb panel

Copper honeycomb panel

Stainless steel honeycomb panel

FRP honeycomb panel

HPL honeycomb panel

Aluminium foam core sandwich panel

FRP foam core sandwich panel

FRP plywood panel

KPD automation is located in Guangzhou . The company is a high-tech manufacturing enterprise integrating R&D, manufacturing and sales. The company has rich experience in manufacturing coating equipment, equipment performance and manufacturing, it is at the leading level in the country, filling many technical gaps in the country, taking the lead in passing the IS09001 quality management system certification, and getting several invention patents and utility patents.

The company's main productions are fully automatic glue spraying machines, glue spraying machines, gantry glue spraying production lines, Cantilevered glue spraying production lines, fully automatic spray paint machines, UV coating production lines and other automated coating equipment. The company has a group of experienced design engineers and skilled after-sales service personnel, and also has established a scientific, reasonable and complete management system, a quality assurance system.

We have always pursued a professional development path and adhered to the business philosophy of "quality first, customer first, pioneering and innovative". Through continuous innovation, we have always mastered high-end and precise core technologies, exquisite manufacturing processes, and product quality control, and application Our professional services help customers create higher value.
