Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
DONGFU WIRE MESH
-
Model Number:
-
DF-HWG
-
Wire Gauge:
-
2.0 mm - 4.4 mm
-
Product Name:
-
Hexagonal Double Twist Steel Wire Mesh Gabion
-
Wire Diameter:
-
2.0 mm - 4.4 mm
-
Surface treatment:
-
Galvanized, PVC Coated
-
Gabion Type:
-
Gabion box and gabion mattress
-
Mesh Opening:
-
80 mm x 100 mm
-
Available Minimal Rock Size:
-
100 mm - 250 mm dense and durable stone.
-
Length:
-
0.5 m - 5 m
-
Width:
-
0.2 m - 2 m
-
Height:
-
0.1 m - 2 m
-
Standard:
-
ASTM A975-11 Standard Specification
Quick Details
-
Material:
-
High quality steel wire
-
Type:
-
Hexagonal double twist steel wire mesh.
-
Application:
-
Gabions
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
DONGFU WIRE MESH
-
Model Number:
-
DF-HWG
-
Wire Gauge:
-
2.0 mm - 4.4 mm
-
Product Name:
-
Hexagonal Double Twist Steel Wire Mesh Gabion
-
Wire Diameter:
-
2.0 mm - 4.4 mm
-
Surface treatment:
-
Galvanized, PVC Coated
-
Gabion Type:
-
Gabion box and gabion mattress
-
Mesh Opening:
-
80 mm x 100 mm
-
Available Minimal Rock Size:
-
100 mm - 250 mm dense and durable stone.
-
Length:
-
0.5 m - 5 m
-
Width:
-
0.2 m - 2 m
-
Height:
-
0.1 m - 2 m
-
Standard:
-
ASTM A975-11 Standard Specification
|
|
Twisted Hexagonal Woven Mesh Gabion Boxes and Gabion Revet Mattresses
Gabion is very popular in construction with its stable structure, high flexibility, and corrosion resistance. We can supply two kinds of gabion: welded gabion and woven gabion.
Woven gabion boxes are made of high-quality steel wire, which has 2 types of fabrication: double or triple twist fabric. The fabric structures are flexible and variable. Compared with welded gabion baskets, woven gabion baskets have durability for long service life.
Woven gabion boxes can be widely used for erosion protection, roadway and bridge protection, gravity retaining wall, slope paving, and riverbank controlling.
|
Mesh Opening: |
60 mm x 80 mm, 80 mm x 100 mm, 100 mm x 120 mm, 120 mm x 150 mm, 160 mm x 210 mm, 140 mm x 180 mm, 180 mm x 220 mm |
|
Mesh Wire Diameter: |
2.0 mm - 4.0 mm |
|
Selvedge Wire Diameter: |
3.0 mm - 4.4 mm |
|
Lacing Wire: |
2.0 mm, 2.2 mm |
|
Length: |
0.5 m - 5 m |
|
Width |
0.2 m - 2 m |
|
Height: |
0.1 m - 2 m |
|
Common specifications are 2m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m. The external dimensions can be customized within the standard range. |
|
Hexagonal Gabion Box and Gabion Revet Mattresses
Table 1: Woven Gabion Box Common Specification:
| Code | Height | Width | Length |
|---|---|---|---|
| WOGB-1 | 1' | 3' 3" | 6' 6" |
| WOGB-2 | 1' | 3' 3" | 9' 9" |
| WOGB-3 | 1' | 3' 3" | 13' 1" |
| WOGB-4 | 1' 6" | 3' 3" | 6' 6" |
| WOGB-5 | 1' 6" | 3' 3" | 9' 9" |
| WOGB-6 | 1' 6" | 3' 3" | 13' 1" |
| WOGB-7 | 1' 6" | 6' 6" | 19' 6" |
| WOGB-8 | 3' 3" | 3' 3" | 6' 6" |
| WOGB-9 | 3' 3" | 3' 3" | 9' 9" |
| WOGB-10 | 3' 3" | 3' 3" | 13' 1" |
Table 2: Woven Gabion Mattress Common Specification:
| Code | Length | Width | Height | Cells |
|---|---|---|---|---|
| GMA-1 | 12' | 6' | 6" | 2 |
| GMA-2 | 9' | 6' | 6" | 3 |
| GMA-3 | 9' | 6' | 9" | 3 |
| GMA-4 | 12' | 6' | 9: | 4 |
| GMA-5 | 9' | 6' | 12" | 3 |
| GMA-6 | 12' | 6' | 12" | 4 |
Corrosion-resistant Treatment
|
Type |
Wire diameter |
Zinc Content |
Tensile Strength |
Elongation |
Expected Rust Period |
|---|---|---|---|---|---|
|
Electro-Galvanized |
2.0 mm-4.0 mm |
5-10 g/m2 |
350-500 N/mm² |
≥12% |
1-6 months |
|
Hot-dip galvanized |
2.0 mm-4.0 mm |
30-50 g/m2 |
350-500 N/mm² |
≥12% |
2-5 years |
|
Heavy galvanized |
2.0 mm-4.0 mm |
≥215 g/m2 |
350-500 N/mm² |
≥12% |
More than 20 years |
|
Type |
Color |
Proportion |
Tensile Strength |
Elongation |
Shore A Hardness |
Coating Thickness |
|---|---|---|---|---|---|---|
|
PVC Coated |
Customizable |
1.35-1.4g/mm³ |
≥20N/mm² |
≥200% |
90-100 |
0.5mm |

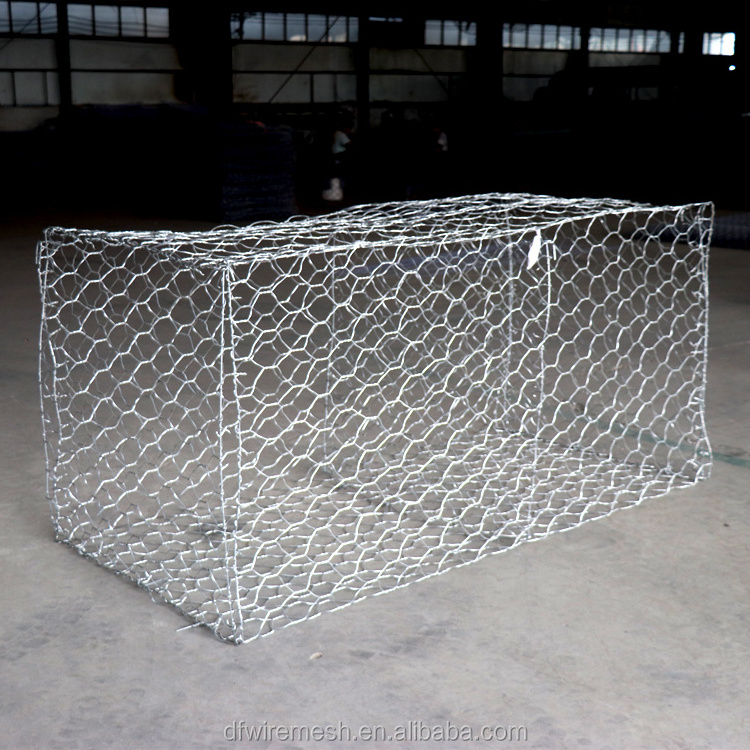

Real Shot Products
Packaging and Shipping
1. 50-100 gabion wire mesh per bundle, wrapped with 2 - 4 steel strips, it is compressed and to be bundled, then with pallets together.
2. It could be made to roll package, when you get the goods, you could cut to gabion box by yourself.
3. We also could pack according to customers' requirements.
Gabion Application Case
The gabion mesh structure can be used for slope support, foundation pit support, mountain rock surface hanging net spraying, slope planting (greening), railway highway isolation fence. After being made into a basket or mesh mat, it can be used in rivers, anti-scouring protection for dams and sea ponds, and the closure of reservoirs and rivers.
- Control and guide rivers and floods.
- Channel and canal riverbeds.
- Bank, slopes protection.
- Road paving.
- Retaining walls.
- Bridge protection.
- Coastal protection.
