Quick Details
-
Rotary drum capacity::
-
2000L
-
Engine type/displacement::
-
CF4B68G-Z-13B2/CF4C100T-Z-13B2
-
Rated power::
-
55kw/2400 78KW/2400
-
Max torque::
-
255/1500-1800 380/1500-1800
-
Max runing speed::
-
24km/h
-
Climbing capacity::
-
26 degree
-
Driving way::
-
4*4
-
Weight::
-
4880kg
-
Overall size::
-
6100*1850*3000mm
Quick Details
-
Place of Origin:
-
China
-
Weight:
-
4580 kg
-
Actual stirring capacity::
-
1800L
-
Rotary drum capacity::
-
2000L
-
Engine type/displacement::
-
CF4B68G-Z-13B2/CF4C100T-Z-13B2
-
Rated power::
-
55kw/2400 78KW/2400
-
Max torque::
-
255/1500-1800 380/1500-1800
-
Max runing speed::
-
24km/h
-
Climbing capacity::
-
26 degree
-
Driving way::
-
4*4
-
Weight::
-
4880kg
-
Overall size::
-
6100*1850*3000mm
Advantage : Automatic feeding self loading 1.2 CBM diesel engine concrete mixer truck
.1. Italy leading design, automatic feeding mixing system
.2. Simple and convenient operation
1Concrete Mixer 3m3 MIni Concrete Mixer Truck for sale
.3. High efficiency output, save time and labor, save cost
.4. The perfect combination of mixing truck and loading car.

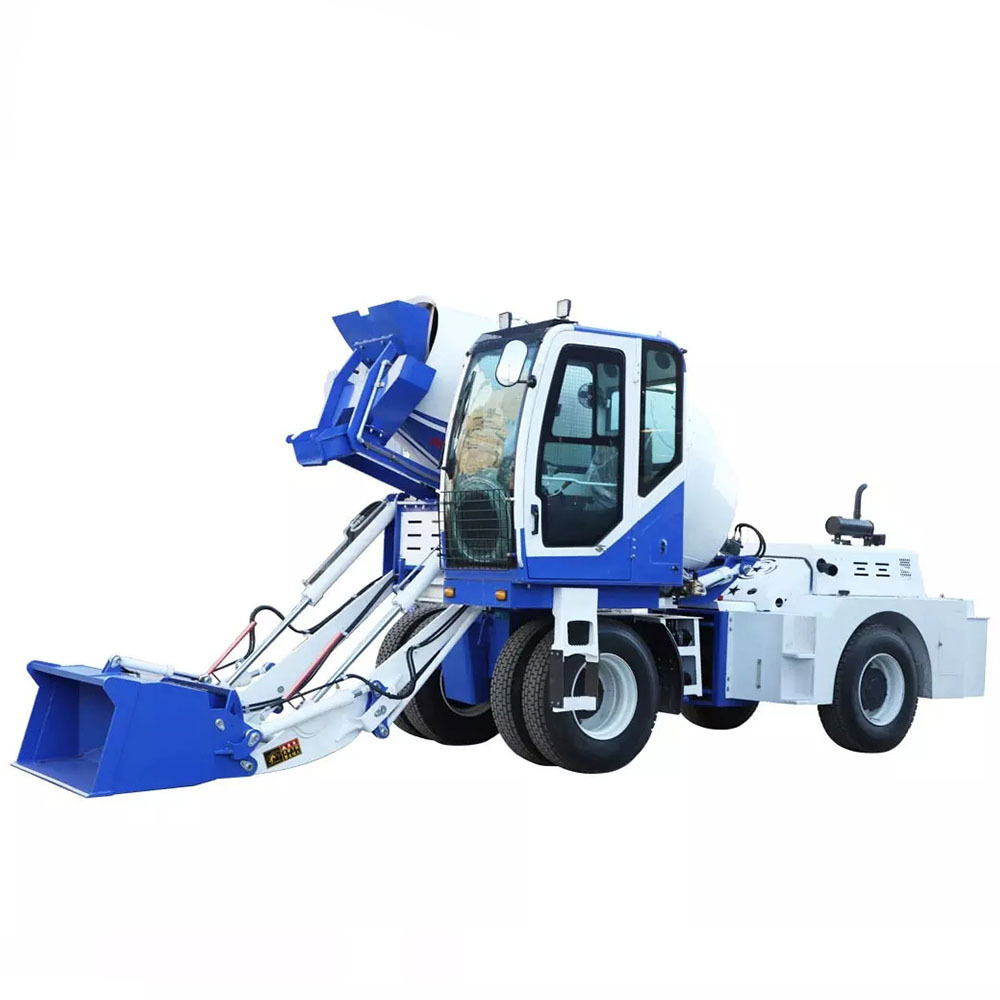

3 cubic meters mini self loading concrete mixer
|
Specification
|
|
|
|
|
||||
|
Actual stirring capacity
|
|
2.4m3
|
|
|
||||
|
Rotary drum capacity
|
|
2.6m3
|
|
|
||||
|
Degree of bias
|
|
16°
|
|
|
||||
|
Rotational speed
|
|
0-14r/min
|
|
|
||||
|
Direction of rotation
|
|
Feed:clockwise output:counter clockwise
|
|
|
||||
|
Mixing drum blade
|
|
Two sets of spiral blades and four sets of auxiliary blade
|
|
|
||||
|
Slump of concrete
|
|
70-260mm
|
|
|
||||
|
Hydraulic power transmission system
|
|
|
|
|
||||
|
Pump model
|
|
CBGV-4025
|
|
|
||||
|
hydraulic motor model
|
|
BMSS-250
|
|
|
||||
|
reducer ratio
|
|
01:10
|
|
|
||||
|
water supply
|
|
|
|
|
||||
|
tank capacity/water supply form
|
|
540/automatic timing water supply mechanism with automatic timing
|
|
|
||||
|
The main performance parameters of the chassis and the engine
|
|
|
|
|
||||
|
Engine type/displacement
|
|
CF4B68G-Z-13B2/CF4C100T-Z-13B2
|
|
|
||||
|
Model
|
|
Straight injection type four stroke water cooled supercharged diesel engine
|
|
|
||||
|
Rated power
|
|
55KW/2400 78KW/2400
|
|
|
||||
|
Max torque
|
|
255/1500-1800 380/1500-1800N.m/r/min
|
|
|
||||
|
Max running speed
|
|
24km/h
|
|
|
||||
|
Min steering radius
|
|
5000mm
|
|
|
||||
|
Climbing capacity
|
|
26°
|
|
|
||||
|
Tire
|
|
23.5/70-16
|
|
|
||||
|
Driving way
|
|
4X4
|
|
|
||||
|
Weight
|
|
4580kg
|
|
|
||||
|
Maximum load capacity
|
|
2800kg
|
|
|
||||
|
whole machinery weight
|
|
7380kg
|
|
|
||||
|
overall size (L*W*H)
|
|
6100*1850*3000mm
|
|
|
||||
1. Q: Are you factory?
A: Yes, we specialize in the manufacturing and trading of construction machinery for more than a decade. You are welcomed to visit our factory whenever it is convenient for you.
2. Q: The warranty of the machine?
A: 18 month. (Online support and video support can be offered as well)
3. Q: Do you have branch overseas?
A: Not yet. But it is in the blueprint of us. We are looking for experienced overseas agents.
4. Q: Is OA payment accepted?
A: It depends. The generally used payment terms include T/T, western Union, etc. If the amount is rather large, OA payment can be negotiated.
5. Q: Is EPA engine available?
A: Sure. If needed, EPA certified engine can be provided.
