- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NUOHUA
-
Voltage:
-
0
-
Dimension(L*W*H):
-
customized
-
Core Components:
-
components
-
Weight (KG):
-
50 kg
-
Product name:
-
Lift Gate Conveyor
-
After-sales Service:
-
Online Support
-
After warranty service:
-
Online Support
-
Certification:
-
CE
Quick Details
-
Power:
-
0
-
Warranty:
-
1 Year
-
Width or Diameter:
-
customized
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NUOHUA
-
Voltage:
-
0
-
Dimension(L*W*H):
-
customized
-
Core Components:
-
components
-
Weight (KG):
-
50 kg
-
Product name:
-
Lift Gate Conveyor
-
After-sales Service:
-
Online Support
-
After warranty service:
-
Online Support
-
Certification:
-
CE
NUOHUA gravity conveyor models
Gravity Roller Conveyor Benefits & Features
Gravity roller conveyors will convey light, medium, and heavy loads that have firm flat bottoms such as cartons, totes, cases,skids, drums and more. People often ask us how a gravity roller conveyor works? These unpowered (gravity-flow) conveyors use adown ward slope or a manual push to move loads down the line. They are one of the simplest handling systems around. Nuohua’s standard line of gravity roller conveyor includes models with rollers from 20 mm to 89 mm diameter and various frame styles. Some models are suited for temporary set-up, others for permanent installation. We’re a leading roller conveyor manufacturer. At Nuohua, we can analyze your gravity roller conveyor needs and configure a system for you. Our team can provide custom variations of products, such as special lengths, widths, roller centers, wheel patterns or modified standards. Contact our team for details.

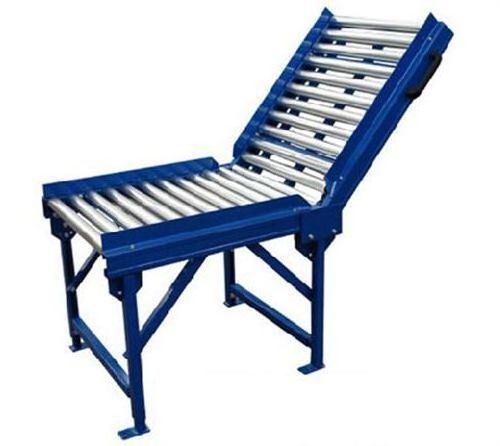

A standard conveyor line can be mounted to Gravity Lift Gate Roller Conveyor base, creating a conveyor gate that is easily lifted open for walk-through access.
Purposes:
*It is used for transport of boxed unit load with flat bottom.
* It is used as a temporary passage for crossing through the conveyor line.
Purposes:
*It is used for transport of boxed unit load with flat bottom.
* It is used as a temporary passage for crossing through the conveyor line.
Features：
*Lightweight design
*Economic and practical, cost-effective
*Lightweight design
*Economic and practical, cost-effective
*Modular combination, easy to transport
*Modularized design and easy assembling.
*Air spring is used to provide boost so that artificial overturing is easy and safe.
± Height Adjustment
*Air spring is used to provide boost so that artificial overturing is easy and safe.
± Height Adjustment
|
Roller Material
|
Steel
|
|
Roller Diameter
|
50mm
|
|
Roller Pitch
|
75mm/100mm/150mm
|
|
Frame Material
|
Steel
|
|
Frame Width
|
400mm/500mm/600mm
|
|
Length of Conveyor
|
800mm
|
|
Lifting Type
|
Gas Spring
|
|
Turning Angle(θ)
|
85°
|
|
Formed Steel for Frame
|
90*30*3mm
|
Customized size available
What we can offer?
Offer standard type gravity roller conveyor ( 10 days fast delivery for small quantity ).
Offer OEM /ODM gravity roller conveyor according to your photos and drawing.
Offer OEM /ODM gravity roller conveyor according to your photos and drawing.
Standard Packing
Customized packing way available
