This series filling machine is a highly versatile, dependable and accurate filling machine capable of handling water thin liquid
to highly viscous paste without or with chunks and particles but best for viscous liquid. This pneumatic volumetic filler machine
measures and delivers the product to the container by the action of a single piston for each filler head. The piston is drawn back
in its cylinder so that the product is sucked into the cylinder. A rotary valve then flips ninety degree between the cylinder and
discharge tube on the dispense stroke so that the product is then pushed out of the nozzle instead of back into the hopper.
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
99%
-
Voltage:
-
220V 50-60HZ
-
Place of Origin:
-
China
-
Weight:
-
60 KG
Quick Details
-
Machinery Capacity:
-
1000BPH
-
Packaging Material:
-
Plastic, Paper, Metal, Glass
-
Filling Material:
-
Milk, Water, Oil, Juice, liquid
-
Filling Accuracy:
-
99%
-
Voltage:
-
220V 50-60HZ
-
Place of Origin:
-
China
-
Weight:
-
60 KG
Products Description

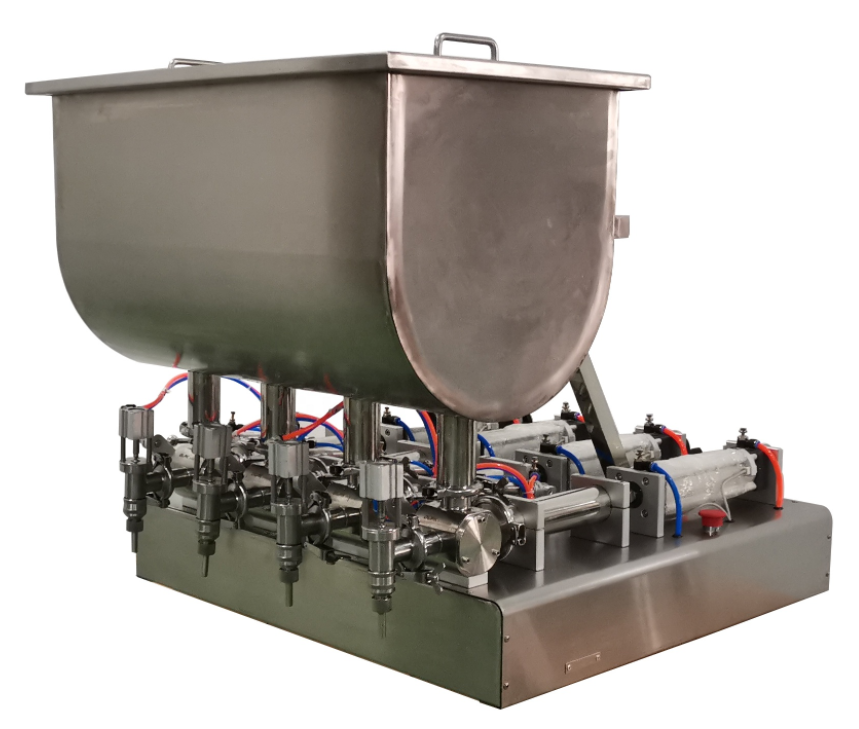

U type sauce filling mixing machine
The volume of the filling chamber in which the piston is operating determines the volume of product delivered into the container. The larger the product cylinder, the more available volume for filling. Adjusting the length of the piston's stroke can change this volume. As the stroke is lengthened, the volume of the chamber is increased, and as the stroke is shortened, the volume of the chamber is decreased.
Accuracy is dependent on what percentage of the overall volume of the product cylinder is used. The greater the volume, the more accurate. This series filling machines are accurate to +/- 1% when used in the recommended fill volume ranges for each specific size cylinder. Tabletop type of one nozzle and dual nozzles, floor type of one nozzle and dual nozzles are available for option.
Accuracy is dependent on what percentage of the overall volume of the product cylinder is used. The greater the volume, the more accurate. This series filling machines are accurate to +/- 1% when used in the recommended fill volume ranges for each specific size cylinder. Tabletop type of one nozzle and dual nozzles, floor type of one nozzle and dual nozzles are available for option.
Details Images
Product Paramenters
|
Model
|
G1WG
|
G2WG
|
G4WG
|
||
|
Power supply
|
220/110V 50/60HZ
|
|
|
||
|
Air pressure
|
0.6-0.8mpa
|
|
|
||
|
Output
|
0-40 bottles/min
|
0-80 bottles/min
|
0-160 bottles/min
|
||
|
Filling range
|
5-100ml, 10-300ml, 50-500ml, 100-1000ml, 500-3000ml, 1000-5000ml
|
|
|
||
|
Power
|
50W
|
100W
|
200W
|
||
|
Hopper
|
30L
|
50L
|
80L
|
||
|
Filling head
|
1
|
2
|
4
|
||
|
Dimension
|
1310*380*380mm
|
1310*550*380mm
|
1310*1010*420mm
|
||
|
Weight
|
35kg
|
55kg
|
90kg
|
||
