Quick Details
-
Application:
-
life saving
-
Capacity:
-
6/8/11/13/16 PERSON
-
Speed:
-
6/22/30 knots
-
Power:
-
25HP
-
Model No.:
-
GJ4.2
-
Sizes:
-
4.2*1.86*0.86 m
-
Total Weight:
-
1045kgs
-
Approval:
-
CCS/EC certificate
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Product Name:
-
Solas 6 Person GPR Open type Rescue Life Boat
-
Brand:
-
JIAOYAN
-
Application:
-
life saving
-
Capacity:
-
6/8/11/13/16 PERSON
-
Speed:
-
6/22/30 knots
-
Power:
-
25HP
-
Model No.:
-
GJ4.2
-
Sizes:
-
4.2*1.86*0.86 m
-
Total Weight:
-
1045kgs
-
Approval:
-
CCS/EC certificate

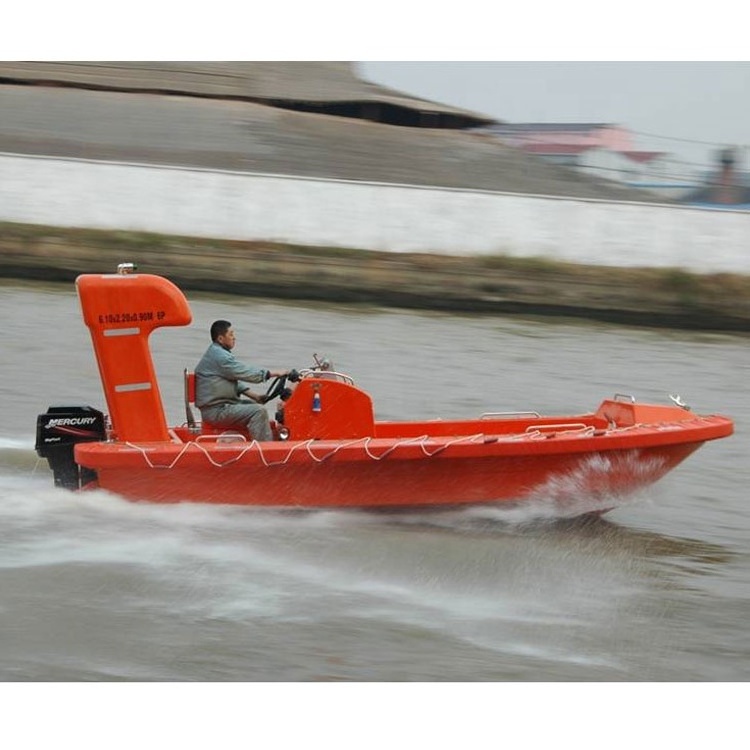

Solas 6 Person GPR Open type Rescue Life Boat
Rescue Boat is made from fiber reinforced plastic(FRP), and it is filled with polyurethane foams between its inner hull and outer hull to offer sufficient buoyancy. If damages occur to the boat-body under water, the buoyant hull can still provides sufficient buoyancy to enable the boat to sail safely on the water surface.
Teel handrails are installed on the both sides of the boat for occupants. Safe-discharging deck ensures quick discharge of water in the boat. Fast rescue boat is equipped with self-right air-tank, which is according to the latest regulations of SOLAS and international standards to design and build.
Features of GPR Open type Rescue Life Boat
Rescue boat include Normal speed type(>6knots/capacity 6 persons)and High speed type(>20knots/Max. capacity 16 persons)
Rescue boat engine have outboard type(gasoline engine)and inboard engine type(diesel engine) with water jet.
Working boat be used for communication,transport personnel, maintenance, hydrographic and supply replenishment.
Specification of GPR Open Type Rescue Boat
|
Model |
Main Dim.
|
Capacity
|
Speed
|
Total weight
|
|
GJ4.2 |
4.2x1.86x0.86 |
6 |
>6 |
1045 |
|
GJ4.25 |
4.25x1.84x0.75 |
6 |
>6 |
954 |
|
GJ4.5(gasoline) |
4.5x1.86x0.86 |
6 |
>6 |
1190 |
|
GJ4.5(Diesel) |
4.5x1.86x0.86 |
6 |
>6 |
1280 |
|
GJ5.0 |
5.0x1.86x0.90 |
6 |
>6 |
1175 |
|
GJ5.25 |
5.25x2.00x0.90 |
6 |
>6 |
1270(380J-3)
|
|
GJ6.10 |
6.1x2.20x0.90 |
8 |
>22(3P) |
1631 |
|
GJ6.0B-1(Diesel)
|
6.5x2.15x1.1 |
13 |
>30(3P) |
2761.5
|
|
GJ7.50 |
7.5x2.32x1.10 |
13 |
>30(3P) |
3077.5 |
|
GJ8.0Q-2 |
8.05x2.80x1.10 |
16 |
>30(3P) |
4700 |
|
GJ8.5Q-2 |
8.5x2.80x1.10 |
16 |
>30(3P) |
4950 |
