Quick Details
-
Application:
-
Villa
-
Type:
-
Electric Gate Lock
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Chisung
-
Model Number:
-
EL101, EL101 Electric lock
-
Power supply:
-
DC 12V
-
Product used for:
-
Smart Electric lock Security for automatic gate opener
-
Output:
-
DC12V
-
Product used for 2:
-
DC12V/24v black lock for swing gate opener
-
Certificate:
-
CE Approved
-
Weight:
-
2kg
-
Dimension:
-
124 x 67 mm
-
Double coil:
-
Powder coated finish.
-
Usage:
-
Driveway Electric Gate Lock
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
NONE
-
Application:
-
Villa
-
Type:
-
Electric Gate Lock
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Chisung
-
Model Number:
-
EL101, EL101 Electric lock
-
Power supply:
-
DC 12V
-
Product used for:
-
Smart Electric lock Security for automatic gate opener
-
Output:
-
DC12V
-
Product used for 2:
-
DC12V/24v black lock for swing gate opener
-
Certificate:
-
CE Approved
-
Weight:
-
2kg
-
Dimension:
-
124 x 67 mm
-
Double coil:
-
Powder coated finish.
-
Usage:
-
Driveway Electric Gate Lock
Product Description

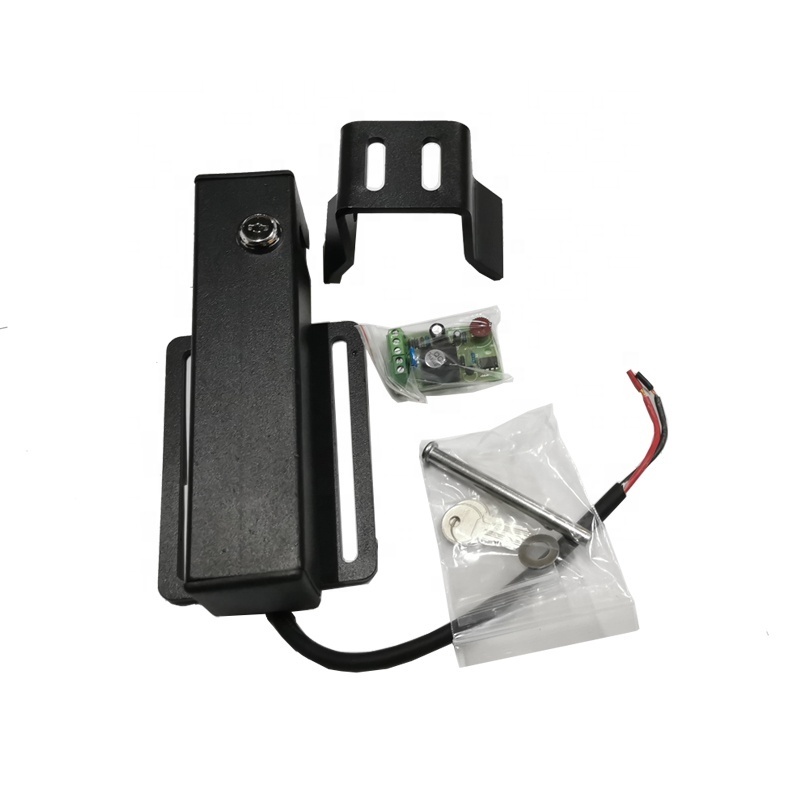

24V DC Electric Gate Lock with rotating deadbolt
EL102
*Chisung EL102 Electric Lock is suitable for inside or outside manual or automatic doors and pedestrian or drive-through gates.
* It is standard supplied with the service function and by simply removing an internal part,can get the security function.
* Its small size and the floor striker provided make it ideal for vertical installation on narrow frames.*The loaded tongue of the spring enters the closing mode when the door is pushed close and when energized with 24v dc the tongue
rotates by 45 degrees causing the door to move away from the attacker plate, can be mounted on double or single doors.
Features:
Horizontal or vertical mounting.
24V DC powered collapsible lock when activated.
Solid brass rotating deadbolt.
Extra strong rotating bolt.
Unlocks when energized and locks again when energizing ceases.
Double coil.Powder coated finish.
Dimension: 124 x 67 mm.
Single gate installation: Gate to post.
Double gate installation: Gate to ground or gate to gate (recommended, if a gate stop is in use).
Supplied with galvanized striker.
Usage:
Driveway Electric Gate Lock
Pedestrian Electric Gate Lock
Suitability:
The EL-24V is suitable for pull to open gates application (gates swinging inwards), other push to open locks are available on
request.
EL102
*Chisung EL102 Electric Lock is suitable for inside or outside manual or automatic doors and pedestrian or drive-through gates.
* It is standard supplied with the service function and by simply removing an internal part,can get the security function.
* Its small size and the floor striker provided make it ideal for vertical installation on narrow frames.*The loaded tongue of the spring enters the closing mode when the door is pushed close and when energized with 24v dc the tongue
rotates by 45 degrees causing the door to move away from the attacker plate, can be mounted on double or single doors.
Features:
Horizontal or vertical mounting.
24V DC powered collapsible lock when activated.
Solid brass rotating deadbolt.
Extra strong rotating bolt.
Unlocks when energized and locks again when energizing ceases.
Double coil.Powder coated finish.
Dimension: 124 x 67 mm.
Single gate installation: Gate to post.
Double gate installation: Gate to ground or gate to gate (recommended, if a gate stop is in use).
Supplied with galvanized striker.
Usage:
Driveway Electric Gate Lock
Pedestrian Electric Gate Lock
Suitability:
The EL-24V is suitable for pull to open gates application (gates swinging inwards), other push to open locks are available on
request.
Product Paramenters
|
Type
|
Electric Gate Lock
|
|
Power supply
|
AC220V±10V 50/60HZ,AC110V±10V, 60Hz
|
|
Model Number
|
EL101 Electric lock
|
|
Product used for
|
Smart Electric lock Security for automatic gate opener
|
|
Output
|
DC24V
|
|
Product used for 2
|
DC12V black lock for swing gate opener
|
|
Certificate
|
CE Approved
|
|
Weight
|
2kg
|
|
Dimension
|
124 x 67 mm
|
|
Double coil
|
Powder coated finish.
|
|
Usage
|
Driveway Electric Gate Lock
|
|
Packing Size
|
Include 1 Unit lock,2 pcs Manual Keys
|
