Quick Details
-
Elongation (≥ %):
-
30
-
Place of Origin:
-
Jiangsu, China
-
Application:
-
extreme environment
-
Grade:
-
Nickel Base Alloy
-
Ni (Min):
-
72%
-
Model Number:
-
Hatelloy wire HC-276
-
Brand Name:
-
DLX
-
Chemical Composition:
-
Ni Cr Mo Fe W Co
-
Color:
-
Bright
-
Size:
-
Customized
-
Density:
-
8.9 g/cm3
-
Melting point:
-
1325-1370 ℃
-
Tensile strength Rm(N/mm2):
-
≥790
-
Yield strength Rm(N/mm2):
-
283
-
Elongation:
-
≥30
-
Material:
-
Nickle Alloy Material
-
Standard:
-
ASTM ASME SUS JIS DIN
Quick Details
-
Resistance (μΩ.m):
-
1.15
-
Powder Or Not:
-
Not Powder
-
Ultimate Strength (≥ MPa):
-
790
-
Elongation (≥ %):
-
30
-
Place of Origin:
-
Jiangsu, China
-
Application:
-
extreme environment
-
Grade:
-
Nickel Base Alloy
-
Ni (Min):
-
72%
-
Model Number:
-
Hatelloy wire HC-276
-
Brand Name:
-
DLX
-
Chemical Composition:
-
Ni Cr Mo Fe W Co
-
Color:
-
Bright
-
Size:
-
Customized
-
Density:
-
8.9 g/cm3
-
Melting point:
-
1325-1370 ℃
-
Tensile strength Rm(N/mm2):
-
≥790
-
Yield strength Rm(N/mm2):
-
283
-
Elongation:
-
≥30
-
Material:
-
Nickle Alloy Material
-
Standard:
-
ASTM ASME SUS JIS DIN

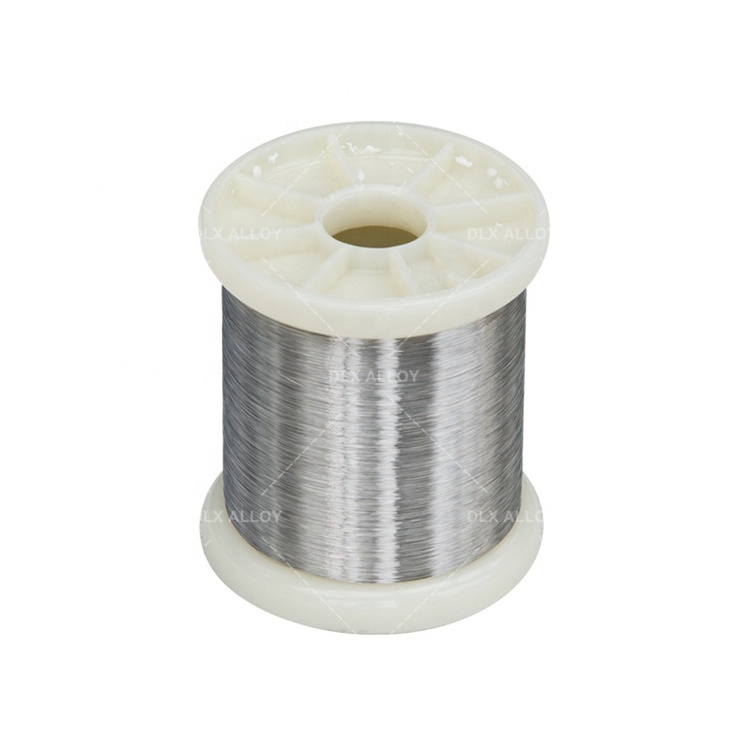

Hastelloy HC-276/C-22/C-4/B2/B3/N Wire
HASTELLOY is a Nickel-chromium-molybdenum wrought alloy that is considered the most versatile corrosion resistant alloy available.
This alloy is resistant to the formation of grain boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process applications in an as welded condition.Hastelloy Form: Pipe / Tube (welded and seamless), Plate /Sheet,Bar, Wire, Fittings
Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm;Length 2000-5000mm
Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm
Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm
This alloy is resistant to the formation of grain boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process applications in an as welded condition.Hastelloy Form: Pipe / Tube (welded and seamless), Plate /Sheet,Bar, Wire, Fittings
Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm;Length 2000-5000mm
Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm
Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm
|
Name
|
Hastelloy C22(N06022/2.4602/NS3308)
|
|
|
||
|
Chemmical Compsition wt.%
|
Ni
|
min.margin
|
max.margin
|
||
|
|
Fe
|
min.2
|
max.6
|
||
|
|
C
|
min.-
|
max.0.015
|
||
|
|
Mn
|
min.-
|
max.0.5
|
||
|
|
P
|
min.-
|
max.0.02
|
||
|
|
Si
|
min.-
|
max.0.08
|
||
|
|
Mo
|
min.12.5
|
max.14.5
|
||
|
|
W
|
min.2.5
|
max.3.5
|
||
|
|
Co
|
min.-
|
max.2.5
|
||
|
|
S
|
min.-
|
max.0.02
|
||
|
|
V
|
min.-
|
max.0.35
|
||
|
|
Cr
|
min.20
|
max.22.5
|
||
|
Product
|
nickel alloy wire
|
|
Material
|
Hastelloy/Nickel Alloy wire
|
|
Grade
|
Hastelloy:HastelloyB/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g Hastelloy B / UNS N10001,Hastelloy B-2 / UNS N10665 / DIN
W.Nr. 2.4617,Hastelloy C, Hastelloy C-4 / UNS N06455 / DIN W. Nr. 2.4610,Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602, Hastelloy C-276 / UNS N10276 / DIN W. Nr. 2.4819,Hastelloy X / UNS N06002 / DIN W. Nr. 2.4665 |
|
Thickness
|
Customized
|
|
Standard
|
GB,AISI,ASTM,DIN,EN,SUS,UNS etc
|
|
Quality test
|
we can offer MTC(mill test certificate)
|
|
Delivery time
|
Usually 7-15 dyas, or upon negotiation
|
The application areas of Inconel strip include the following: Aerospace field: Inconel strip has excellent high-temperature
resistance, corrosion resistance, and high-strength characteristics, and is widely used in the aerospace field, such as aircraft engine components, combustion chambers, turbine blades, gas turbines, and so on. Chemical industry: Inconel strip can maintain good performance in high temperature and corrosive environments, so it is widely used in chemical equipment, petroleum processing devices, refineries, fertilizer plants, and other fields. Medical field: Inconel strip has good biocompatibility and corrosion resistance, and is therefore used in the manufacturing of medical devices, such as artificial joints, dental devices, implants,etc. Electronics: Inconel strip has excellent electromagnetic shielding performance and high-temperature stability, making it widely used in electronic equipment, electronic components, semiconductor manufacturing, and other fields.
resistance, corrosion resistance, and high-strength characteristics, and is widely used in the aerospace field, such as aircraft engine components, combustion chambers, turbine blades, gas turbines, and so on. Chemical industry: Inconel strip can maintain good performance in high temperature and corrosive environments, so it is widely used in chemical equipment, petroleum processing devices, refineries, fertilizer plants, and other fields. Medical field: Inconel strip has good biocompatibility and corrosion resistance, and is therefore used in the manufacturing of medical devices, such as artificial joints, dental devices, implants,etc. Electronics: Inconel strip has excellent electromagnetic shielding performance and high-temperature stability, making it widely used in electronic equipment, electronic components, semiconductor manufacturing, and other fields.
Automotive field:
Inconel strip is increasingly widely used in automotive exhaust systems, such as exhaust pipes and turbochargers, as it can withstand the erosion of high temperatures and corrosive gases. In summary, Inconel strip has a wide range of applications, mainly concentrated in areas that require high temperature resistance, corrosion resistance, and high strength, such as aerospace, chemical, medical, electronics, and automobiles.
Inconel strip is increasingly widely used in automotive exhaust systems, such as exhaust pipes and turbochargers, as it can withstand the erosion of high temperatures and corrosive gases. In summary, Inconel strip has a wide range of applications, mainly concentrated in areas that require high temperature resistance, corrosion resistance, and high strength, such as aerospace, chemical, medical, electronics, and automobiles.
CHANGZHOU DLX ALLOY CO, LTD
was established in 2002 and has got Iso9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire,strip, ribbon, bar, tube, plate
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Product Available Size:
Wires: Diameter0.5~7.5mm
Rods:Diameter8.0~200mm
Strip:Thickness0.5~2.5mm, Width5~180mm
Plate: Customized
Tube: Customized
After sale service:
24 hours on alibaba for after sale service
Alibaba trade assurance
Welcome customized size
We are experience factory for OEM&ODM service
Product Available Size:
Wires: Diameter0.5~7.5mm
Rods:Diameter8.0~200mm
Strip:Thickness0.5~2.5mm, Width5~180mm
Plate: Customized
Tube: Customized
After sale service:
24 hours on alibaba for after sale service
Alibaba trade assurance
Packing Deatils
Our nickel based bars are packaged professionally to ensure they remain intact during transportation and storage. Our packagingmaterials have been carefully selected to protect nickel based bars from moisture, pollution, and damage. We can provide different packaging methods according to your requirements, such as wooden boxes, pallets, cardboard boxes, etc., to meet your specifit needs. Our packaging process strictly follows international standards to ensure that the nickel based bars you receive are high-quality and undamaged products. No matter how much quantity or size you need, we can provide you with efficient, reliable, and satisfactory services. Please contact us for more information
