Quick Details
-
Dimensions(L*W*H):
-
1630*780*1300 mm
-
Weight:
-
150 KG
-
Product name:
-

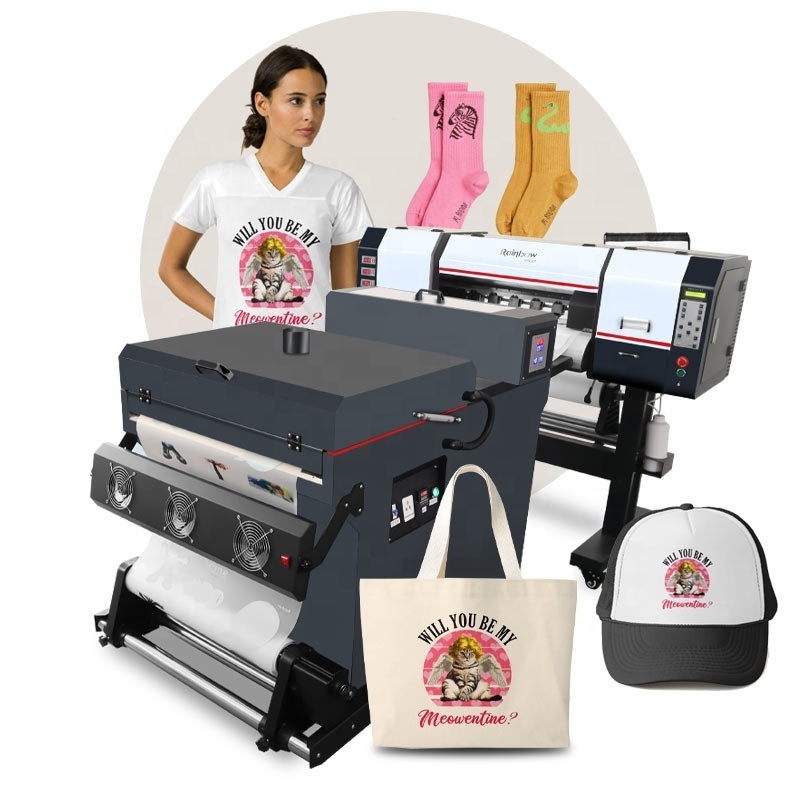

Industrial dtf printer Nova 70
-
Printing Size:
-
70cm
-
Printing material:
-
all fabric products such as T shirt/Bags/hoodies/shoes etc
-
Print head:
-
2pcs I3200/XP600 for dtf printer
-
Ink Color:
-
Pigment ink CMYKW for dtf printer
-
powder shaker:
-
equiped
-
RIP software:
-
Maintop/photoprint
-
Application:
-
Hotels, Garment Shops, Building Material Shops
-
Language:
-
English/Chinese
-
Voltage:
-
220V
-
Marketing Type:
-
New Product 2021
Quick Details
-
Print Dimension:
-
70cm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Rainbow DTF printer
-
Dimensions(L*W*H):
-
1630*780*1300 mm
-
Weight:
-
150 KG
-
Product name:
-
Industrial dtf printer Nova 70
-
Printing Size:
-
70cm
-
Printing material:
-
all fabric products such as T shirt/Bags/hoodies/shoes etc
-
Print head:
-
2pcs I3200/XP600 for dtf printer
-
Ink Color:
-
Pigment ink CMYKW for dtf printer
-
powder shaker:
-
equiped
-
RIP software:
-
Maintop/photoprint
-
Application:
-
Hotels, Garment Shops, Building Material Shops
-
Language:
-
English/Chinese
-
Voltage:
-
220V
-
Marketing Type:
-
New Product 2021
Consumable materials
DTF pigment ink
1000ml per bottle, CMYKW as one set.
Hot Melt Powder
Each bag 1kg.
DTF Film
Each roll 60cm wide and 100m long.
Working process
Application
Product Description
Integrated DTF solution
Compact machine size saves shipping costs and space in your shop. An integrated DTF printing system allows for no-error continuous work between the printer and the powder shaker and brings convenience in relocating and re-installing the printer.
The standard version is installed with
2pcs of Epson XP600
printheads, with the extra options of Epson 4720 and i3200 to meet avariety of requirements for output rate. It also supports
the third printheads for
f
l
uo
re
sc
en
t i
nk.
The
off-line white ink circulation
device automatically turns on after the machine is powered off, keeping you away from the worry of white ink precipitation and printhead clog.
The CNC
vacuum suction table
can fix the film in place stably, and prevent the film from bending and scratching the printheads.
The electric
cap station
automatically raises up/lowers when the carriage returns/leaves, making sure that the printheads are sealed and cleaned well, and avoid clogging. Made of durable aluminum alloy, it's corrosion resistant and will last for years.
Extra-large pressure
roller with increased friction gives better material rolling, making the paper feeding, printing, and taking up more smooth
Three-stage heating
for better attachment between the ink and film, and better powdering, which helps to get more vibrant prints. The temperature control precision is as close as 0.1℃.
5pcs of high-quality
heating tubes
for efficient heating and industrial production. The temperature can be adjusted conveniently in the control panel.
Machine/Package Size
The machine will be packed in solid wooden box, suitable for international sea, air, or express shipping.
The package size:
The printer: 2.2*0.73*0.72m
The printer: 2.2*0.73*0.72m
The powder shaker:1.2*1.04*1.13m
Package weight :
Package weight :
The printer: 180kg
The
powder shaker:300kg
Specification
|
Model
|
Nova 70 DTF Printer
|
|
|
|
Printing width
|
70cm/27.5in
|
|
|
|
Print head
|
XP600/i3200
|
|
|
|
Print head qty.（pcs）
|
1/2/3pcs
|
|
|
|
Suitable media
|
PET film
|
|
|
|
Heating and drying function
|
Front guide plate heating, solidified upper drying, and cold air cooling function
|
|
|
|
Printing speed
|
3-10㎡/h
|
|
|
|
Printing resolution
|
720*4320dpi
|
|
|
|
Print head cleaning
|
Automatic
|
|
|
|
Platform suction adjustment
|
Available
|
|
|
|
Printing interface
|
USB3.0
|
|
|
|
Working environment
|
Temperature 20－25℃
|
|
|
|
Relative humidity
|
40-60%
|
|
|
|
Software
|
Maintop/ PhotoPrint
|
|
|
|
Operating system
|
XP/Win7/Win10/Win11
|
|
|
|
Rewinding function
|
Automatic induction rewinding
|
|
|
|
Rated power
|
250士5%W
|
|
|
|
Machine size
|
1.62*0.52*1.26m
|
|
|
|
Machine weight
|
140kg
|
|
|
