- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HM
-
Model Number:
-
HM-CX1303
-
Max. Current:
-
1A
-
Product name:
-
Fan Switch
-
Material:
-
Copper
-
Color:
-
Customized
-
Function:
-
Off 1 2 3 or off 1 2 momentary
-
Contact:
-
copper plated
-
Warranty:
-
1 Year
-
Rating:
-
1A 250VAC
-
Installation:
-
Underfloor, soldering wire
-
insulation resistance:
-
100MΩ min
-
The keyboard distance:
-
18mm
-
Certification:
-
CE,ROHS,CQC
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HM
-
Model Number:
-
HM-CX1303
-
Max. Current:
-
1A
-
Product name:
-
Fan Switch
-
Material:
-
Copper
-
Color:
-
Customized
-
Function:
-
Off 1 2 3 or off 1 2 momentary
-
Contact:
-
copper plated
-
Warranty:
-
1 Year
-
Rating:
-
1A 250VAC
-
Installation:
-
Underfloor, soldering wire
-
insulation resistance:
-
100MΩ min
-
The keyboard distance:
-
18mm
-
Certification:
-
CE,ROHS,CQC

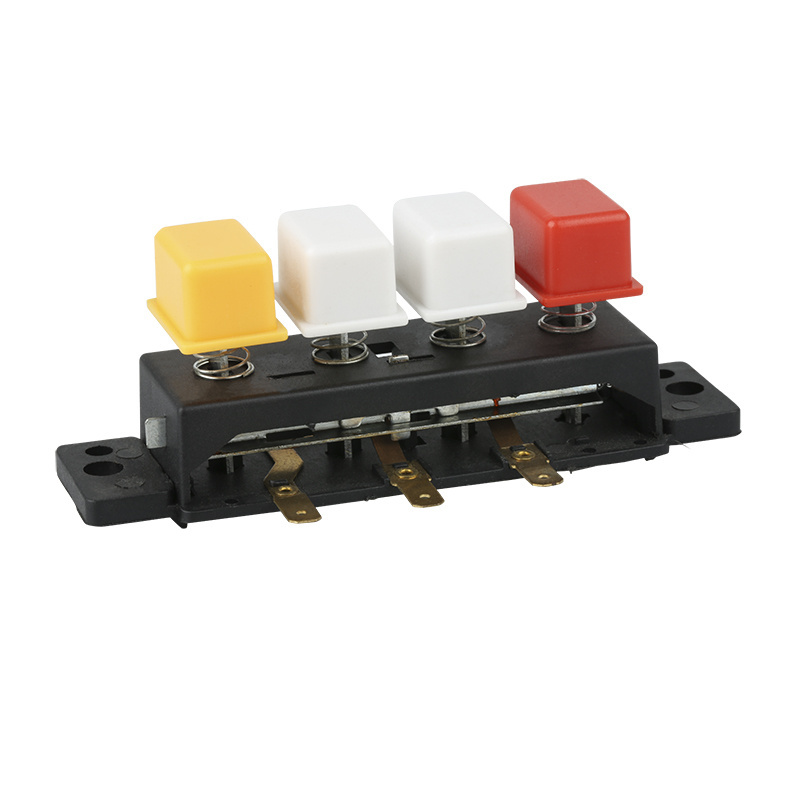

Hot sale 4 position manual changeover push button keyboard piano switch for blender,kitchen appliance 4A 250VAC
Hot sale 4 position manual changeover push button keyboard piano switch for blender,kitchen appliance 4A 250VAC
Product Description
|
Electrical Rating |
1A250V AC, 4A250V AC |
|
Button distance |
18mm |
| Temp(C) | 80°C |
| Circuit/ Functions | OFF L1 L2 L3 montary or off L1 L2 momentary |
| Wiring specifications | 22-18AWG UL1015 |
| The keyboard distance | 18mm |
| materials | PC V0 ABS spring copper |
| Wire Connect |
Soldering wires or Inserting wires (without terminals outside) |
| life time |
10000cycles |
