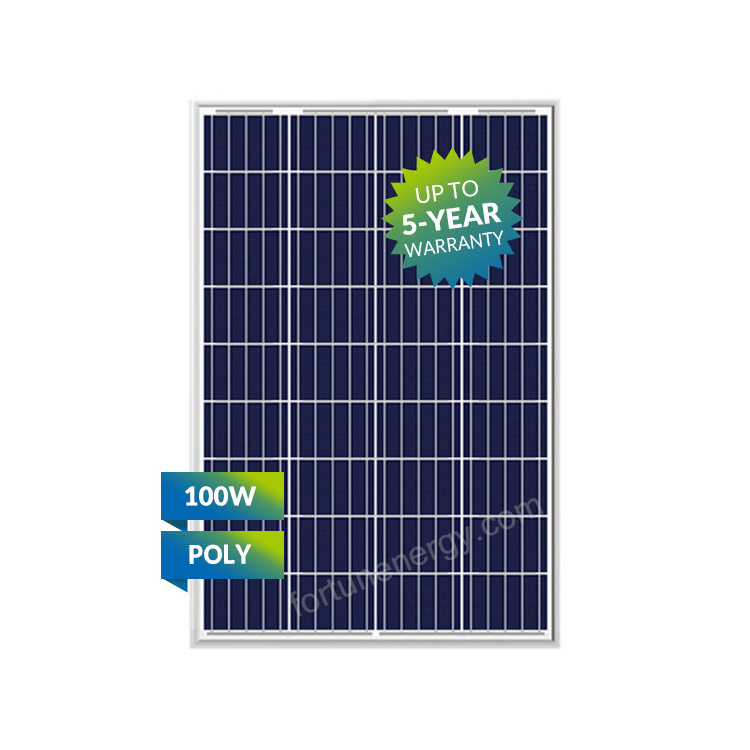

- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
60- month
-
Brand Name:
-
Fortune Energy
-
Model Number:
-
FEMP-100P/49-T2
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1010*670*35mm
-
Cell Grade:
-
A+
-
Frame:
-
Anodized aluminum alloy
-
Glass:
-
Low iron tempered glass
-
Juction-box:
-
IP67
-
Weight:
-
8 kg
-
Compliance:
-
CE/TUV/CEC
-
OEM/ODM:
-
Acceptable
-
Certificate:
-
CE/TUV/CEC
Quick Details
-
Cell size:
-
166mmx166mm
-
Type:
-
PERC
-
Panel Efficiency:
-
100W
-
Warranty:
-
60- month
-
Brand Name:
-
Fortune Energy
-
Model Number:
-
FEMP-100P/49-T2
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1010*670*35mm
-
Cell Grade:
-
A+
-
Frame:
-
Anodized aluminum alloy
-
Glass:
-
Low iron tempered glass
-
Juction-box:
-
IP67
-
Weight:
-
8 kg
-
Compliance:
-
CE/TUV/CEC
-
OEM/ODM:
-
Acceptable
-
Certificate:
-
CE/TUV/CEC
Product Description
We are solar professionals, with more than 10 years in solar panel manufacturing
Small/custom solar panel from 30W up to 200W
MAKE INQUIRY NOW, AND ENJOY NEW CUSTOMER WELCOME DISCOUNT!
|
TECHNICAL CHARACTERISTICS (STC*)
|
|
|
|
|
|
|||||
|
Rated Power
|
100W
|
120W
|
140W
|
160W
|
180W
|
|||||
|
Rated Voltage Vmpp (V)
|
19.15
|
21.50
|
17.10
|
19.40
|
21.50
|
|||||
|
Rated Current Imp (A)
|
5.23
|
5.59
|
8.19
|
8.27
|
8.37
|
|||||
|
Open Circuit Voltage (Voc)
|
22.5
|
25.30
|
20.10
|
22.80
|
25.30
|
|||||
|
Short Circuit Current (Isc)
|
5.87
|
6.24
|
9.05
|
9.15
|
9.25
|
|||||
|
Conversion Efficiency
|
17.5% ~ 18.5%
|
|
|
|
|
|||||
|
Operating Temperature
|
-40°C ~ +85°C
|
|
|
|
|
|||||
|
Maximum Load Capacity
|
5400 Pa
|
|
|
|
|
|||||
|
MECHANICAL DATA
|
|
|
|
|
|
|||||
|
Cell Layout
|
49-T2
|
40-T2
|
48-S
|
49-S
|
40-S
|
|||||
|
Dimensions (mm)
|
1010*670*35
|
1120*670*35
|
1330*670*35
|
1480*670*35
|
1640*670*35
|
|||||
|
Dimensions (inch)
|
39.8*26.4*1.4
|
44.1*26.4*1.4
|
52.4*26.4*1.4
|
58.3*26.4*1.4
|
64.6*26.4*1.4
|
|||||
|
Cable
|
Optional | Customisable length
|
|
|
|
|
|||||
|
Connector
|
Compatible connectors
|
|
|
|
|
|||||
|
Frame
|
Anodised Aluminium Alloy
|
|
|
|
|
|||||
|
Glass Type
|
Low iron tempered 3.2mm thickness
|
|
|
|
|
|||||
|
Junction-box
|
IP65 | IP67 | Customised
|
|
|
|
|
|||||
|
Weight (kg | lbs)
|
8kg/17.6 lbs
|
9 kg/19.8 lbs
|
10kg/22.1 lbs
|
11.5kg/25.4 lbs
|
12.5kg/27.6 lbs
|
|||||
|
WARRANTY
|
|
|
|
|
|
|||||
|
Warranty
|
18-month
|
|
|
|
|
|||||
|
Designed Lifespan
|
> 15-year
|
|
|
|
|
|||||
85W/90W Poly
Standardised with j-box, without cable and connectors
120W/130W
Standardised with j-box, cable and connectors
140W/145W Poly
Standardised with j-box, cable and connectors
180W Poly
Standardised with j-box, cable and connectors
Production Process
We employ advanced equipment and skilled labour, dedicated to stringent quality control, from feeding, soldering,
electroluminescence (UL) test, lamination, framing to final inspection, fully automated with the highest manufacturing standards.
electroluminescence (UL) test, lamination, framing to final inspection, fully automated with the highest manufacturing standards.
Recommend Products
>>Welcome to
contact us
<<
Our Advantages
About Company
Star Projects
Packaging & Shipping
USEFUL NOTES AND TIPS
Unlike other electric products, solar panels' rather larger size and weight require strong packaging and careful handling.
To save cost on whether air delivery or sea shipment, we suggest customers to start with minimum 1 pallet, not only this will save final cost per piece, but also ensure complete protection of the products.
PACKAGING QUANTITY
|
Power Range
|
Carton box
|
Pallet pack
|
|
30W/50W
|
50 pcs per box
|
Variable upon request
|
|
80W - 100W
|
Single pack, 2 pcs pack
|
30 pcs or 100 pcs
|
|
150W - 200W
|
Single pack, 2 pcs pack
|
30 pcs or 100 pcs
|
|
ORDER FULFILLMENT
|
By Air (sample order)
|
By Sea Shipment
|
|
LEAD TIME
|
5 ~ 20 days
|
15 ~ 30 days
|
|
TRANSIT TIME
|
7~15 days
|
10 ~ 45 days
|
FAQ
1. Are you a factory or trading company?
We design and manufacture small solar panel, custom solar panels, and we manufacture standard solar panel via certified factory, not only do we have manufacturing capability, we are also TUV certified party for 3rd-party production supervision.
2. Can you do OEM and ODM?
Absolutely. We offer a wide range of options for conventional panels and non-standard ones, tailored to most on/off-grid solar applications, along with our best pricing.
3. Can you do custom panel?
That is what we do, explain your idea, details, specification, we will lead the process clear and visible to come up with
technical and design solutions.
4. What is your lead time?
For convention panels, usually can be fulfilled between 2~3 weeks.
5. Can you provide sample?
Sure, please contact our representative for arrangement.
6. Why order from Fortune Energy?
· Quality with excellent design;
· Meets major international standards;
· 24-hour respond to any post sales service;
· Accept all major payment condition such as T/T and L/C.
7. What is your advantage?
· Key components are manufactured by our own;
· Combined 30+ years of experience in solar energy;
· Research and Development capability, OEM and ODM;
· Trade Assurance protected.
8. What are your main products?
On/off-grid solar panels, small solar panels, custom solar panels, portable solar power station generator, integrated solar street light/lamp, hybrid wind solar led street light/lamp.
We design and manufacture small solar panel, custom solar panels, and we manufacture standard solar panel via certified factory, not only do we have manufacturing capability, we are also TUV certified party for 3rd-party production supervision.
2. Can you do OEM and ODM?
Absolutely. We offer a wide range of options for conventional panels and non-standard ones, tailored to most on/off-grid solar applications, along with our best pricing.
3. Can you do custom panel?
That is what we do, explain your idea, details, specification, we will lead the process clear and visible to come up with
technical and design solutions.
4. What is your lead time?
For convention panels, usually can be fulfilled between 2~3 weeks.
5. Can you provide sample?
Sure, please contact our representative for arrangement.
6. Why order from Fortune Energy?
· Quality with excellent design;
· Meets major international standards;
· 24-hour respond to any post sales service;
· Accept all major payment condition such as T/T and L/C.
7. What is your advantage?
· Key components are manufactured by our own;
· Combined 30+ years of experience in solar energy;
· Research and Development capability, OEM and ODM;
· Trade Assurance protected.
8. What are your main products?
On/off-grid solar panels, small solar panels, custom solar panels, portable solar power station generator, integrated solar street light/lamp, hybrid wind solar led street light/lamp.
