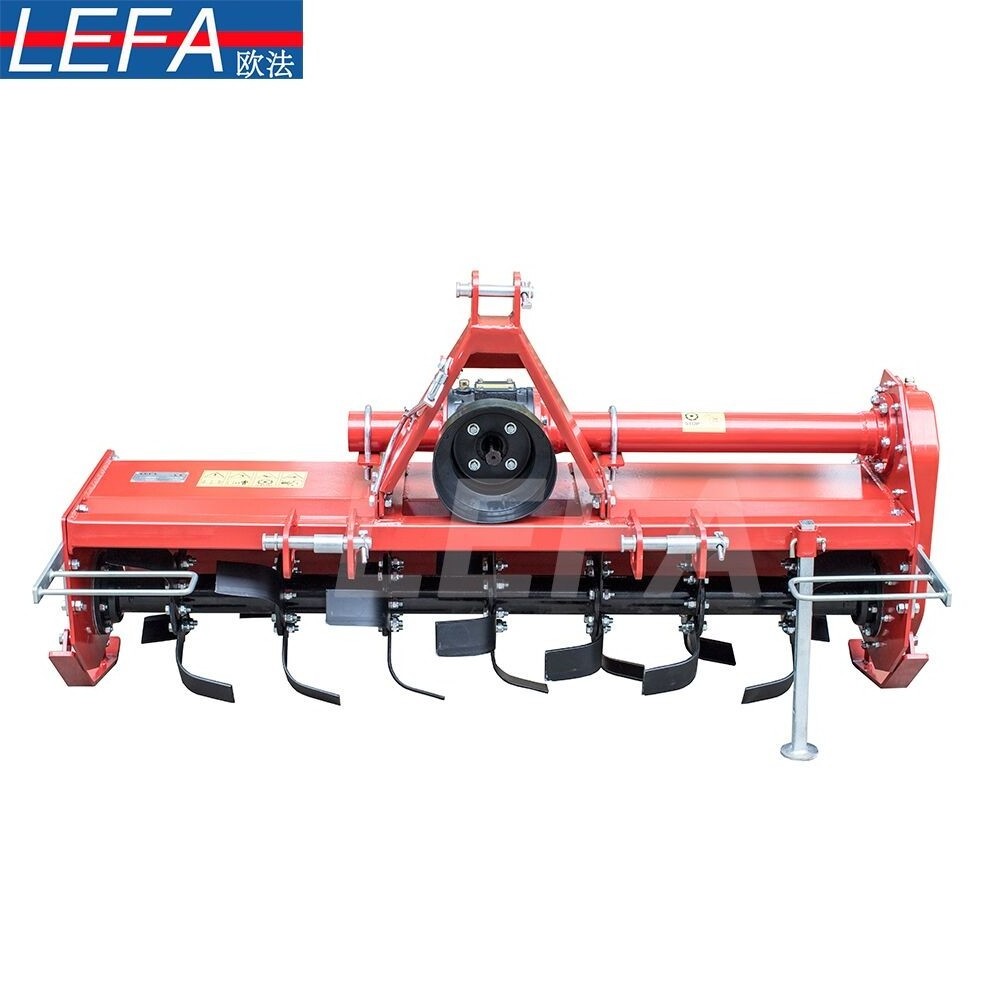

Name: rotary tiller RT-105
1. Transmission: chain driven.
2. The gearbox of rototiller is made of casting iron. Material performance is better. Not easy broken.
3. The suspension plate shape is not easy to deform.
4. Chain device hand adjustable. More easy and reliable.
5. Side protection plates are added onto the rear deflection. This device prevents the soil flying out.
6. The tilling height can be adjustable.
7. The structure of our rototiller is firm and stable.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
145 KG, 145kg
-
Dimension(L*W*H):
-
1350*550*560 mm
-
Product name:
-
Rotary tiller
-
Transmission:
-
chain transmission
-
Power:
-
20-30hp
-
Linkage:
-
3 point linkage
-
Dimension:
-
1350*550*560mm
-
No of blades:
-
28
-
Tilling depth:
-
8-12cm
-
After Warranty Service:
-
Video technical support
Quick Details
-
Use:
-
Tilling
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LEFA
-
Weight:
-
145 KG, 145kg
-
Dimension(L*W*H):
-
1350*550*560 mm
-
Product name:
-
Rotary tiller
-
Transmission:
-
chain transmission
-
Power:
-
20-30hp
-
Linkage:
-
3 point linkage
-
Dimension:
-
1350*550*560mm
-
No of blades:
-
28
-
Tilling depth:
-
8-12cm
-
After Warranty Service:
-
Video technical support
Product Description
|
Model
|
RT-85
|
RT-95
|
RT-105
|
RT-115
|
RT-125
|
RT-135
|
|
Dimension(mm)
|
950*550*560
|
1050*550*560
|
1150*550*560
|
1250*550*560
|
1350*550*560
|
1450*550*560
|
|
Weight(Kg)
|
110
|
115
|
125
|
135
|
145
|
155
|
|
Number of blades
|
16
|
16
|
20
|
24
|
28
|
32
|
|
Cutting Width(cm)
|
850
|
950
|
1050
|
1150
|
1250
|
1350
|
|
Tilling depth(cm)
|
8-12
|
8-12
|
8-12
|
8-12
|
8-12
|
8-12
|
|
PTO Input Speed
|
540r/min
|
540r/min
|
540r/min
|
540r/min
|
540r/min
|
540r/min
|
|
Power Required
|
15-25HP
|
15-25HP
|
15-25HP
|
20*30HP
|
20*30HP
|
20*30HP
|
|
Packing Size(mm)
|
1060*650*660
|
1160*650*660
|
1260*650*660
|
1360*650*660
|
1460*650*660
|
1560*650*660
|
Machine introduction
Main Features
Rotary tiller side protection plates are added onto the rear deflection. This device prevents the soil flying out.
Packing & Delivery
Product name:
Packaging Detail: Iron pallet or wooden cases
Delivery Detail: By sea or By air
1. Waterproof packing with the international export standard by 20ft, 40ftcontainer.
Wooden Case or Iron Pallet
2.The whole set of machines size are large as normal, so we will use Waterproof materials to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box.
We have a professional shipping department, they will try their best to save your container quantity.
