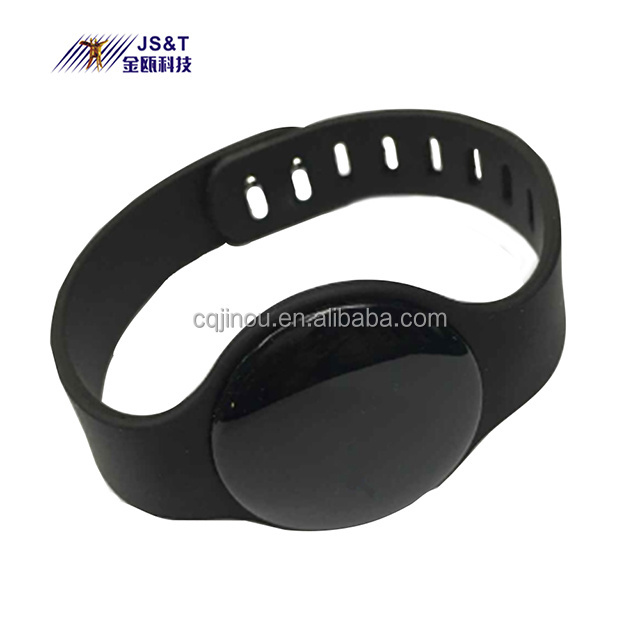

Bracelet/Wristband OEM/ODM UUID Programmable Bluetooth 4.0 BLE beacon waterproof

Bracelet/Wristband OEM/ODM UUID Programmable Bluetooth 4.0 BLE beacon waterproof

FOB Reference Price: Get Latest Price

≥3 Pieces

US $11.2

≥100 Pieces

US $9.9

≥1000 Pieces

US $7.9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Chongqing, China

Brand Name:: JINOU/OEM

Bluetooth specification:: Bluetooth 4.0 ble

Standard:: FCC/CE

Battery:: CR2032

Matching APP:: Android 4.3+, iOS 7.0+

Waterproof Level:: IP44

Antenna:: 50ohm, on board/ PCB antenna

Operation Voltage:: 2.0-3.6V, DC

Security Processor:: AES 128-bit

Quick Details

Chipset:: DA14580, DA14580

Application:: iot

Model Number:: JO-BEC08

Place of Origin:: Chongqing, China

Brand Name:: JINOU/OEM

Bluetooth specification:: Bluetooth 4.0 ble

Standard:: FCC/CE

Battery:: CR2032

Matching APP:: Android 4.3+, iOS 7.0+

Waterproof Level:: IP44

Antenna:: 50ohm, on board/ PCB antenna

Operation Voltage:: 2.0-3.6V, DC

Security Processor:: AES 128-bit

Product Description

Wearable devices depend on intelligent power management to maximize battery life while maintaining a stylish, modern look for functionality.

Beacon technology is a massive step forward in ambient context identification for indoor positioning. Beacons allow for back ground positioning and detection, giving new power to a phone that can make it truly smart.

Jinou Wristband solution utilizes industry-leading low power solutions enabling optimum performance for a wide variety of use cases. JINOU Beacon is compatible with iBeacon, and there are applications for Android ,iOS and google.

Jinou Beacon adopts Bluetooth 4.0 BLE technology, and enable users to detect its UUID signal, RSSI signal, and battery life signal by smart phones. It's available to reset paring code, transmitted power and other customized function, with virtues of quick respond and less latency. Functions can be extended: power switch, power level indicator Led, Buzz alarm etc

Matching APP	Android 4.3+, iOS 7.0+,Google
Firmware	iBeacon	Version4.0/4.1/4.2
Battery model	CR2032	Coin battery, 3.0Vdc, 1 pc
Operation Frequency	2400-2483.5MHz	Programmable
Modulation	Q-QPSK
Working current	46uA	Depends on duty cycle/broadcasting frequency
Broadcasting Frequency	2S	Duty cycle
Output Power	0 dBm	Default setting, programmable
Receiving Sensitivity	-93dBm	High gain mode
Transmission distance	25 meters	BER<0.1%, Open space
Antenna	50ohm	On board/ PCB Antenna
Case Size	29.50mm*10.00mm
Operation Voltage	2.2-3.6V	DC
Security Processor	AES 128-bit
Waterproof Leve	IP44
Instal	indoor & outdoor
Searching Distance	50m
Connecting Distance	10~30m

Beacon Product

Jinou Beacon uses Bluetooth 4.0 BLE technology; it can help you locate indoor. The searching range is up to 50m. Its small size like a coin that can be easily placed indoors. Users can detect its UUID signal RSSI signal,and battery life signal with smart phones. Users can change its paring code, transmitted power, and other customized functions. It has a virtue of quick respond and less Latency. We have made one special type for Apple standard and we can provide test app for Android (version 4.3 and up).
