Quick Details
-
Brand Name:
-
XLC
-
Model Number:
-
YES-2000
-
Product name:
-
Concrete Compression Testing Machine For Sale, Compression Machine
-
Application:
-
Compression
-
Certificate:
-
ASTM
-
Power supply:
-
220V 50Hz
-
Standard:
-
BS.EN.ASTM
-
Function:
-
It is mainly used in compression strength of the concrete
-
Color:
-
Request
-
Weight:
-
1800kgs
-
Certification:
-
CE
Quick Details
-
Warranty:
-
1 year, 12 Months
-
Power:
-
Hydraulic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XLC
-
Model Number:
-
YES-2000
-
Product name:
-
Concrete Compression Testing Machine For Sale, Compression Machine
-
Application:
-
Compression
-
Certificate:
-
ASTM
-
Power supply:
-
220V 50Hz
-
Standard:
-
BS.EN.ASTM
-
Function:
-
It is mainly used in compression strength of the concrete
-
Color:
-
Request
-
Weight:
-
1800kgs
-
Certification:
-
CE

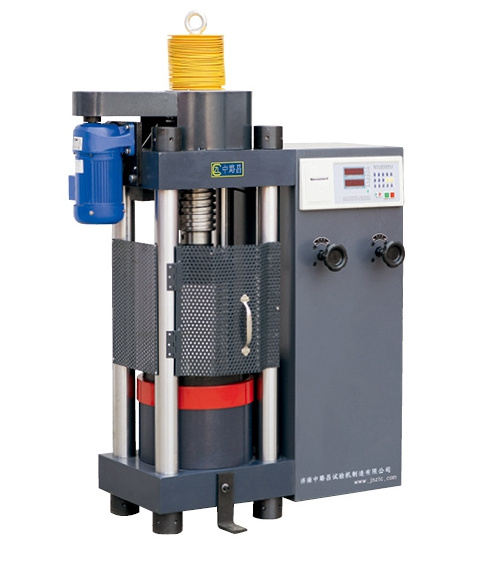

Used Concrete Compression Testing Machine For Sale, Compression Machine
Main Function and Usage
1. It is mainly used in the testing of compression strength of the concrete.
2. Control Method of Testing Rate: Manual Control
Main Specifications and Technical Parameter
|
Maximum Testing Force |
2000kN |
|
Measure Range of Testing Force |
4%~ 100%FS |
|
Relative Accuracy of Value Display of Testing Force |
≤±1% |
|
Adjustment method of Lead Screw |
Electronic |
|
Top and Bottom Pressure Plate Dimension (mm)) |
260×300 |
|
Max.Space of Top and Bottom Pressure Plate(mm) |
320 |
|
Max.Piston Stroke(mm) |
30 |
|
Piston Diameter(mm) |
Φ 250 |
|
Rated Pressure of the Hydraulic Pump(Amp) |
40 |
|
Source Power(kW) |
Three phase 0.75 |
|
Overall Dimension( L*W*H ) (mm) |
800×500×1200 |
|
Weight ( kg ) |
750 |
1. Packing Method: Horizontal Packing to saving moreipping cost.
2. Packing Materials: Plywood Case metting export long transport requirement.
3. Shiping Time: Shipped within 15-20 days after payment.
4. Shipping Way: Shipped by sea or air is available.
