Quick Details
-
Brand Name:
-
BL
-
Model Number:
-
LY-3M, ODM OEM
-
Place of Origin:
-
China
-
Product name:
-
ethernet switch board
-
Dimension:
-
60x49.6x16mm
-
Frame Filtering and Forward Rate:
-
3*10/100 Mbps
-
Transfer Method:
-
Store and Forward
-
External power supply:
-
5-12(V)
-
Power consumption:
-
2W
-
Interface:
-
3X10/100 Mbps auto MDI/MDIX port
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
standard
-
Brand Name:
-
BL
-
Model Number:
-
LY-3M, ODM OEM
-
Place of Origin:
-
China
-
Product name:
-
ethernet switch board
-
Dimension:
-
60x49.6x16mm
-
Frame Filtering and Forward Rate:
-
3*10/100 Mbps
-
Transfer Method:
-
Store and Forward
-
External power supply:
-
5-12(V)
-
Power consumption:
-
2W
-
Interface:
-
3X10/100 Mbps auto MDI/MDIX port
PRODUCT INFORMATION
|
Brand:
|
Canruo
|
|
PCBA size:
|
60x49.6x16mm
|
|
Interface:
|
10/100/1000 Mbps
|
|
External power supply:
|
5-12V
|
|
Transfer Method:
|
Store-and-Forward
|
|
OEM&ODM:
|
yes
|
|
Applicable:
|
network cabling and cabling distance extend of the network cabling boxes, multimedia cabling boxes and other
|
Product Description:

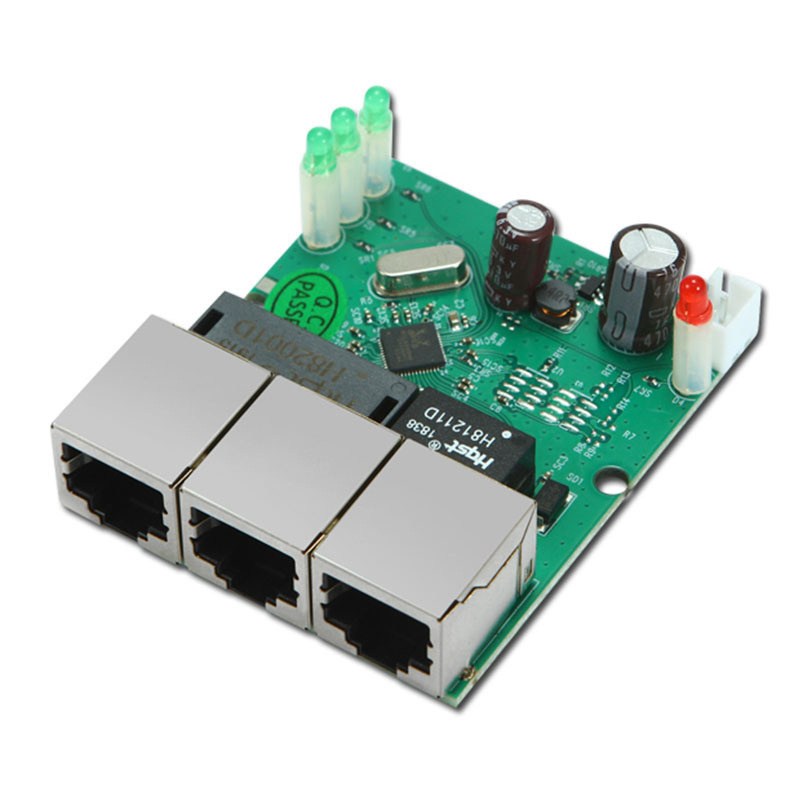

This is a high performance 3-port 10/100Mbps Ethernet switch module. It provides a simple network connection to your workgroup or server, which is convenient for you to plug and play. With this flexible non-blocking architecture, users can use it without the limitation of bandwidth and media network. The 3-port 10/100Mbps Ethernet switch module supports auto-negotiation for each switch port.
Provides an economical, practical and cost-effective 10/100Mbps office sharer for broadband LAN, and provides stable performance and high-throughput data transmission network for every end user connected to the LAN; each port adopts store-and-forward mode, which can Effectively isolate broadcast storms, reduce errors and packet errors, and avoid network congestion and network conflicts. All sides of this switch
The port supports half-duplex flow control and full-duplex back pressure standards to improve the compatibility of bandwidth servers and network protocols. In addition, LED indication can diagnose the operating status of individual ports and the entire system, and the product is energy-saving and environmentally friendly.
application:
This switch module is dedicated to the Ethernet connector for data extension, wiring distance extension, and data conversion. The Mini shape design is favored by many domestic and foreign customers.
product features:
Compliant with IEEE 802.3 and IEEE 802.3u standards
3-port 10/100Mbps auto-adaptive RJ45 ports, support auto-flip (Auto-MDI/MDIX)
All ports support IEEE 802.3x half-duplex flow control and full-duplex backpressure mode
Non-blocking switching architecture, full wire-speed forwarding and maximum throughput filtering of packets
Support MAC address learning, automatically adjust the transmission method and transmission rate
LEDs indicate power and link/activity for easy working status and troubleshooting
Mini wiring size, PCBA size: 60x49.6x16mm
External power supply DC5V1A,
Specifications: Standard IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3x Flow Control
Protocol: CSMA/CD
Forwarding rate: Ethernet 10Mbps (half duplex) 20Mbps (full duplex), 10Mbps: 14,880pps
Fast Ethernet 100Mbps (half duplex), 200Mbps (full duplex), 100Mbps: 148800pps
Topology: Star
Network media: 10Base-T: Category 3 or above UTP (≤100m) 100Base-TX: Category 5 UTP (≤100m)
Number of ports: 3 10/100M Ethernet ports
Cascading: All ports can be used as UP-LINK ports
Forwarding Mode: Store and Forward
Temperature: Operating Temperature: -20 C~40 C (32 F~104 F) Storage Temperature: -40 C~70 C (-40 F~158 F)
Humidity: Working humidity: 10%~90% non-condensing Storage humidity: 5%~95% non-condensing
LED indication: 1 power light (power light: red light) 3 data light (Link/Act: green light)
Product size: (W x H x D) 60x49.6x16mm
Application power supply: external power supply DC 5V/1A
Operating system: Support Windows /MAC OS/Netware/Linux operating system
