Quick Details
-
Rated Input Voltage:
-
220 V
-
Rated Output Current (MIG):
-
315A
-
Rated Output Voltage (MIG):
-
24 V
-
Welding Current/Voltage Range:
-
50-315
-
Wire Feeding Speed:
-
15 m/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LINGBA
-
Dimensions:
-
555*285*440mm
-
Use:
-
Welding
-
Weight (KG):
-
12.5 KG
-
Year:
-
2023
-
technology:
-
5In1 Function, IGBT, 15kg
-
Voltage:
-
Single phase: 220V
-
Real current:
-
200A
-
Input Frequency(Hz):
-
50/60HZ
-
Non-load Voltage(V):
-
75V
-
MIG Flux Wire diameter(mm):
-
0.8~1.0mm
-
MIG Solid wire diameter(mm):
-
0.8~1.0mm
-
MMA Electrode:
-
1.6~5.0mm
-
Wire weight per Roll(kg):
-
15kg
-
Quick joint Size(mm):
-
35-50
Quick Details
-
Wire Melting Type:
-
Short Circuit Transfer
-
Max. Load Power Capacity:
-
6
-
Rated Duty Cycle @40°C (MIG):
-
60%
-
Rated Input Voltage:
-
220 V
-
Rated Output Current (MIG):
-
315A
-
Rated Output Voltage (MIG):
-
24 V
-
Welding Current/Voltage Range:
-
50-315
-
Wire Feeding Speed:
-
15 m/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LINGBA
-
Dimensions:
-
555*285*440mm
-
Use:
-
Welding
-
Weight (KG):
-
12.5 KG
-
Year:
-
2023
-
technology:
-
5In1 Function, IGBT, 15kg
-
Voltage:
-
Single phase: 220V
-
Real current:
-
200A
-
Input Frequency(Hz):
-
50/60HZ
-
Non-load Voltage(V):
-
75V
-
MIG Flux Wire diameter(mm):
-
0.8~1.0mm
-
MIG Solid wire diameter(mm):
-
0.8~1.0mm
-
MMA Electrode:
-
1.6~5.0mm
-
Wire weight per Roll(kg):
-
15kg
-
Quick joint Size(mm):
-
35-50

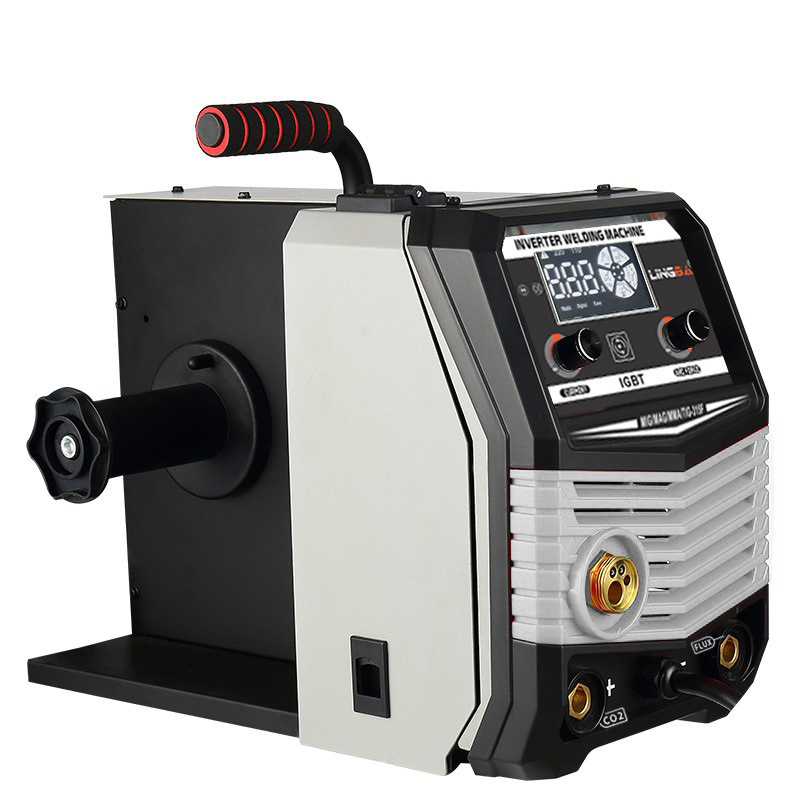

| Model | MIG/MAG/MMA/TIG-315F |
| Type | 15kg IGBT |
| Voltage | Single phase: 220V |
| Rated Input Power Capacity(KVA) | 6kw |
| Input Frequency(Hz) | 50/60hz |
| Non-load Voltage(V) | 75V |
| Output current range(A) | 50-315A |
| Rated Duty Cycle(%) | 60% |
| Efficiency(%) | 85% |
| Class of Insulation | F |
| Protection class of case | IP21 |
| MIG Flux Wire diameter(mm) | 0.8~1.0mm |
| MIG Solid wire diameter(mm) | 0.8~1.0mm |
| MMA Electrode | 1.6~5.0mm |
| Wire weight per Roll(kg) | 5kg or less5kg |
| Quick joint Size(mm) | 35-50mm |
| Input power cable(m) | 1.8m |
| N.W./G.W.(kg) | 10.5kg~12.5kg |
| Machine Size(LxWxH mm) | 460*220*360mm |
| Accessories | 1.8M 25mm2 200A holder |
| 1.2M 25mm2 300A clamp | |
| 3m 24AK Torch | |
| Brush, Mask, Manual | |
| GAS/GASLESS/MMA/MAG/LIFT-TIG | |
| Features | Gasless+Flux Wire |
| Gas+Solid Wire | |
| 5.0mm Electrode stopless work |
