Quick Details
-
Model Number:
-
BL-88T
-
Type:
-
Ophthalmic Optical Equipments
-
name:
-
slit lamp
-
bulb:
-
led bulb
-
model number:
-
BL-88T
-
eyepiece:
-
12.5x
-
objective:
-
10x16x25x
-
light source:
-
led bulb
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
redsun
-
Model Number:
-
BL-88T
-
Type:
-
Ophthalmic Optical Equipments
-
name:
-
slit lamp
-
bulb:
-
led bulb
-
model number:
-
BL-88T
-
eyepiece:
-
12.5x
-
objective:
-
10x16x25x
-
light source:
-
led bulb

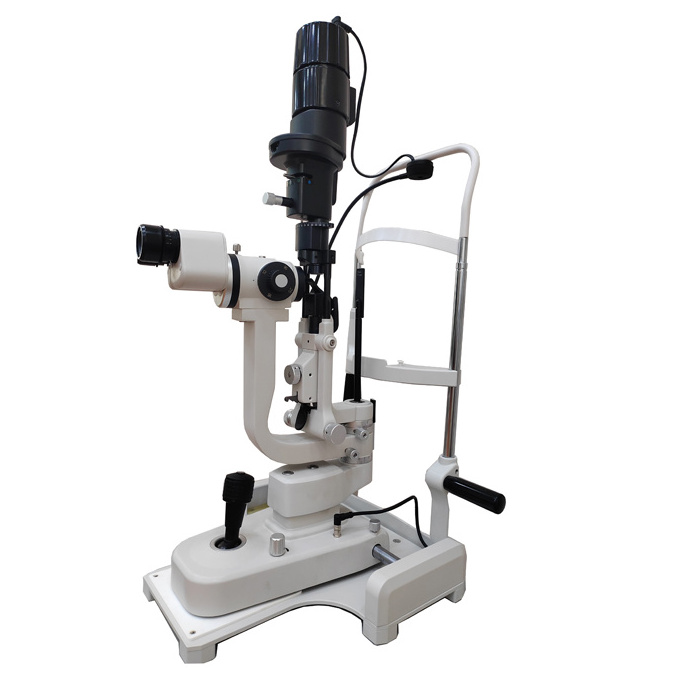

Ophthalmic Slit lamp
BL-88T
LED bulb
3 step magnifications , 10X 16X 25X
wood board, (metal board optional)
Filter wheel can be adjusted by 3600 ,increases 3 more filters with more function
(patent number:2010101380635)
This slit lamp uses the Converging Stereoscope type,and drum rotation .
With 5 magnification ,when reaching 25X magnification ratio ,the blood flow situation can be observed
clearly from the blood vessels of the sclera .
With big light spot diameter ,the slit width can reach 14 mm ,observing the eyes more comprehensively
By using multilevel coating process deal with the Optical glass, imaging becomes clear and bright and
the view is widely open
Using importing illumination bulb ,with less heat ,brighter and light spot is more well-balanced .
With high eyespots, large eyepiece, good stereo sense ,convenient to operate when observing .
Humanized designed for Armrest of the chin rest ,convenient for the patient
All the connector interface corresponds with the international accessories ,easy to update the system.
Technical Data
| property of slit lamp | microscope type | galilean stereoscopic microscope |
| magnification selection | 5steps by drum rotation | |
| eyepiece | 12.5x | |
| magnification ratio (field of view) |
10 × ( φ 22.5 ), 16× ( φ 14mm ), 25× ( φ 8.8mm ), |
|
| PD adjustment | 52mm ~ 80mm | |
| Diopter Adjustment | + 5 D ~ -5 D | |
| base | Left and ritht move | 1 1 0mm |
| Dolly move | 9 0mm | |
| Up and down move | 30 mm | |
| chin rest | Up and down move | 8 0mm |
| Fixation lamp | red LED | |
| Property of illumination | Slit width | 0 ~ 1 4 mm continuous (at 14mm,slit becomes a circle) |
| Slit height | 1 ~ 1 4 mm continuous | |
|
Slit angle Slit beveling Light spot diameter |
0 ~ 180 0 continuous 0 , 5 0 , 15 0 , 2 0 0 14mm , 10mm , 5mm , 3mm , 2mm , 1mm , 0.2 mm , 1mm 1-14mm continuous |
|
|
Filter |
Heat absorption ,Grey ,Red-Free ,Cobalt Blue ,Green ,yellow ,red | |
|
Illumination bulb |
led lamp | |
| power |
Input voltage frequency Power consuption |
220V 50H 6 8 VA |
| Weight and size |
N.W |
16kg |
| Main dimension | 550mm( L ) × 430mm ( W ) × 780mm ( H ) |
WOOD BOARD METAL BOARD
