Standard: Standard & Custom
Working pressure: ≤0.1MPa;
Rotation speed: ≤40m/s;
Working temperature: -35~+220°C (depending on material selection)
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
Custom
-
Material:
-
NBR FKM
-
Standard or Nonstandard:
-
Standard
-
Speed:
-
0-30 m/s
-
Operating temperture:
-
-30 to +120 ℃
-
Application:
-
Hydraulic Cylinder
-
Hardness:
-
30-90 Shore A
-
Work Pressure:
-
0-0.03 Mpa
-
Packing:
-
Plastic Bags +Carton
-
MOQ:
-
500 pcs
Quick Details
-
Size:
-
Custom Size, Standard Or Non-standard, OD*ID*High
-
Place of Origin:
-
Hebei China
-
Brand Name:
-
TONGDA
-
Model Number:
-
Custom
-
Material:
-
NBR FKM
-
Standard or Nonstandard:
-
Standard
-
Speed:
-
0-30 m/s
-
Operating temperture:
-
-30 to +120 ℃
-
Application:
-
Hydraulic Cylinder
-
Hardness:
-
30-90 Shore A
-
Work Pressure:
-
0-0.03 Mpa
-
Packing:
-
Plastic Bags +Carton
-
MOQ:
-
500 pcs
|
|
|
|
|
|||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
Material: Nitrile rubber (NBR)
Hardness: Shore A about 70
Operating temperature: -40°C~+100°
Medium: Mineral oil, air, water, emulsion, grease
Water seal details
Limiting oil leakage in bearings
VARIETY,QUALITY ASSURANCE
22 years of product manufacturing experience
Integrity management, real materials

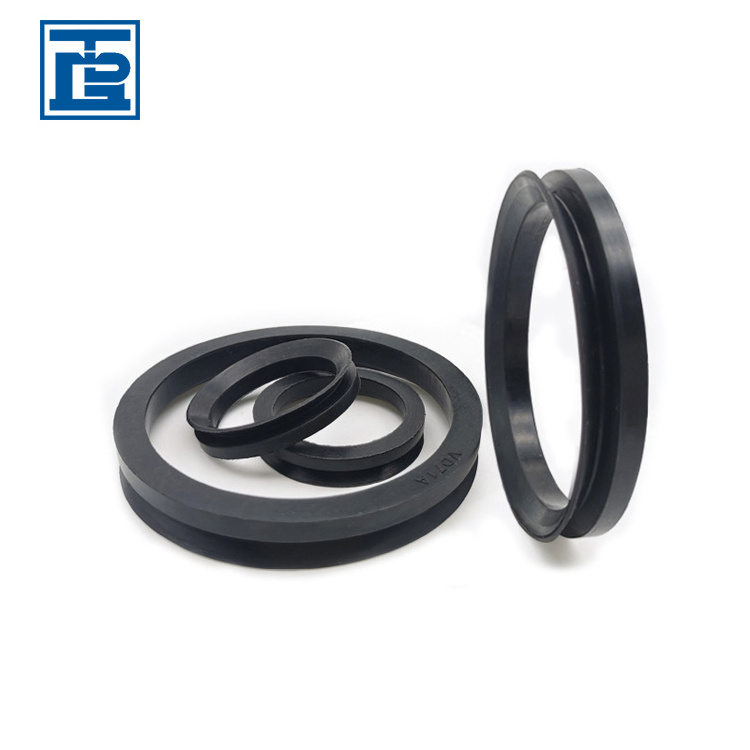

V-rings seal axially against a counter-face. This type of seal has proved to be reliable and effective against dust, dirt, water and oil splash and other media.
V-ring shaft seals provide effective protection against dry and wet contamination. The V-ring also reduces wear and extends the service life of the oil seal and bearings. The V-ring also performs well in dry running applications. Because it is all rubber and very elastic, it can be stretched over flanges or other components for easy installation with very little dis-assembly.
V-A
NBR/FKM Rubber Va Type Shaft Use V-Ring Water Seals Type A V-rings with bevel back serves as a pressure less, axial rod seal with a very short mounting length, which is clamped on a shaft. The flexible sealing lip seals a counterface at a right angle to the shaft preventing dirt, dust and splash to enter the construction. Available in the widest range of sizes from .110″ (2.7mm) shaft to 79.530″ (2020mm) nitrile and fluoroelastomer. Ideal for protecting gearboxes, electric motors and drives.
NBR/FKM Rubber Va Type Shaft Use V-Ring Water Seals Type A V-rings with bevel back serves as a pressure less, axial rod seal with a very short mounting length, which is clamped on a shaft. The flexible sealing lip seals a counterface at a right angle to the shaft preventing dirt, dust and splash to enter the construction. Available in the widest range of sizes from .110″ (2.7mm) shaft to 79.530″ (2020mm) nitrile and fluoroelastomer. Ideal for protecting gearboxes, electric motors and drives.
V-S
NBR/FKM Rubber Va Type Shaft Use V-Ring Water Seals Type S V-rings with bevel back serves as a pressure-less, axial rod seal which is clamped on a shaft. The flexible sealing lip seals a counterface at a right angle to the shaft, preventing dirt, dust and splash to enter the construction. Available in sizes from .180″ (4.5mm) shaft to 8.270″ (210mm). Commonly used in agricultural and automotive applications.
NBR/FKM Rubber Va Type Shaft Use V-Ring Water Seals Type S V-rings with bevel back serves as a pressure-less, axial rod seal which is clamped on a shaft. The flexible sealing lip seals a counterface at a right angle to the shaft, preventing dirt, dust and splash to enter the construction. Available in sizes from .180″ (4.5mm) shaft to 8.270″ (210mm). Commonly used in agricultural and automotive applications.
V-E
Water Seal Rubber V-seal V Ring VA VS VL Rotary Shaft Seal Ring Type E V-rings has a straight back that serves as an unpressurized axial rod seal with a very small mounting length and is fixed to the shaft. The flexible lip seals an opposing face at a right angle to the axis preventing dirt, dust and splashes from entering the construction. The V-Ring V-E is designed for heavy use and is applied in situations where larger axial tolerances are
required. This profile is delivered for axles from Ø450 to Ø2010 mm.The V-Ring V-E are heavy-duty, large-diameter V-ring seals that also allow for the largest axial displacements. They are commonly used as side seals and in rolling mills to exclude dirt and water. The V-Ring V-E styles can be stretched up to 2 1/2 times their original diameter as well.
Water Seal Rubber V-seal V Ring VA VS VL Rotary Shaft Seal Ring Type E V-rings has a straight back that serves as an unpressurized axial rod seal with a very small mounting length and is fixed to the shaft. The flexible lip seals an opposing face at a right angle to the axis preventing dirt, dust and splashes from entering the construction. The V-Ring V-E is designed for heavy use and is applied in situations where larger axial tolerances are
required. This profile is delivered for axles from Ø450 to Ø2010 mm.The V-Ring V-E are heavy-duty, large-diameter V-ring seals that also allow for the largest axial displacements. They are commonly used as side seals and in rolling mills to exclude dirt and water. The V-Ring V-E styles can be stretched up to 2 1/2 times their original diameter as well.
V-L
NBR/FKM Rubber Va Type Shaft Use V-Ring Water Seals Type L V-rings with straight back serves as a pressure-less axial rod seal with a very small mounting length, which is clamped on the shaft. The flexible sealing lip seals a counterface at a right angle to the shaft preventing dirt, dust and splash to enter the construction.
NBR/FKM Rubber Va Type Shaft Use V-Ring Water Seals Type L V-rings with straight back serves as a pressure-less axial rod seal with a very small mounting length, which is clamped on the shaft. The flexible sealing lip seals a counterface at a right angle to the shaft preventing dirt, dust and splash to enter the construction.
VARIOUS MATERIALS TO CHOOSE FROM
For more material requirements,
please contact customer service for customization，
CLICK HERE
We have implemented a quality and management system that meets the strictest standards. We have trade department, engineering department, production department, after-sales service department, more than 50 inspectors to control the quality, test each batch of materials before use, to ensure whether the key physical characteristics meet the requirements 100% inspection before shipment. We strive to continuously improve our products and services to meet or exceed the needs of different customers.
Our company provides a variety of products, including standard and metric international standard PU piston seals, PU piston rod seals, hydraulic & pneumatic seals, polyurethane & plastic custom parts, coupling elastic buffers, O-rings, non- Standard rubber custom parts, etc. We not only supply standard specification parts, but also produce moulded machined parts according to customer's drawings and samples. We have the expertise and equipment to deliver the product. We arrange processing and production strictly according to each customer's needs: quality, specification, size and quantity.
1. Standard packing: inner packing PP bag, marked with batch number, name, material, size, quantity and delivery date. Outer packing carton, then put on pallet. All signed with our logo. Customized Packaging: Can be packaged according to your needs.
2. Shipping: Fast delivery by air, FOB, CFR, with multiple delivery methods, such as Door-to-Door, DHL, FedEx, EMS, DEX, TNT express, air and sea. We have several courier accounts and the fees are very cheap.
3. Delivery time: if in stock, the product will be delivered in 1-2 days; if you want your design, it may take 3-5 days, depending on your design content; timely delivery if notified of annual requirements goods.
4. Payment method: T/T ,Western Union,Paypal,Money Gram ,L/C at sight,etc.
1. Any inquiry will be replied within 12 hours.
2. Professional manufacturer, you are always welcome to visit our factory and company.
3. OEM service is welcome, we can help you print your logo, company information, etc. on our products and packaging.
4. High quality, stylish design, reasonable and competitive price and fast delivery time.
5. Fast after-sales service.
6. Protect your sales area, design concept and all your private information.
7. Free samples are available for your inspection.
8. If there is a problem with the order item, we will solve it within 24 hours and will replace the product for you free of charge.
Q 1. What's the payment term?
A 1: We accept T/T 30% deposit and 70% balance against copy of B/L or L/C at sight, West Union,VISA,Paypal is also accepted.
Q 2:Can you supply different color materials?
A 2: Yes, we can produce custom molded rubber and silicone rubber products in different colors, the color code will be required in case of an order.
Q 3: Do you have the products in stock?
A 3: Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order.
Q 4: What is the life expectancy of the rubber seal?
A 4: Product life is contingent upon many factors, including environment, cycles, pressure, etc. Longcheng Rubber cannot predict seal life under all the varying conditions of operation. Accellerated life testing may be performed by customer to determine expected life, but must be conducted in dynamic application.
Q 5：what can you buy from us?
A 5：Mould,O Ring,Non-standard Custom Sealing Ring,Silicone Kitchenware,Auto Parts Rubber Parts
Q 6：why should you buy from us not from other suppliers?
A 6：The company specialized research and development, the productionrubber, the silica gel, the fluorine rubber o seal ring. It has 10 CNC machines and 40 vulcanizing machines. Complete product specifications, through the ISO9001 quality system certification.
