Quick Details
-
Weight:
-
3500 kg
Quick Details
-
Machine Type:
-
Batching machine
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HENGYOU
-
Weight:
-
3500 kg
|
Item
|
PLD800
|
PLD1200
|
PLD1600
|
PL2400
|
|
Weighing bucket capacity
|
800L
|
1200L
|
1600L
|
2400L
|
|
Hopper capacity
|
3x3m3
|
3x5m3
|
2x4.5m3
|
3x12m3
|
|
Production rate
|
48m3/h
(dry material)
|
56m3/h
(dry material)
|
80m3/h
(dry material)
|
120m3/h
(dry material)
|
|
Batching accuracy
|
±2%
|
±2%
|
±2%
|
±2%
|
|
Maximum weighing value
|
2000kg
|
2000kg
|
3000kg
|
4000kg
|
|
Ingredients species
|
2-3 species
|
2-4 species
|
2-4 species
|
2-4 species
|
|
Feeding height
|
2400mm
|
2900mm
|
2900mm
|
4250mm
|
|
Feeder belt speed
|
1m/s
|
1m/s
|
1m/s
|
1.6m/s
|
|
Power
|
12kw
|
12kw
|
9kw
|
7.5kw
|
|
Total weight
|
3670kg
|
4500kg
|
4000kg
|
8500kg
|
|
Dimensions (LxWxH)
|
8400x1580x
2780mm |
9400x2020x
3400mm |
6500x2270x
3400mm |
13200x3250x
4000mm |

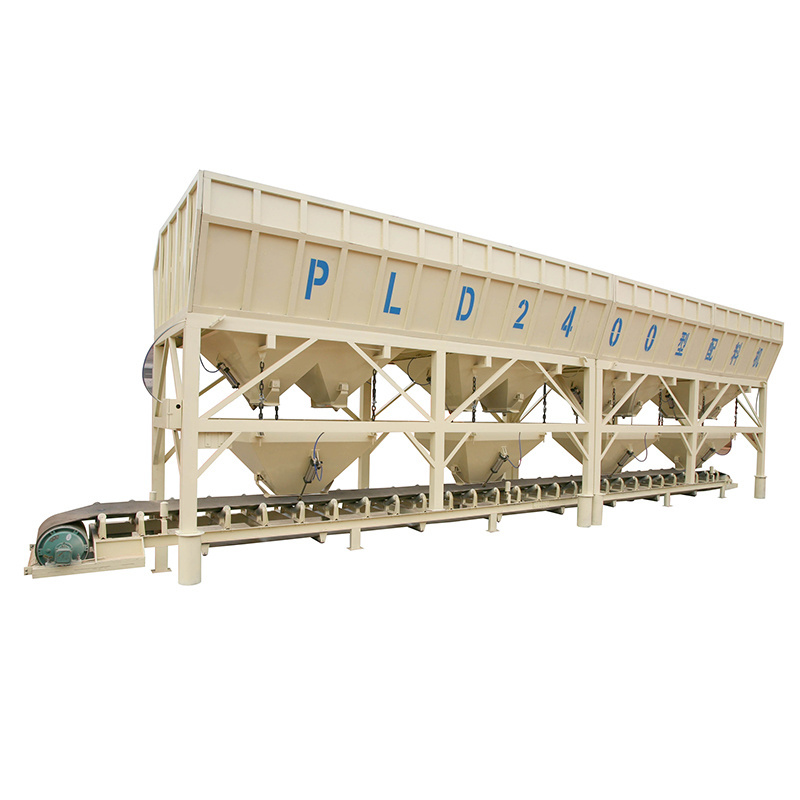

The concrete batching machine is a sand and gravel batching device using a loader or a belt conveyor. It can be used with cement silo sand other equipment. It can be used with more than three kinds of materials. It can be used with various types of mixers and other measuring devices to form a fully automatic and semi-automatic mixing station, this machine can effectively ensure the accuracy of the mixing ratio of cement, sand, stones, etc, and the use of electronic weighing system, to further improve the accuracy of weighing. The top panel can be lowered or removed as needed, which can greatly reduce the labor intensity of the loading part and increase the convenience of construction.
Advantages:
1,Suitable for variety building material storage
2,Accurate weighing and can adjust material ratio
3,Easy to operate,no professional required
4,Can save 4-6 feeding workers,help you to save must cost
Capacity and hopper quantity can be customized !
1,Suitable for variety building material storage
2,Accurate weighing and can adjust material ratio
3,Easy to operate,no professional required
4,Can save 4-6 feeding workers,help you to save must cost
Capacity and hopper quantity can be customized !
