Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
PS19B-T10
-
IP level:
-
IP68
-
Product name:
-

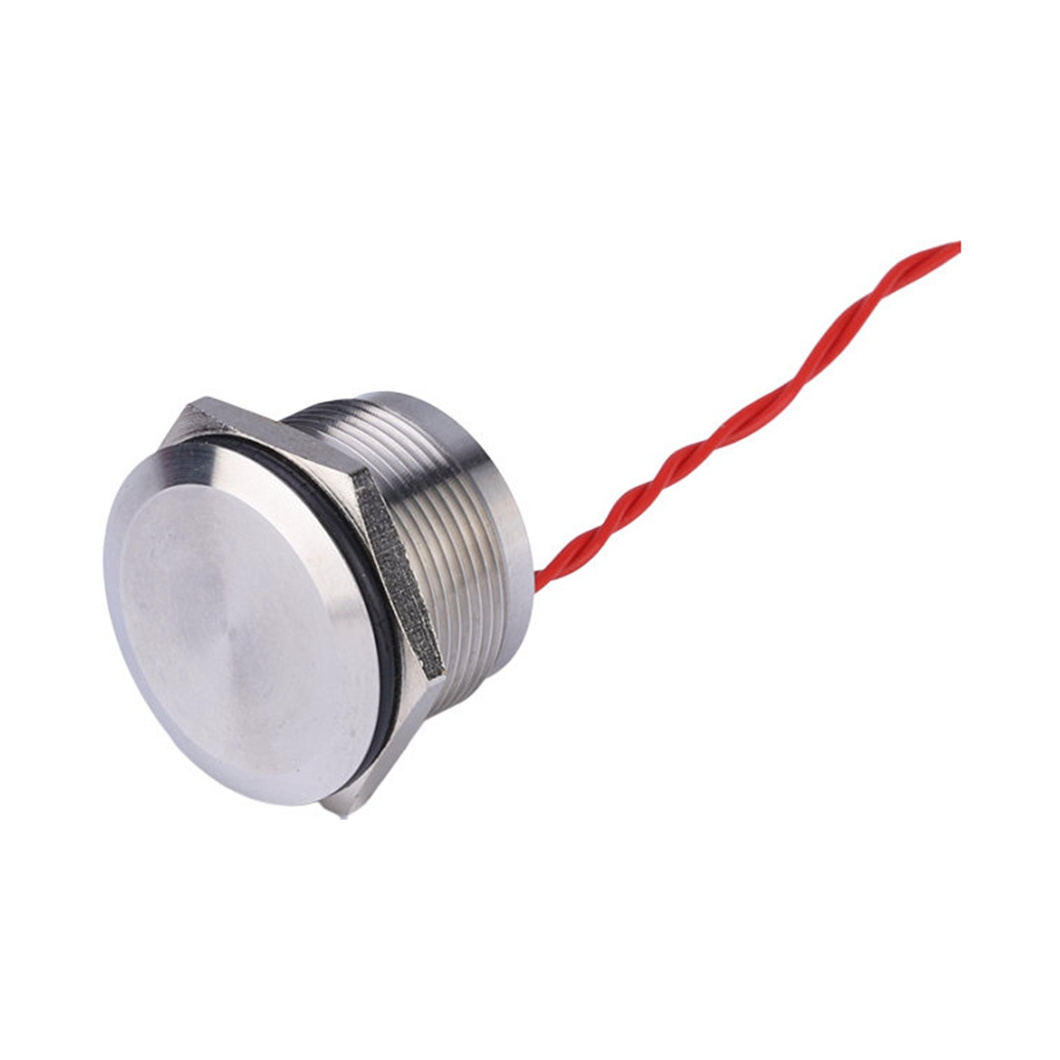

Momentary Piezo Push Button Switch
-
Mounting hole diameter:
-
19mm
-
Front head:
-
Chamfer head
-
Terminal:
-
Wired Lead 150mm long
-
Operation type:
-
Momentary
-
Material:
-
Stainless Steel/Aluminum Alloy
-
Lamp color:
-
Blue(or Red,green,yellow,orange,white,bi-color)
-
Lamp voltage:
-
12V(or 3V/5V/24V)
-
Certification:
-
CE RoHS
Quick Details
-
Protection Level:
-
IP68
-
Max. Current:
-
2A, 3A
-
Max. Voltage:
-
24VDC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
PS19B-T10
-
IP level:
-
IP68
-
Product name:
-
Momentary Piezo Push Button Switch
-
Mounting hole diameter:
-
19mm
-
Front head:
-
Chamfer head
-
Terminal:
-
Wired Lead 150mm long
-
Operation type:
-
Momentary
-
Material:
-
Stainless Steel/Aluminum Alloy
-
Lamp color:
-
Blue(or Red,green,yellow,orange,white,bi-color)
-
Lamp voltage:
-
12V(or 3V/5V/24V)
-
Certification:
-
CE RoHS
Details Images
Details Images
Products Description
Products Description
22mm touch switch 24v waterproof IP68 latching anti vandal push button switch
Product description Electrical Function
Features: piezo switch
Operation type: Momentary
Voltage: 3 – 24V AC/DC
Switching Current: 2A(max 5A)
Illuminated Option: Ring LED Illuminated
Voltage: 3 – 24V AC/DC
Switching Current: 2A(max 5A)
Illuminated Option: Ring LED Illuminated
Head shape:
Flat Height 1.3 4.5 3.0mm Concave Height 1.3 4.5 3.0mm Cant Height 1.3 4.5 3.0mm
Mechanical Properties
Material: Stainless Steel or Aluminum
IP Protection : IP68
Anodize Colors : Blue (Red, Green, Yellow, White, Purple, available)
Operating Temperature -40°C to 75°C (Momentary Only)
Mechanical Properties
Material: Stainless Steel or Aluminum
IP Protection : IP68
Anodize Colors : Blue (Red, Green, Yellow, White, Purple, available)
Operating Temperature -40°C to 75°C (Momentary Only)
Note: If you need Customized actuator color, please inform us by mail, thanks!
|
Product Name
|
IP68 Waterproof Piezo Switch
|
|
Mounting Hole
|
12/ 16/19/22/25/28/30/40mm
|
|
Operation Type
|
Momentary / Latching
|
|
Switch Combination
|
1NO/ 1NO1NC
|
|
Actuator Shape
|
Flat / High /Domed head/Concave/Cant
|
|
Cable Length
|
300mm long
|
|
Current
|
2A
|
|
Enclosure Material
|
Stainless Steel 316L (or Silver Aluminum oxidized)
|
|
Operating Force
|
6 to 15N
|
|
Life Expectancy
|
50 Million cycles
|
|
Waterproof Degree
|
IP68
|
|
Operating Temperature
|
-40°C ~+75°C
|
|
Customized colored housing or Connector
|
Acceptable and with fast shipping
|
|
Accessories
|
Nut, Rubber Waterproof
|
|
What You Get
|
1X Piezo Switch:
22MM Momentary, Stainless steel |
Note: If you need Customized LED, please inform us by mail:
1. What Led Color? 2. What Led Voltage?
1. What Led Color? 2. What Led Voltage?
