Name: Engine
Brand: Changchai
Original: China
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits.
Whether
it's your perfectly manicured and landscaped grounds, your straight and even fence line, your bountiful garden, your smooth gravel driveway, or your well-kept horse stalls, you take pride in doing a job well done. CP Tractor shares your passion of doing it right. This is why we design and manufacture a line of compact tractors that combines superior performance, more functional features as standard equipment and better value as compared to other brands.
Jinma Tractor
offers a wide range of compact tractors in various horsepower and chassis sizes that provides land owners, small farmers (typically with 30 acres or less) and commercial users the ability to select a model perfectly suited for their needs.

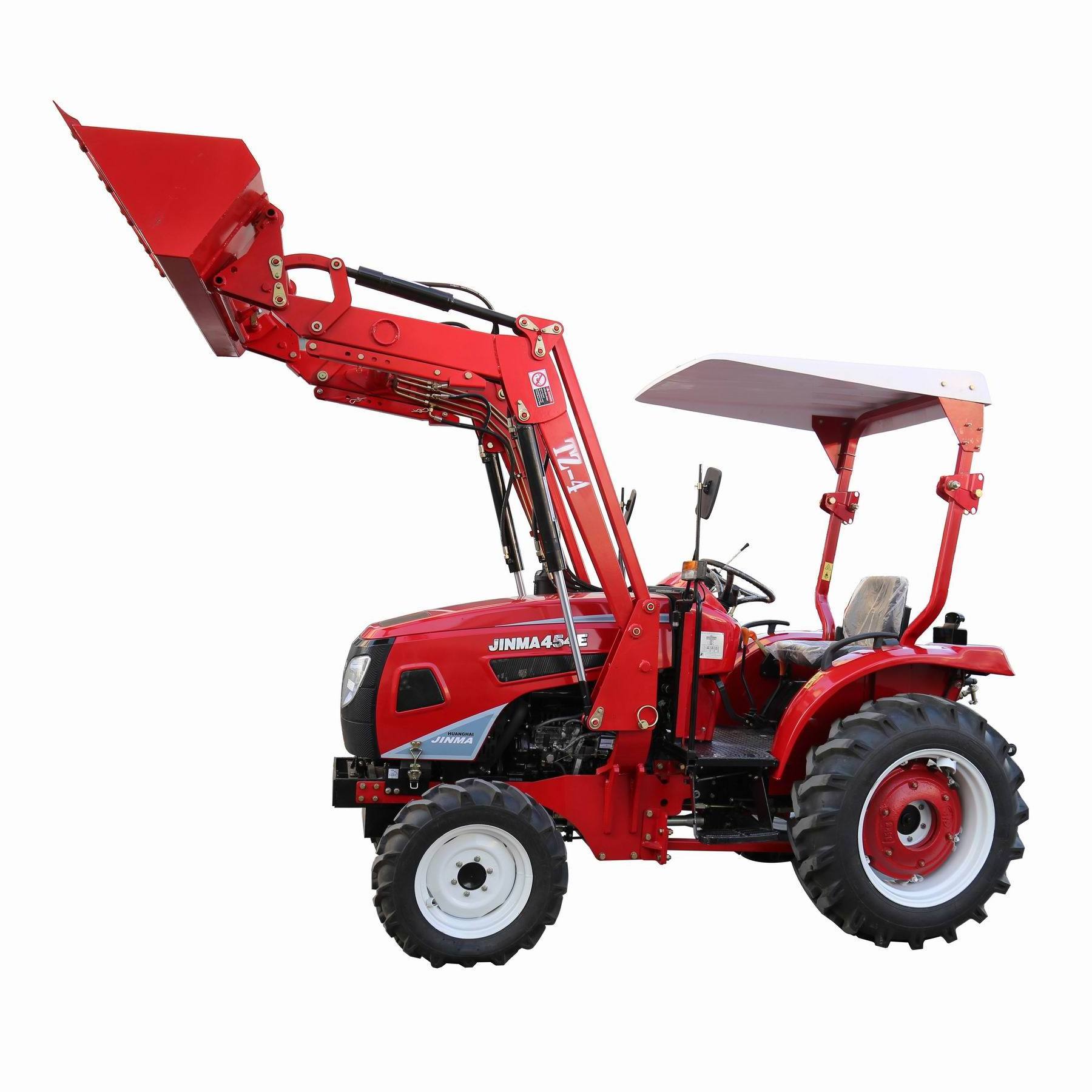

SPECIFICATIONS FOR 45 HP TRACTOR
|
|
|
|
|||
Dimensions of Tractor(mm)
|
Length (to front ballast)
|
3375mm
|
|
|||
|
Width
|
1585mm
|
|
|||
|
Height (to the exhaust vent)
|
2510mm
|
|
|||
|
Tread
|
1240mm
|
|
|||
|
Axle Base
|
1835mm
|
|
|||
|
Min.Ground Clearance
|
320mm
|
|
|||
Engine
|
Model
|
4L45B, 4 Cylinders
|
|
|||
|
Type
|
Vertical,4-Cylinder,Water Cooled and 4-stroke
|
|
|||
|
Rated Power(kw)
|
33.1
|
|
|||
|
Rated speed (r/min)
|
2400
|
|
|||
|
Fuel
|
Diesel
|
|
|||
Tires
|
Front Wheel
|
6.5-16
|
|
|||
|
Rear Wheel
|
11.2-24
|
|
|||
Structure weight (kg)
|
|
1587Kg
|
|
|||
Clutch
|
|
Dual-stage clutch
|
|
|||
Steering
|
|
Hydraulic steering
|
|
|||
Transmission Type
|
|
8+8 shift
|
|
|||
Suspension Type
|
|
3-point links
|
|
|||
|
Type and Rev
|
Semi-independent Type 540/1000r/m
|
|
|||
|
Spline Size
|
I35 Rectangle Spline with 6 teeth
|
|
Click to our series and model pages to find the tractor that best suits your needs and then email to us.
When you compare an CP Tractor with the other brands, you'll see why our tractors not only allow you to work more efficiently, easily and quickly, but also offer the best value for the money. Excel in Your Field™ with an CP Tractor.
1)Engine: 4L45B,4 Cylinders
2)4*4 wheel drive, 45hp
3)Hydraulic Steering
4)With Dual -Stage Clutch
5)8+8 gear shift
6)3-point linkage
7)PTO 540/1000rpm
8)Tires:6.5-16/11.2-24
9)Front ballast and Rear ballast
10)Multi-way valve
11)ROPS
12)Canopy
Name: Engine
Brand: Changchai
Original: China
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits.
Name:
Chassis
The technique from Domestic famous Foton ( TY)
Name:
YTO
The YTO is stable and strong;
Name:
drive
The hood with good surface appearance and toughness;
Packaging
|
|
|
Size
|
3375×1585×2510
|
|
Weight
|
1587 kg
|
|
Packaging Details
|
Iron crate or nude
2 units in a 20' FCL in whole 8 units in a 20'FCL disassembled The normal package is 10mm wire and Triangle wood or steel. |
