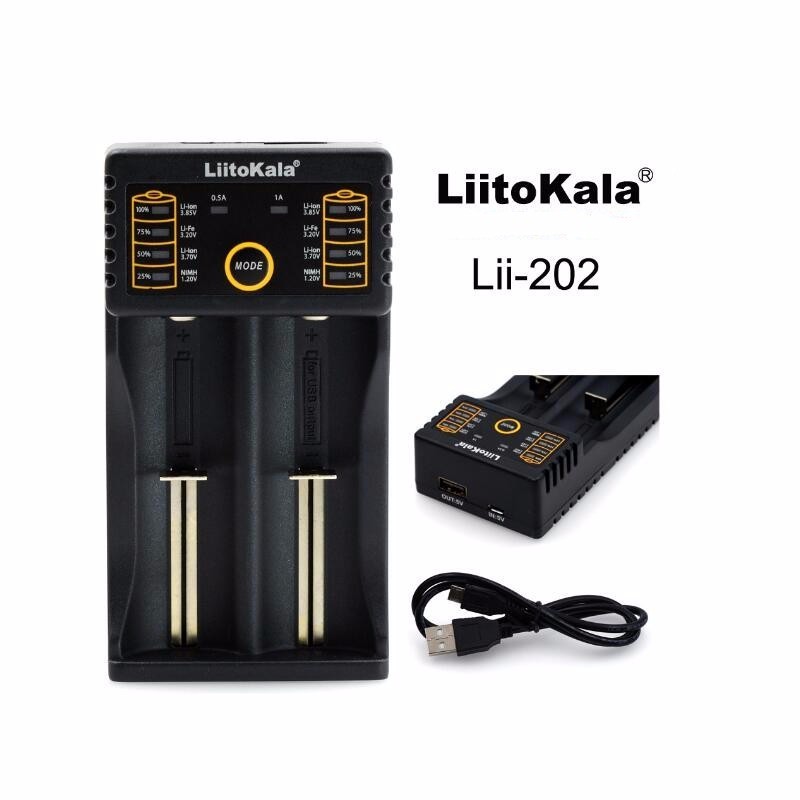

LiitoKala Lii-202 battery charger Lii-50A 26650 5000mah Rechargeable battery for flashlight

LiitoKala Lii-202 battery charger Lii-50A 26650 5000mah Rechargeable battery for flashlight

This device is designed for portable, flexible and multiple battery types. it can detect the battery type and charging the battery is automatically selected in accordance with the charging current. Built-in LED indicators to show charging status and 5 V / 100 mAh USB output function

1. warming:
this charge is only for charging the cylindrical lithium-ion (3.7, 3.8), Ni-Mh / Ni-Cd, LiFePO4 (Li-Ion) batteries.
Please read these instructions before use; pay attention to the recommended charging current, never choose the wrong charging current
when the charge with 5V USB AC adapter, 2A-current AC adapter recommended
Charger ma hot during operation for a long time, handle with care!
please cut off the electricity and remove the battery from the charger when charging is complete.
indoor condition only !!
data mapping Charger for reference only; please refer to professional instrumentation, if you need accurate data

2. Features and Specifications:
Micro USB DC 5V input, two independent slots and charging channels with built-in micro-computer control system to ensure high efficiency
Two charging current parameters (0.5A / 1.0A)
Four LED indicators show the charging status (25%, 50%, 75%, 100%), and also shows the battery type, if inserted into the battery (1.2 V Ni-Mh, 3.2 in Li-Fe, 3.7 in Li-Ion, 3.85 in li-ion)
automatically identify Li-Ion and Ni-Mh; But, you need to adjust the charging mode for LiFePO4 and 3.85 in the lithium-ion battery
it can actively 0 V battery, but the device does not charge a 1.65 V ~ 1.85 V batteries types.
built with excessive charging protection, over-discharge protection and protection of polar reverse. besides, it can detect a broken battery.
Charing mode: instantaneous current and voltage.
PERMANENT charging current: Operating voltage in the 5V-2A (Micro-connector)
Standard automatic 5 V / 1000 mAh USB output port

3. Select the button, LED and function.
MODE button:
click to select the type of battery when inserting the battery. it will begin to charge the battery after fixing the battery type (please noted that it will automatically identify Li-Ion and Ni-Mh, no need to choose manually)
press and hold for 2 seconds, when after connecting to power, it can be switched between charging current of 0.5A and 1.0A;

Led indicator
connect the charger to power, all LED indicators will be on when the battery is inserted after 5 seconds, the LED will be turned off except for the indicator 0.5A current
when the battery is inserted into the device, 4 LEDs will be turned on and 3.7 V LED indictors blink, then please press the MODE button to set the correct type of battery. it will begin to charge the battery after 5 seconds, and the LED indictors show the charging status.
Press the MODE button to show the type of battery (5 seconds) during charging and return to show the charging status
it can show the remaining battery power, if you put the battery in the charger (with no connection to the power charging)
USB output indicator: When the USB output is detected, the volume of the battery indicators will be on for 10 seconds and then off, press the button to show the battery volume speed.

4. Specification:
Input: Micro USB DC 5V / 2A
Output: 1.4, 4.2V ± 05, 3.65 ± 05, 4.35 ± 05
Output Current: 500/1000 mAh
constant voltage charging cut-off current: <100 mAh
Standby Current: <15 mAh

5. USB output function
USB output load voltage: 4.90 V-5.30
Output Current: 1000 mAh (1A)
Idle Current: <1 mAh
the output voltage of 4.75 V-5.25 V, when the current 1000 mAh
output over-voltage protection: 3.0 ± 1

6. Compatibility
li-ion / IMR: 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440

7. Size
112 mm × 60 mm × 30 mm / 86g + 15g USB cable

Liitokala Lii-202 18650 charger Pictires:
