Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Unionwell
-
Model Number:
-
G3
-
Product name:
-

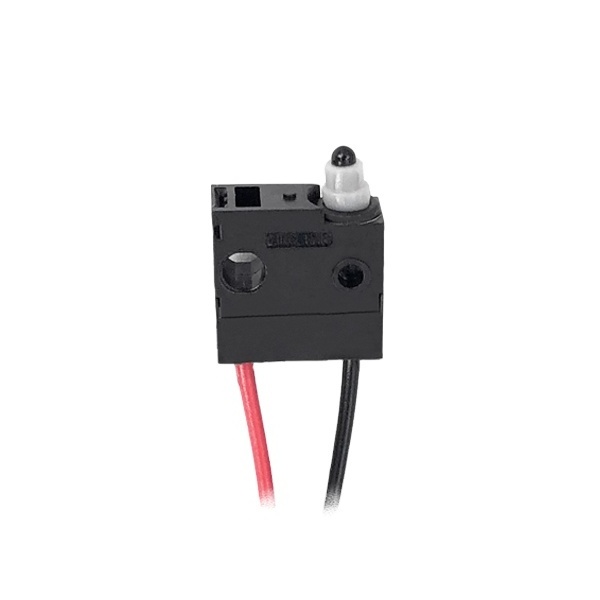

Waterproof Micro Switch for Automotive Switch Application
-
Electrical life:
-
50,000cycles
-
Mechanical life:
-
1,000,000cycles
-
Function/circuit:
-
SPDT (or SPST-NO, NC for option)
-
Lever type:
-
Straight lever
-
Operating force:
-
50gf max w/ lever (light or heavy for option)
-
Company assurance system:
-
ISO9001 & TS16949
-
Environmental compliance:
-
RoHS, Reach
-
Terminal type:
-
Solder terminals (other types for option)
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
15A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Unionwell
-
Model Number:
-
G3
-
Product name:
-
Waterproof Micro Switch for Automotive Switch Application
-
Electrical life:
-
50,000cycles
-
Mechanical life:
-
1,000,000cycles
-
Function/circuit:
-
SPDT (or SPST-NO, NC for option)
-
Lever type:
-
Straight lever
-
Operating force:
-
50gf max w/ lever (light or heavy for option)
-
Company assurance system:
-
ISO9001 & TS16949
-
Environmental compliance:
-
RoHS, Reach
-
Terminal type:
-
Solder terminals (other types for option)
|
Rating |
ENEC:0.1A /125VAC 48VDC 5E4 |
|
|
Operating Frequency |
Electrical |
10~30 cycles/minute |
|
Mechanical |
120 cycles/minute |
|
|
Contact Resistance(Initiative) |
|
100m Ω Max |
|
Insulation Resistance(at 500VDC) |
|
100M Ω Min |
|
Dielectric Strength |
|
AC 1,000V RMS(50~60Hz) |
|
Storage Temperature |
|
-25 ℃ -+125 ℃ |
|
Storage Humidity |
|
85% RH Max |
|
Service Life |
Electrical |
10,000 ~ 50,000/cycles(Depend on part number) |
|
Mechanical |
1,000,000/cycles |
|
Huizhou Greetech Eletronics Co., Ltd focuses on R&D and manufacturing various micro switches, automotive switches, waterproof switches, pressure switches, mechanica l keyboard switches, precise auto parts, mobile phone connectors, and a variety of contact modules and terminal components. The annual output of switches & connectors is about 250 millions pieces.
Now we have a professional R&D team and our main engineers have worked in switches & connectors industry for over 8 to 20 years. Our factory has been certified of ISO9001 and IATF16949 quality assurance system and ISO14001 environment management system. All of our products are safety approved by UL, cUL, ENEC & CQ C certificates etc. We have our own R&D team to develop fully- automatic assembly & testing equipments. Presently, over 80% of our products are manufactured & tested by automatic equipments to ensure the consistency of quality.
With the efforts of all staffs, Greetech now has set up a complete R&D and production system, including new products development, precise tooling, molding injection, precise stamping and automation equipment R&D, assembly & testing et c.
