LED dental light for Dental chair

FOB Reference Price: Get Latest Price

≥1 Pieces

US $100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Certificate:: CE ISO

Input Voltage:: AC/ DC12- 24V

Power:: 10VA

Relative humidity:: 30~75%

Color temperature:: 4000k±300

Net weight:: 1. 2kg

Gross weight:: 1.5kg

Quick Details

Place of Origin:: Jiangsu, China

Keyword:: LED dental light

Item name:: LED dental light for Dental chair

Certificate:: CE ISO

Input Voltage:: AC/ DC12- 24V

Power:: 10VA

Relative humidity:: 30~75%

Color temperature:: 4000k±300

Net weight:: 1. 2kg

Gross weight:: 1.5kg

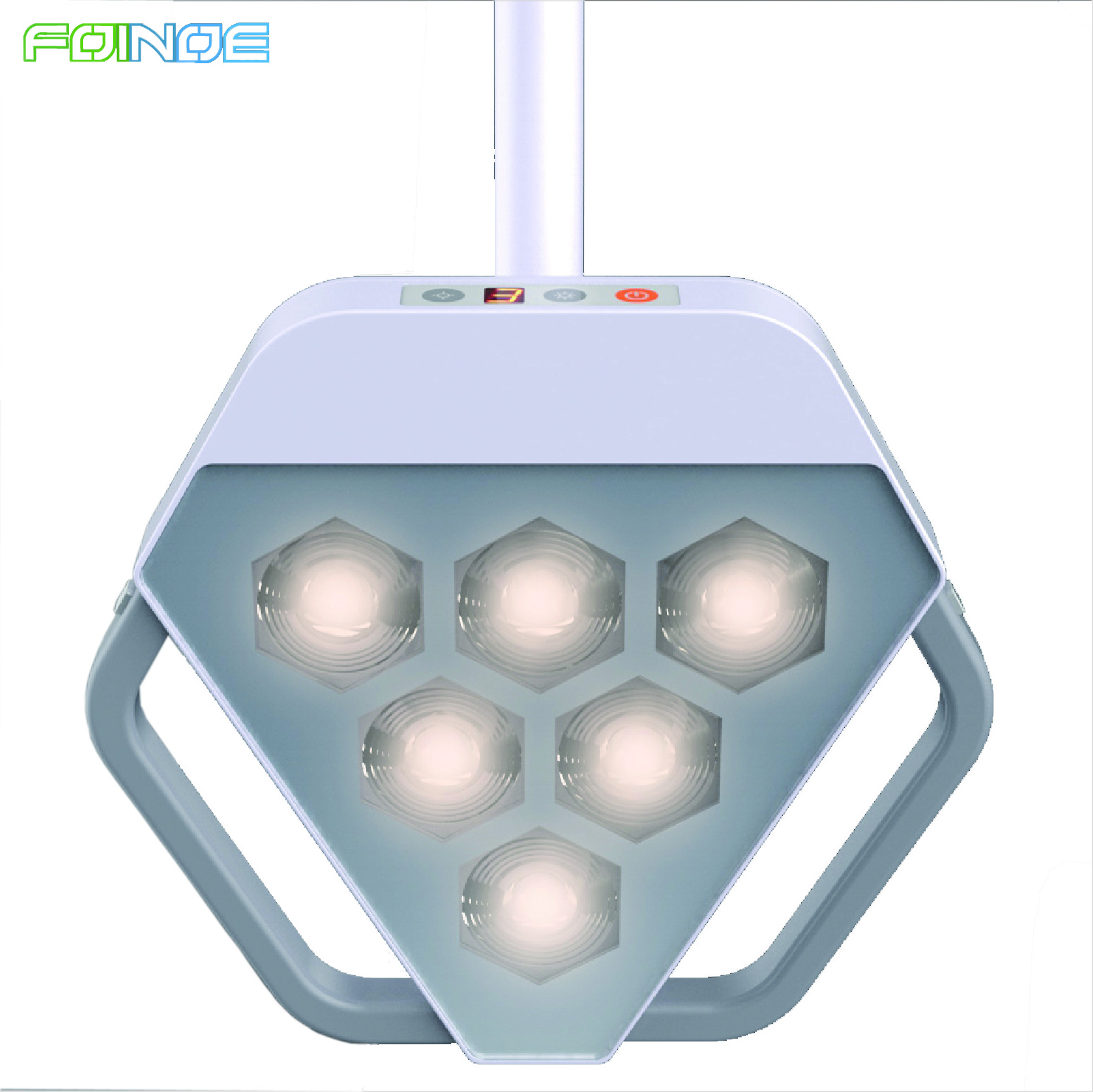

LED dental light for Dental chair

Product Description

Scope Of Application

This Product is mainly applied to the dental clinic for illuminating the mouth cavity of patient.

Structure

Installation

Installation steps:

1. As shown in Figure 1, plug the male connector into the female connector securely;

2. As shown in Figure 2, plug the Connection Shaft between the C antilever and LED Holder into the hole of Cantilever, align the Screw Holes, and then tighten up the Hexagon Socket Screw ; and

3. As shown in Figure 3, install the Decorative Sleeve on the Cantilever.

Working Environment

Working environment		Storage and transportation environment
Ambient temperature	5 ~ 30 ℃	Transport temperature	-30 ~ 70℃
Relative humidity	30 ~ 75%	Relative humidity	-10 ~ +100%
Atmospheric pressure	70 ~ 106 kPa	Atmospheric pressure	50 ~ 106 kPa

Technical Parameters

Input voltage	AC12V-24V
Power	10VA
Illumination	5000LUX
Color temperature	4000k± 300
Net weight	1.2kg
Gross weight	1.5kg

Instructions

1. Press down the orange "On/Off" touch key on the right to switch on/off the Light;

2. Press down the " Brightness +" touch key at the middle to increase the brightness incrementally from Level 1 to Level 6;

3. Press down the "Brightness-" touch key to decrease the brightness incrementally from Level 6 to Level 1;

4. The Light has a memory function to maintain at the Brightness Level selected the last time when the Light is switched on again;

5. After powered on, the Light comes into the inductive switching mode, under which the Light will be activated/deactivated by a hand swinging within a range 0~15mm to the inductive point;

6. Three shafts can be rotated freely, and the Light can be positioned at a wanted position by adjusting the angle of Handle;

7. The Handle can be removed for sterilizing at high temperature periodically;

8. Removal/installation of Handle: slide the button along the direction as shown by Arrow in Figure 4, and move the whole Handle along the direction as shown by Arrow to remove it. Plug the bottom end into the lower hole, and then plug the top end into the upper hole to install the Handle. Installation is completed when a click sound is heard.
