Quick Details
-
Placement:
-
Dashboard, Hood, Seat
-
OS:
-
Android & IOS
-
Screen Type:
-
NONE
-
Combination:
-
Other
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MiCODUS
-
Model Number:
-
MV501G
-
Car Make:
-
Universal
-
Size:
-
107 (L) x 51 (W) x 20 (H) mm
-
Backup Battery:
-
1000mAh
-
Weight:
-
80g
-
Network:
-
4G LTE Cat1 & 2G GSM/GPRS/EDGE
-
GPS LBS Accuracy:
-
GPS: 5-10m, LBS: 100-2000m
-
Positioning Ways:
-
GPS + LBS + BEIDOU+GLONASS
-
Function 1:
-
Real Time Tracking,Voice Monitoring, Geofence
-
Function 2:
-
History Route Playback,Waterproof,SOS,Cut off Fuel,Engine Start Alarm
-
There is demo account, please try it:
-
www.micodus.net ,Life time Free Platform,
-
Certification:
-
CE, RHoS, FCC
Quick Details
-
Car Fitment:
-
Universal
-
Resolution:
-
NONE
-
Function:
-
Remote Control, Speed Warning, Voice Interaction, Waterproof, Fast Charging, Over-Speed Warning, Voice Monitoring, Wheel Path Playback, Cut off Fuel, street view, Geofence, Engine Start Alarm, SOS Emergency Call, voice monitor, sos, tow alarm, vibration alarm, movement alarm, fuel sensor, temperature monitor
-
Placement:
-
Dashboard, Hood, Seat
-
OS:
-
Android & IOS
-
Screen Type:
-
NONE
-
Combination:
-
Other
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MiCODUS
-
Model Number:
-
MV501G
-
Car Make:
-
Universal
-
Size:
-
107 (L) x 51 (W) x 20 (H) mm
-
Backup Battery:
-
1000mAh
-
Weight:
-
80g
-
Network:
-
4G LTE Cat1 & 2G GSM/GPRS/EDGE
-
GPS LBS Accuracy:
-
GPS: 5-10m, LBS: 100-2000m
-
Positioning Ways:
-
GPS + LBS + BEIDOU+GLONASS
-
Function 1:
-
Real Time Tracking,Voice Monitoring, Geofence
-
Function 2:
-
History Route Playback,Waterproof,SOS,Cut off Fuel,Engine Start Alarm
-
There is demo account, please try it:
-
www.micodus.net ,Life time Free Platform,
-
Certification:
-
CE, RHoS, FCC
Micodus MV501G Car Immobilizer Gps Position Tracking Device Ultrasonic Fuel Sensor Vehicular 4G Gps Tracker With Engine Cut Off
2. 1000mAh big backup battery
3. Realtime Tracking on google Maps
4. History Route Playback up to 6 months
5. Remotely Cut Off Fuel
6. 9-95V Wide Working Voltage
7. Voice Monitor
8. SOS Emergency Call
9. Tow Alarm
10. Auto Arm By ACC
11. GPS Data Compens By Cornering
12. GPS Data Supplementary Of Network Blind Area
13. Multiple Alarms For Anti-theft: Vibration Alarm, Geo-fence, Shift Alarm, Cut Wire Alarm, Engine Start/Flamout Alarm

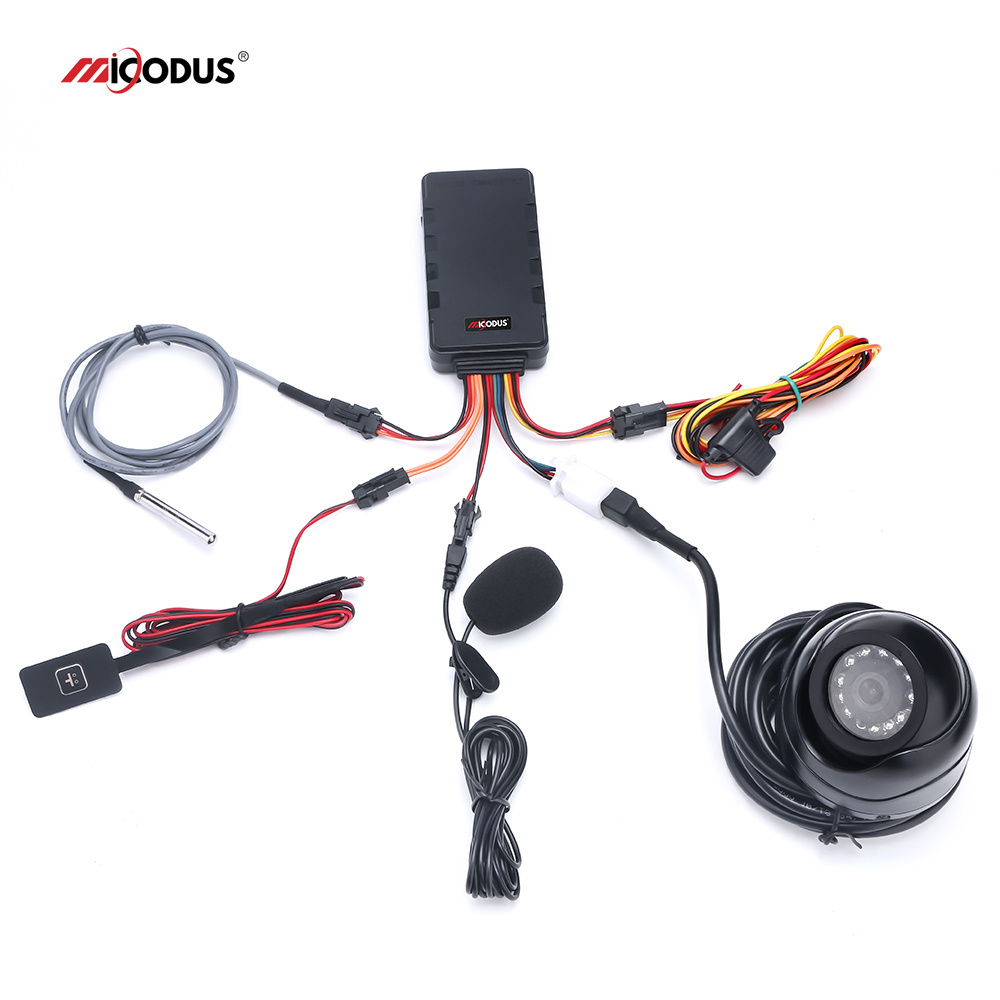

14. Multiple I/Os for Sensors/Peripherals: Fuel Sensor, Temperature Sensor, Camera
15. LIFETIME FREE WEB TRACKING SOFTWARE AND MOBILE APP !
Main Features:
1.
4G LTE CAT1
+2G GSM
2. 1000mAh big backup battery
3. Realtime Tracking on google Maps
4. History Route Playback up to 6 months
5. Remotely Cut Off Fuel
6. 9-95V Wide Working Voltage
7. Voice Monitor
8. SOS Emergency Call
9. Tow Alarm
10. Auto Arm By ACC
11. GPS Data Compens By Cornering
12. GPS Data Supplementary Of Network Blind Area
13. Multiple Alarms For Anti-theft: Vibration Alarm, Geo-fence, Shift Alarm, Cut Wire Alarm, Engine Start/Flamout Alarm
14. Multiple I/Os for Sensors/Peripherals: Fuel Sensor, Temperature Sensor, Camera
15. LIFETIME FREE WEB TRACKING SOFTWARE AND MOBILE APP !
16. MiCODUS Tracking Platform Supports
Multiple Languages.
www.micodus.net
www.micodus.net
iOS&Android APP: Micodus
NOTE:
Standard package not include optional accessories, please contact us if need.
Standard package not include optional accessories, please contact us if need.
|
Model
|
MV501G
|
|
Weight
|
150g
|
|
Dimensions
|
107mm(L)*51MM(W)*20MM(H)
|
|
Charging Time
|
Around 7 hours
|
|
Battery Working Time
|
Tracking Mode: 1-2 days
|
|
Working Voltage
|
DC 9-95V
|
|
Working Current
|
4V / Average 45mA
|
|
Sleep Current
|
4V / Less than 5mA
|
|
Battery Capacity
|
3.7V 1000mAh Lion polymer Battery
|
|
Working Temperature
|
-20℃~+75℃
|
|
Working Humidity
|
105~85RH non-condensing
|
|
Working Frequency
|
4G LTE FDD: B1/B2/B3/B4/B5/B7/B28/B662G GSM/GPRS/EDGE:850/900/1800/1900MHz
|
|
SIM Card
|
Micro SIM Card
|
|
Cellular Antenna
|
Built-in
|
|
Positioning Type
|
GPS+BEIDOU+LBS
|
|
GPS Antenna
|
Built-in
|
|
Cold Start
|
≤32 Second
|
|
Hot start
|
≤1 Second
|
|
Tracking Sensitivity
|
-162dBm
|
|
GPS Channels
|
64
|
|
Position Accuracy
|
5-10m
|
About MiCODUS MV501G
Our MiCODUS MV501G car tracker covers a variety of practical functions, it is equipped with oil cut-off function, SOS emergency call function, monitoring function, temperature sensor and oil sensor, etc., and it has a 1000mAh built-in battery, which can last for 3- 5 days under working mode. Overall, It is a car GPS tracker with complete functions and high cost performance.
Product Applications
MiCODUS MV501G GPS tracker can be use for cars, carts, trucks, motorcycles etc.
Product Structure
90(L) x 41(W) x 14(H)mm
Installation Recomendation
Recommend Installation for cars:
1). Under front windshield.
2). Around dashboard.
3). Under rear windshield.
1). The device should face to the sky.
2). Metal therma barrier of heationg layer of the windshield affects the signal.
Multiple Alarms For Anti-theft
MiCODUS MV501G GPS tracker has multiple alarms: Geo-fence, Movement alarm, Vibration alarm, Overspeed alarm, Cut wire alarm.
Web Tracking Platform and Mobile APP
LIFETIME FREE ! Web server and both iOS and Android version APP are available!
1). Time Zone & Local Language: More than 10 languages and timezone settings
2). Multiple Account Support: Allow you to set up an account for company users to manage many vehicles
3). Group Management: The user can manage the vehicle by setup different groups
4). Reporting and Export: The overview report, Speeding report, Mileage Report, Stop Report
5). Freely import GPS devices.
6). Lifetime free tracking platform.
7). MiCODUS tracking platform support most GPS models.
8). Micodus platform can host unlimited quantity of gps tracking device.
www.micodus.net
APP: MiCODUS
1.What is your minimum order quantity?
A: 1pc.
2. Why the GPS tracker device is off-line?
A: Maybe 3 reasons: device power off or outage; weak or none signal;SIM card debts or GPRS service overdue.
3. Why can not monitor?
A: Because you didn't set up the specific number and open the caller display of you SIM card. The latter will affect the former and lead to monitor failure.
4. What is the applicable range of this product?
A: We on intelligent vehicle terminal for logistics vehicles, private cars, taxis, motorcycles, e-bikes, motorbikes, buses, etc.
5. Can you do hardware/firmware customization?
A: Yes, OEM/ODM is our specialty. Our R&D team has more than 10 years industry experience.
6. How is quality control and warranty?
A: 2 year warranty. All products have been 100% strictly Quality Checked before packing.
7.
Why are your prices higher than other sellers?
A:
We have strict quality requirements for our products and invest a lot of cost in production. We are committed to providing
high-quality products for
our customers .
8. Does your device have whereabouts safety hazards?
A: Don't worry, when you log in for the first time, the system will ask you to change your password compulsorily. No one can view your device without your permission.
9. Can I add other brands of device to your tracking platform, or add your device to other brands' tracking platform?
A: Generally, as long as the network protocol is compatible, the device can be added to the tracking platform.
