Quick Details
-
Application:
-
Warehouse
-
Design Style:
-
Industrial
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Junyue
-
Model Number:
-
Jy-12M
-
Type:
-
Other Heat Insulation Materials
-
Dimensions:
-
1.2m W*40m L(can be customized)
-
Diameter of bubble:
-
10mm/20mm/25mm
-
Water vapour transmission:
-
0.013G/M2KPA
-
Reflectivity:
-
96-97%
-
Heat conductivity:
-
0.034 W/M0
-
Tensile strength(TD):
-
16.5 Mpa
-
Apparent Density:
-
85KG/M3
-
Feature:
-
Thermal insulation
-
Material:
-
Bubble foam
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Application:
-
Warehouse
-
Design Style:
-
Industrial
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Junyue
-
Model Number:
-
Jy-12M
-
Type:
-
Other Heat Insulation Materials
-
Dimensions:
-
1.2m W*40m L(can be customized)
-
Diameter of bubble:
-
10mm/20mm/25mm
-
Water vapour transmission:
-
0.013G/M2KPA
-
Reflectivity:
-
96-97%
-
Heat conductivity:
-
0.034 W/M0
-
Tensile strength(TD):
-
16.5 Mpa
-
Apparent Density:
-
85KG/M3
-
Feature:
-
Thermal insulation
-
Material:
-
Bubble foam
As a leader manufacture of the thermal insulation material,Suzhou Junyue New Material Technology Co., Ltd.was established in 1999 and headquartered in Suzhou.The product line includes aluminum foil bubble insulation ,aluminum foil foam(EPE/XPE) insulation,aluminum foil woven cloth clothe insulation(radiant barrier/sarking insulation )and aluminum foil tape.
Products Description

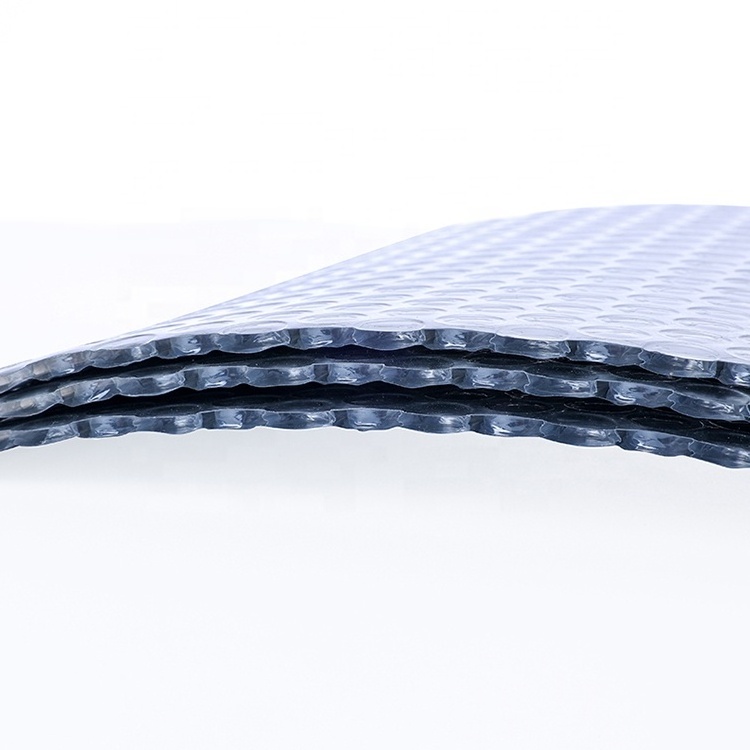

Aluminum foil bubble series
Junyue utilizes the heat-reflecting ability of pure aluminum foil (aluminum-coated film) and the excellent barrier performance of the heat-insulating material with the double effect of light reflection, and the air inside the bubble can well block the heat. The combination of bubble and aluminum foil makes Junyue ’s Insulation materials have more advantages in the same type of insulation materials!
Product Paramenters
|
Product name
|
bubble insulation
|
|
Material structure
|
aluminum foil / bubble / aluminum foil
|
|
Aluminum foil thickness
|
7-12 microns
|
|
Bubble thickness
|
3-10mm (Can be customized)
|
|
Bubble height
|
5-20mm (Can be customized)
|
|
Square gram weight
|
180-560g / m2
|
|
Packing size
|
1.2m * 40m (Can be customized)
|
|
Reflectivity
|
97%
|
|
Thermal conductivity
|
0.0409w / m2 * k
|
|
Thermal resistance
|
2.9m2 * k / w
|
|
Withstand temperature
|
-40 ℃ —80 ℃
|
Details Images
Product features
Product Usage
1. Used in Roof insulation / Attic Insulation / Stud Walls Insulation
2. Used in Crawl Spaces Insulation / Under Concrete Barrier&Insulation
3. Used in HVAC Duct Insulation / Metal Building Insulation
4. Used in Post Frame Building insulation
5. Used in Water Heater Insulation Blankets or Jackets.
6. Used in Radiant Floor Insulation / Garage Door Insulation
7. Used in Ultra/Stanard Under Concrete Barrier
8. Used in Duct Wrap Insulation
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profie
FAQ
1.Are you the factory or trading company?
We are a manufactory of foam insulation, Bubble insulation and aerogel, factory locates in Suzhou, owns 120000SQM.
2.Does your company accept customization?
Of course. We accept ODM service.
3.What's the advantage of your Multilayer insulation?
Fiber free and environmentally friendly.Increases your energy efficiency, Lower energy use both for heating & cooling. Reduces the
load on your cooling andheating system, good vapor barrier protection.
4.What is difference between aluminum foil insulation and metalized insulation ?
Pure aluminum foil insulation has dim surface, Metalized insulation has shinny surface.
Pure aluminum foil insulation can be fire retardant but Metalized insulation can not but be.
Pure Aluminum have Longer service life than metalized insulation.
5.What information should I let you know to get a completed quotation?
1)What kind of materials.
2)The size of the film(length*width*height),including the thickness.
3)Printing colors. Original printing picture or drawings will be best.
4)The order quantity.
5)Is standard bag or special design.
6.How about the products packing?
Flexible packing according to the specific requirements of the clients.
7.What's the quotation and payment terms?
1)We quote EXW, FOB, CIF price.
2)TT 30% deposit in advance, balance should be paid before delivery.
3)We accept TT, LC, Paypal, Western Union etc.
8.How do I get a sample and how long?
1)For standard products, we will send you one for free if we have in stock.
2)For customized sample, we need to charge the cost.
3)1 day for sample in warehouse, 5-7 days for customized sample.
We are a manufactory of foam insulation, Bubble insulation and aerogel, factory locates in Suzhou, owns 120000SQM.
2.Does your company accept customization?
Of course. We accept ODM service.
3.What's the advantage of your Multilayer insulation?
Fiber free and environmentally friendly.Increases your energy efficiency, Lower energy use both for heating & cooling. Reduces the
load on your cooling andheating system, good vapor barrier protection.
4.What is difference between aluminum foil insulation and metalized insulation ?
Pure aluminum foil insulation has dim surface, Metalized insulation has shinny surface.
Pure aluminum foil insulation can be fire retardant but Metalized insulation can not but be.
Pure Aluminum have Longer service life than metalized insulation.
5.What information should I let you know to get a completed quotation?
1)What kind of materials.
2)The size of the film(length*width*height),including the thickness.
3)Printing colors. Original printing picture or drawings will be best.
4)The order quantity.
5)Is standard bag or special design.
6.How about the products packing?
Flexible packing according to the specific requirements of the clients.
7.What's the quotation and payment terms?
1)We quote EXW, FOB, CIF price.
2)TT 30% deposit in advance, balance should be paid before delivery.
3)We accept TT, LC, Paypal, Western Union etc.
8.How do I get a sample and how long?
1)For standard products, we will send you one for free if we have in stock.
2)For customized sample, we need to charge the cost.
3)1 day for sample in warehouse, 5-7 days for customized sample.
Purchase Notes
1. Width and length can be customized according to customer requirements
2. The online price is for reference only, the size and size requirements are different, the price is different, please call to confirm the specific price
3. Our general packaging is Standard packaging, if there are labels, stickers and other requirements, please explain in advance
4. 100% factory direct sales
