Quick Details
-
Model Number:
-
JCF3320
-
Material:
-
stainless steel
-
Color:
-
Silver, copper, black
-
Product Name:
-
exterior combination lock
-
Weight:
-
4.5KG
-
Unlock:
-
fingerprint, Password, M1 card, mechanical key
-
Warranty:
-
3 years
-
Capacity of fingerprint:
-
100pcs
-
Fit Dooor thickness:
-
40-70mm
-
Power supply:
-
4pcs AA batteries
-
Certification:
-
CE, FCC, ROHS
Quick Details
-
Door Type:
-
Wood door, Steel door, Stainless Steel door
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JCSMARTS
-
Model Number:
-
JCF3320
-
Material:
-
stainless steel
-
Color:
-
Silver, copper, black
-
Product Name:
-
exterior combination lock
-
Weight:
-
4.5KG
-
Unlock:
-
fingerprint, Password, M1 card, mechanical key
-
Warranty:
-
3 years
-
Capacity of fingerprint:
-
100pcs
-
Fit Dooor thickness:
-
40-70mm
-
Power supply:
-
4pcs AA batteries
-
Certification:
-
CE, FCC, ROHS
Heavy duty 6068 mortise exterior combination door lock
Product Description

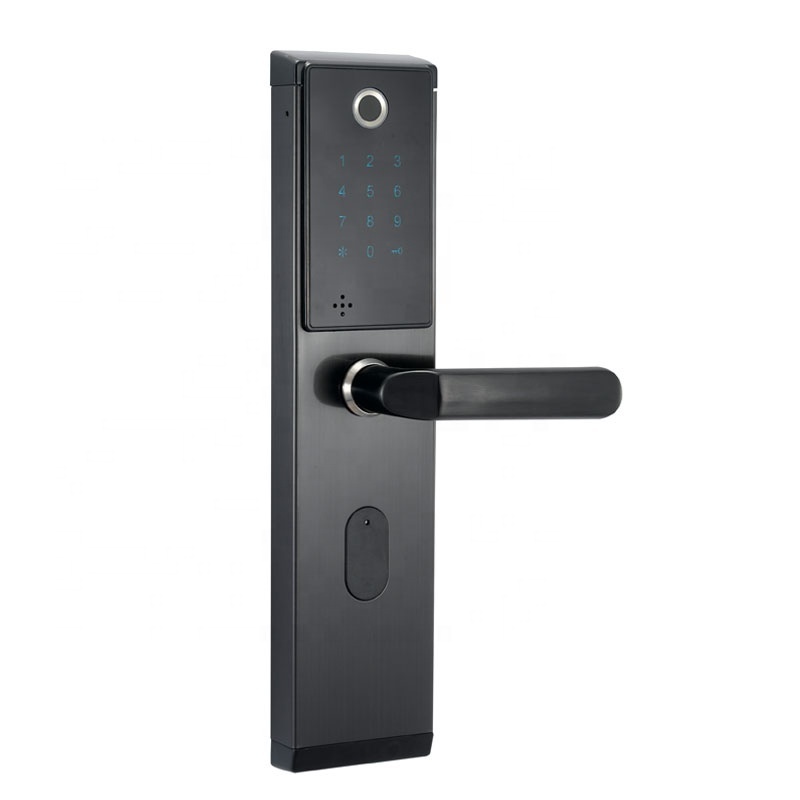

This fingerprint door lock is made of stainless steel material, with
semiconductor fingerprint reader, digital keypad, hidden IC card reader and keys. Support 4 ways to unlock: fingerprint, password, card and keys. It uses anti-thife 6068 mortise. Fit for steel door, wooden door, anti-thieft doors.
Features:
Front
Side
Back
Product Paramenters
|
Sensor resolution
|
Bright background, 500dpi
|
|
Sensor resistance to destruction
|
4H pencil 20 cm continuous impact 1000 times without damage
|
|
Start time
|
<1second
|
|
Contrast
|
1:N
|
|
Rejection rate
|
≤1%
|
|
Recognition rate
|
≤0.0001%
|
|
Finger use angle
|
360°
|
|
Fingerprint registration module
|
Generate a fingerprint module at a time
|
|
Fingerprint update mode
|
Automatic updates
|
|
Fingerprint information
|
Battery failure and replacement without losing fingerprint information
|
|
Fingerprint capacity
|
100pcs
|
|
Light interface
|
Avoid direct sunlight
|
|
Collectors
|
Hard glass, surface Nano-treatment, very wear-resistant
|
|
Static power consumption
|
Less than 30 microamperes
|
|
Dynamic power consumption
|
Operating current is less than 200 mA
|
|
Fingerprint battery life
|
Open the door 5000 times
|
|
Codec battery life
|
Open the door 6000 times
|
|
Operating Voltage
|
DC6V
|
|
Power supply
|
4PCS AA batteries powered
|
|
Password capacity
|
100
|
|
Card capacity
|
100
|
|
Backup power
|
DC 9V
|
|
Low voltage alarm
|
Support
|
|
Anti-static
|
Contact discharge 8KV, air discharge 15KV
|
|
Operating temperature
|
-10℃-55℃
|
|
Size
|
228*73*79mm
|
|
Working humidity
|
10%-90%
|
|
Storage temperature
|
-20℃-70℃
|
Details Images
Functions
Lock Certifications
Packing&Shipping
Packing size: 43*23*19cm
Weight: 4kg/pcs
