It

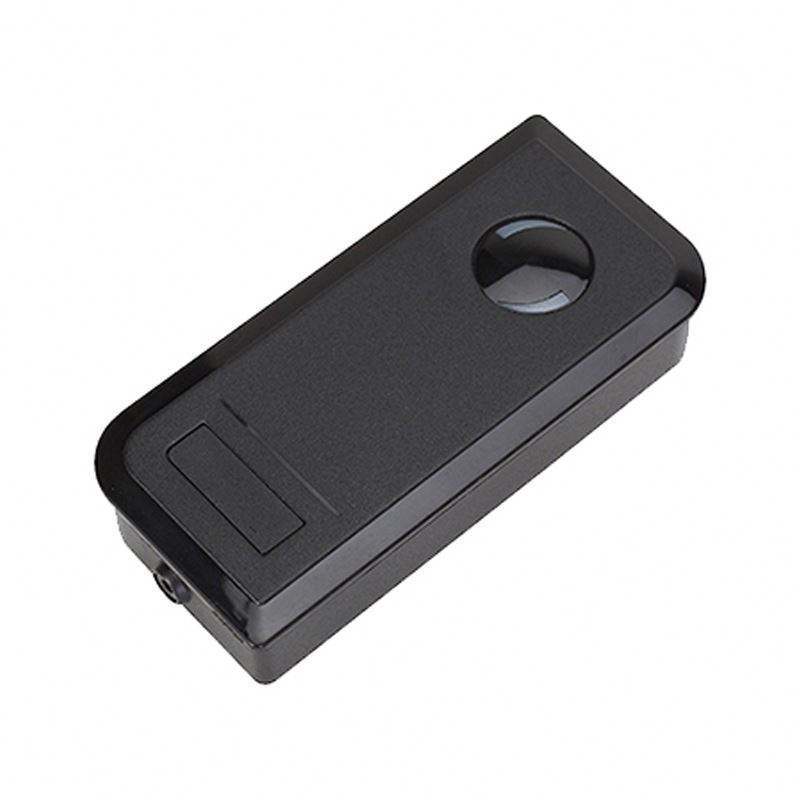

is a slim Wiegand Output 125KHz RFID Proximity Card Reader, compatible with 125KHz EM format card.
The reader is fully potted, and can function at extreme temperatures (-40℃~60℃), which allows it is capable to be mounted either indoor or outdoor.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ACM
-
Product Name:
-
125Khz Door Access Control System Rfid Reader
-
Interface:
-
Wiegand 26bit/34bit
-
Read range:
-
3~8 CM
-
Size:
-
103*48*20(mm)
-
Color:
-
Black
-
Working current:
-
0-100mAh
-
Power Consumed:
-
DC12V
-
Operating temperature:
-
-25 - 75℃
-
Operating humidity:
-
10 - 90%
-
Capacity:
-
1000 users
Quick Details
-
Frequency:
-
125KHz
-
Protocol:
-
ISO 14443A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACM
-
Product Name:
-
125Khz Door Access Control System Rfid Reader
-
Interface:
-
Wiegand 26bit/34bit
-
Read range:
-
3~8 CM
-
Size:
-
103*48*20(mm)
-
Color:
-
Black
-
Working current:
-
0-100mAh
-
Power Consumed:
-
DC12V
-
Operating temperature:
-
-25 - 75℃
-
Operating humidity:
-
10 - 90%
-
Capacity:
-
1000 users
Product Description
Proximity Access Control Waterproof Door RFID Card Reader EM Card Wiegand Reader
|
Name
|
125KHz EM Card Reader
|
|
IP Rating
|
IP66
|
|
Operation Voltage
|
9~24V DC
|
|
Standby Current
|
≤25mA
|
|
Frequency
|
125KHz
|
|
Card Type
|
EM card
|
|
Read Range
|
3~8 CM
|
|
Wiegand Output
|
Wiegand 26~37bits Output (default: 26bits)
|
|
Operating Temperature
|
-40℃~60℃(-40℉~140℉)
|
|
Operating Humidity
|
10% to 95% RH
|
|
Dimension
|
103 x 48 x 20mm
|
|
Net Weight
|
100g
|
|
Shipment Weight
|
150g
|
Detailed Images
Packing & Delivery
Packaging and delivery Details:
Package: One piece in one box, 100 pieces in one carton
Port: Shenzhen or Hong Kong
Lead time: 3~7 days after the order confirmed
