Concrete Block Machine QMY4-30A Manual Brick Making Machine Small Brick Making Machine

Concrete Block Machine QMY4-30A Manual Brick Making Machine Small Brick Making Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $2600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brick size:: 400*100*200 mm, 400*120*200 mm, 400*150*200 mm, 400*200*200 mm

Place of Origin:: Shandong, China

Brand Name:: Buildwell Machinery

Voltage:: 380V /as order, 380V/as order

Dimension(L*W*H):: 1500*1300*1100mm

Weight (KG):: 880 kg

Move Method:: Electrical Moving and hydraulic turning

Hydraulic system Pressure:: 12-14Mpa

Moulding Mehod:: Hydraulic Pressure and Vibration

Vibration Method:: Mould Vibration

Total Power:: 4kw

Total Weight:: 880KG

Oil Tank Volume:: 10.6L

Raw material:: Concrete

Applied Products:: concrete blocks

Quick Details

Type:: Hollow Block Making Machine, Paving Block Making Machine

Brick Raw Material:: CONCRETE

Production Capacity (Pieces/8 hours):: 3840 pcs/shift

Brick size:: 400*100*200 mm, 400*120*200 mm, 400*150*200 mm, 400*200*200 mm

Place of Origin:: Shandong, China

Brand Name:: Buildwell Machinery

Voltage:: 380V /as order, 380V/as order

Dimension(L*W*H):: 1500*1300*1100mm

Weight (KG):: 880 kg

Move Method:: Electrical Moving and hydraulic turning

Hydraulic system Pressure:: 12-14Mpa

Moulding Mehod:: Hydraulic Pressure and Vibration

Vibration Method:: Mould Vibration

Total Power:: 4kw

Total Weight:: 880KG

Oil Tank Volume:: 10.6L

Raw material:: Concrete

Applied Products:: concrete blocks

PRODUCT DESCRIPTION:

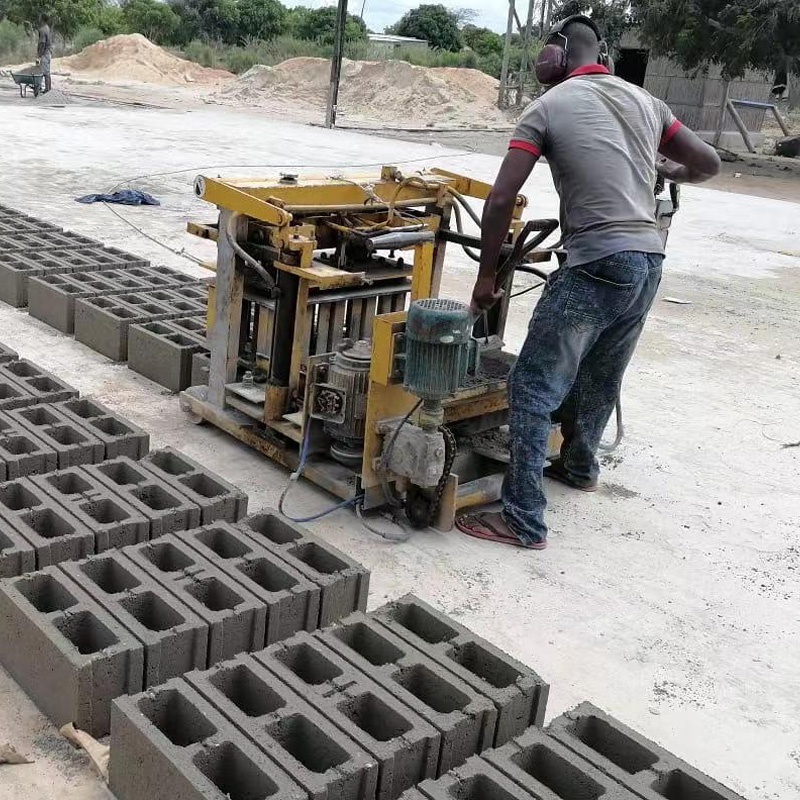

QMY4-30A Block machine featuring high production efficiency, distinctively easy and effortless to operate: the operator works always sitting at control levers.
The excellent quality of compression together with a fast production cycle enable a smooth, evenly crafted and considerable output of cement blocks.
1600Super is very strongly built and rugged; its mechanical parts and hydraulic elements exceeding necessities guarantee long life and extreme reliability. Quality production, minimum service and maintenance needs together with rugged, strong built make it the safe choice for the most demanding producers.

TECHNICAL PARAMETERS:

Overall dimension	140010001000mm
Turning method	Hydraulic
Vibration force	35.5KN
Hydraulic Pressure	19Mpa
Total power	3.75KW
Total mass	>880KG
Molding cycle	20-25S
Molding	4 Pcs/mould(400200200/390190190 mm)

ADVANTAGE:

1. High Quality a) Using international brand-name Siemens motors b) With national standard high strength steel

c) Guarantee period :1 year

2.Easy to operate

a) Two persons can operate, one operates the mixer and feed material, meanwhile the other one operates the host machine. b) The theoritical forming time is 25s/mould.
