Quick Details
-
Brand Name:
-
ONV
-
Model Number:
-
ONV-H2108PL
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
10-Port Long Transmission Distance Non-Standard PoE Switch
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
-
Warranty:
-
1 year warranty
-
LED Indicators:
-
PWR L/A
-
Transfer Mode:
-
Store-And-Forward
-
Network Medium:
-
100 meters
-
Installation:
-
Desktop, or wall-mounted installation
-
Operating temperature:
-
-20 ° ~ 55 ° C;
-
MTBF:
-
100,000hours
-
Customize:
-
accept
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
2G
-
Brand Name:
-
ONV
-
Model Number:
-
ONV-H2108PL
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
10-Port Long Transmission Distance Non-Standard PoE Switch
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
-
Warranty:
-
1 year warranty
-
LED Indicators:
-
PWR L/A
-
Transfer Mode:
-
Store-And-Forward
-
Network Medium:
-
100 meters
-
Installation:
-
Desktop, or wall-mounted installation
-
Operating temperature:
-
-20 ° ~ 55 ° C;
-
MTBF:
-
100,000hours
-
Customize:
-
accept
Passive non-standard 10 port poe 24v/52 output switch (H2108PL)
H2108PL supports data and power transmission through CAT.5 cables at the same time. And 8+2 port support fast connecting at 10/100Mbps. It also supports long transmission distance at 250 meters both for power and data, therefore, it saves cost for the project that requiring long distance transmission through extender, fiber and coaxial cable etc. It reduces line losses effectively though 4-core cable supplying power same time.
This cost-effective switch provides network layout which need to simplify wireless access point (AP) and IP-based surveillance network cameras to install in commercial network and home network. It is the ideal networking solution for work-groups and intelligent community fiber access.These devices away from electrical outlets are very suitable for hanging on the wall or ceiling. PoE eliminates the hassle for these devices, specially the electrical outlets. Connect the AC power connection to make those difficult device more flexible, and the installation cost minimization.
Cost effective H2108PL provide a simple network for wireless AP, business and home that are based on the installation of IP Camera. These devices away from electrical outlets are very suitable for hanging on the wall or ceiling. PoE eliminates the hassle for these devices, specially the electrical outlets. Connect the AC power connection to make those difficult device more flexible, and the installation cost minimization.
Product features:
Supply power to wireless AP and IP Camera through CAT 5 cable (Must use with DC24V to 12V non-standard PoE splitter cable)
1- 10 Port: 10/100M auto sensing RJ45 port.
Support port auto-flip ( Auto MDI/ MDIX )
Anti-thunder function for uplink port (Port 9-10 anti-thunder function reaches level 2)
Total PoE Power: 120 W (Port 1 - 8 )
Support long transmission distance at 250 meters
Switch Mode: Mode 1 : Port 1-10: 10/100M auto-sensing. @100 meters; Mode 2 : Port 1-8: 10M @ 250 meters; Port 9-10: 100M @ 100 meters
Store and forward
Fanless design, natural cooling. Mini size

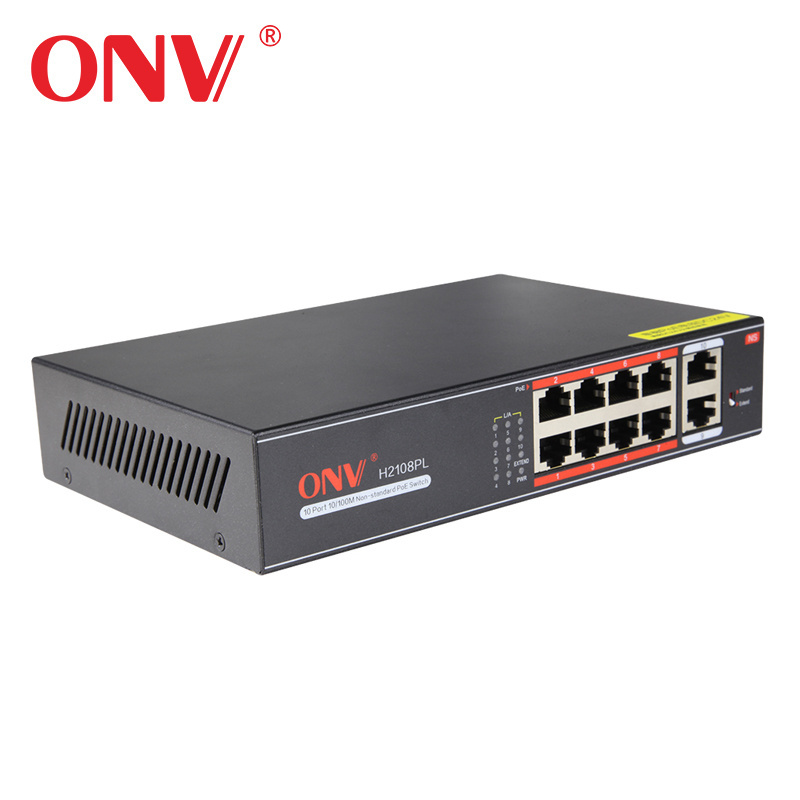

Product Model: H2108PL
Product Description: 10-Port 10/100M Non-standard PoE Switch. Port 1-8 support PoE function (24V) with port isolation function. Total power is 120W. Long transmission distance at 250 meters for both power and data. Built-in power supply.
Note: PoE Power Supply: 4 5+, 78- (Default)
