Quick Details
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Integrated
-
Socket Type:
-
24Pin+ 2*8Pin ATX power socket
-
FSB / HT:
-
2400MHZ
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
Dual-way Intel Xeon E5 LGA2011-V3 pin
-
Memory:
-
8*DDR4 DIMM,2133/2400MHz
-
RAM:
-
2 * M.2 slot (NVME protocol); 10 * SATA3.0 interface
-
Network:
-
1 * RJ 45 interface
-
Net Card Chip:
-
RTL8111H Gigabit
-
PS/2:
-
1*Keyboard interface 1*Mouse interface
-
Fuction Pin:
-
1*FPANEL Face version pin; 2 * 4Pin CPU fan; 2 * 3Pin SYS fan;
-
Power Input:
-
24Pin + 2*8Pin ATX power socket
Quick Details
-
Maximum Ram Capacity:
-
256GB
-
Application:
-
LAPTOP
-
Form Factor:
-
ATX
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Integrated
-
Socket Type:
-
24Pin+ 2*8Pin ATX power socket
-
FSB / HT:
-
2400MHZ
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
Dual-way Intel Xeon E5 LGA2011-V3 pin
-
Memory:
-
8*DDR4 DIMM,2133/2400MHz
-
RAM:
-
2 * M.2 slot (NVME protocol); 10 * SATA3.0 interface
-
Network:
-
1 * RJ 45 interface
-
Net Card Chip:
-
RTL8111H Gigabit
-
PS/2:
-
1*Keyboard interface 1*Mouse interface
-
Fuction Pin:
-
1*FPANEL Face version pin; 2 * 4Pin CPU fan; 2 * 3Pin SYS fan;
-
Power Input:
-
24Pin + 2*8Pin ATX power socket
|

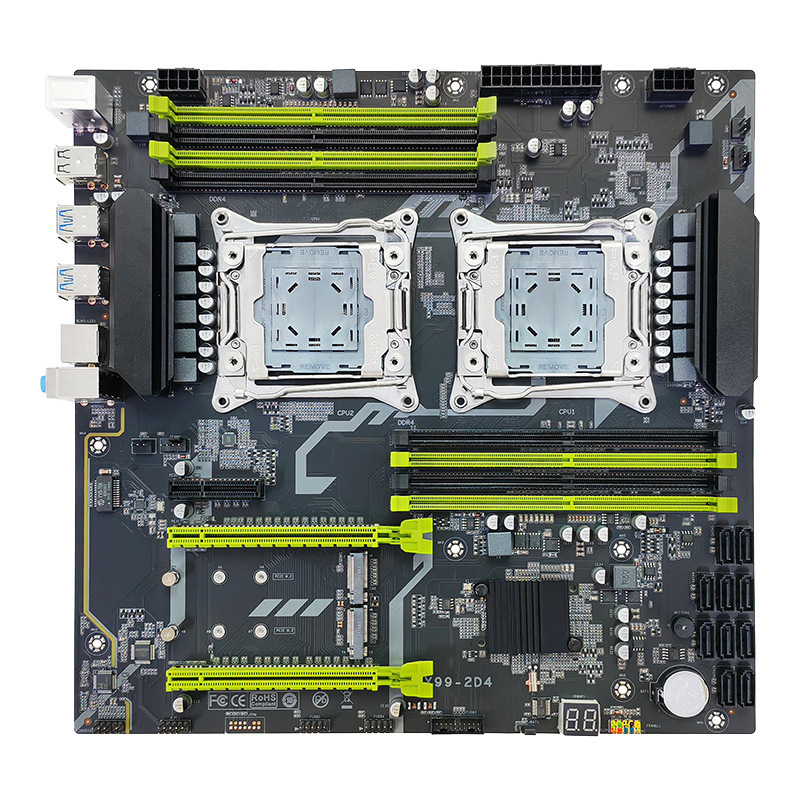

Chipset |
C612 |
|
CPU |
Dual-way Intel Xeon E5 LGA2011-V3 pin CPU (both CPU models) |
|
Applicable : E5-2603V3 /2666V3 /2678V3 /2696V3 /2603V4 /2680V4/2696V4 ... |
|
|
memory |
8*DDR4 DIMM , 2133/2400 MHz ( MAX ), Maximum support of 256G (32G * 8), green groove as the main channel |
|
RAM |
2 * M.2 slot (NVME protocol); 10 * SATA interface (SATA 3.0) |
|
Display interface |
/ |
|
network |
1 * RJ 45 interface |
|
Net card chip |
RTL8111H Gigabit network card chip |
|
PS/2 |
1* Keyboard interface 1* Mouse interface |
|
Audio |
1*Line out , 1*MIC In , 1*Line in ; 1*F_Audio Built-in needle |
|
Audio chip |
Realtek ALC897 |
|
USB interface |
IO interface: 4 * USB3.0,2 * USB2.0; Built-in pins: 2 sets of USB2.0 pins (4 USB2.0 ports); 1 group of USB3.0 pins (2 USB3.0 ports) |
|
PCIE |
2 *PCIE X16 3.0 slot ( from CPU1 ) 1*PCIE X 4 3.0 slot ( from CPU2 ) |
|
Function Pin |
1*FPANEL Face version pin; 2 * 4Pin CPU fan; 2 * 3Pin SYS fan; 1 * JBAT pin |
|
power input |
24Pin + 2* 8Pin ATX power socket |
|
product size |
290 x 295 mm , 6 Layer PCB |
