- Product Details
- {{item.text}}
Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RAYTHER
-
Weight (KG):
-
30 KG
-
Core Components:
-
Laser
-
Product name:
-
UV laser marking machine
-
Type:
-
Desktop
-
Wavelength:
-
355nm
-
Marking speed:
-
7000mm/s
-
Minimum Character:
-
0.1mm
-
Positioning Accuracy:
-
0.001mm
-
Repeated accuracy:
-
0.002mm
-
Working area:
-
110 * 110mm (optional)
-
Power supply:
-
220V/50Hz
-
Weight:
-
30kg
Quick Details
-
Working Accuracy:
-
0.001mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dwg
-
Laser Type:
-
UV LASER
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RAYTHER
-
Weight (KG):
-
30 KG
-
Core Components:
-
Laser
-
Product name:
-
UV laser marking machine
-
Type:
-
Desktop
-
Wavelength:
-
355nm
-
Marking speed:
-
7000mm/s
-
Minimum Character:
-
0.1mm
-
Positioning Accuracy:
-
0.001mm
-
Repeated accuracy:
-
0.002mm
-
Working area:
-
110 * 110mm (optional)
-
Power supply:
-
220V/50Hz
-
Weight:
-
30kg
Product Description

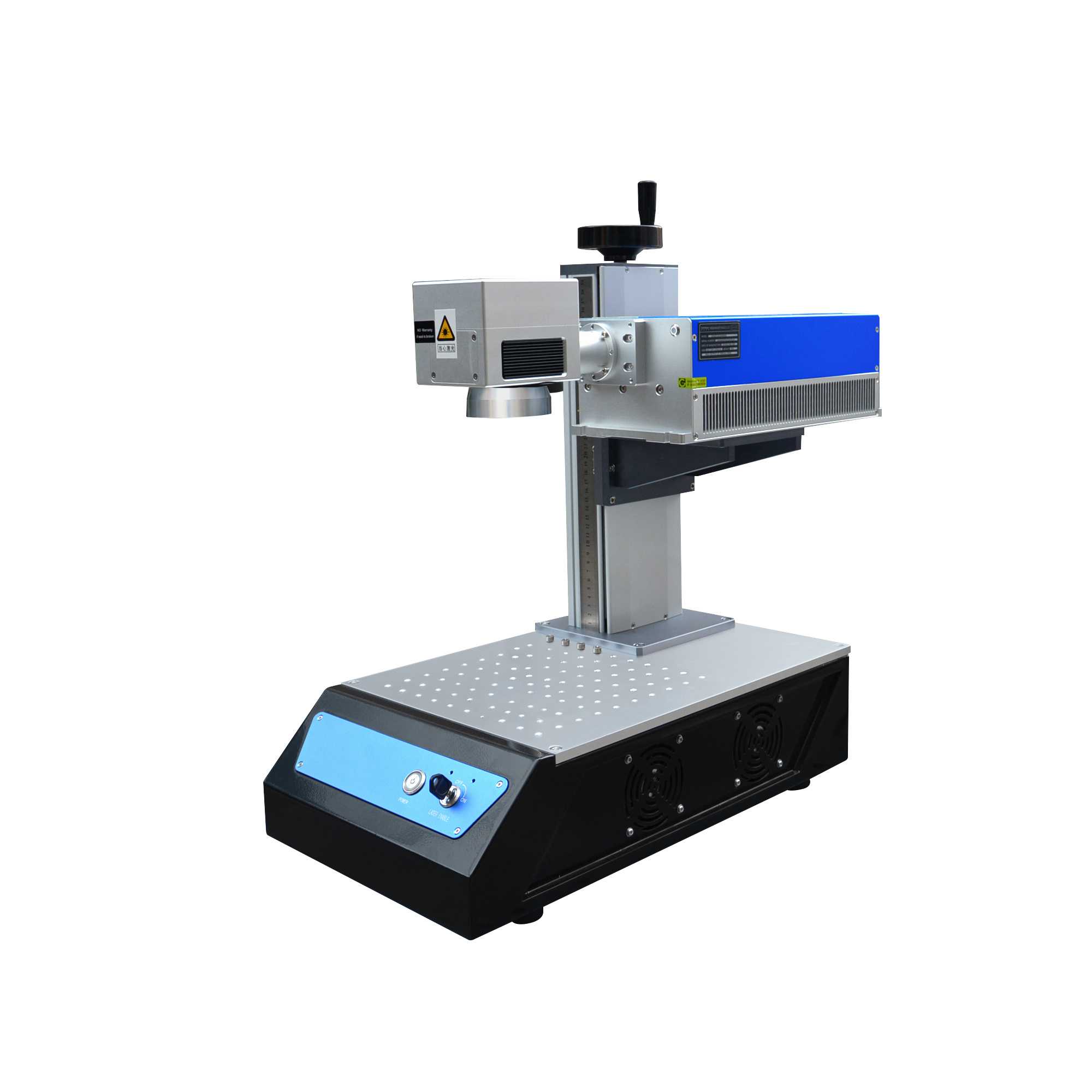

LZ-UV
UV Laser Marking Machine
|
Laser
|
Laser Wavelength
|
355nm
|
|
|
Average Output Power
|
3W
|
|
|
Light Isolator
|
Own
|
|
Galvanometer
|
Max. marking speed
|
7000mm/s
|
|
|
Positioning Accuracy
|
±0.001mm
|
|
|
Repositioning Accuracy
|
±0.002mm
|
|
Optical Output Features
|
Marking Range
|
50mm-300mm
|
|
|
Min. Linear Width
|
0.01mm
|
|
|
Min. Character Height
|
0.1mm
|
|
System Property
|
Power Supply
|
AC220V/50HZ
|
|
|
Manual Worktable Range
|
0-550mm（Manual, standard lifting height）
|
|
Working environment requirements
|
Temperature
|
-5℃-40℃
|
|
|
Total installed capacity
|
≥40KVA
|
|
|
Voltage
|
220V+10%
|
|
|
Humidity
|
≤80%，No condensation
|
Tips:
Shandong Leize Intelligent Technology Co., Ltd. Alibaba official website product prices are fixed parameter configuration product prices, all products are subject to the business manager's quotation. Because of the many product models and configurations, it can be customized according to user industry needs. Welcome customers to inquire!
Service phone: 0533-5178668
Applicable Industry and Material:
(1) It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.
(2) Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
(3) Pharmaceutical, food, beverage and cosmetics industry.
(4) Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses.
(5) It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, pervious to light polymer materials, plastic, fire prevention materials etc..
Sample display
PRE-SALES SERVICE
1. 12 hours quick pre-sales response and free consulting;
2. Any kind of technical support are available for users;
3. Free Sample Making is available;
4. Free Sample Testing is available;
5. Progressing solution design will be offered to all the distributor and users.
2. Any kind of technical support are available for users;
3. Free Sample Making is available;
4. Free Sample Testing is available;
5. Progressing solution design will be offered to all the distributor and users.
After-sales Service
1. 12 languages 24 hours Quick Feedback;
2. "Training Video", "Instruction Book", and "Operation Manual" will be offered;
3. Brochures for simple trouble-shootings of the machine is available;
4. Plenty of technical support online is available;
5. Quick Back-up Parts Available & Technical Assistance;
6. Free training service is available.
2. "Training Video", "Instruction Book", and "Operation Manual" will be offered;
3. Brochures for simple trouble-shootings of the machine is available;
4. Plenty of technical support online is available;
5. Quick Back-up Parts Available & Technical Assistance;
6. Free training service is available.
Packaging & Shipping
