Quick Details
-
Brand Name:
-
THEHAO
-
Model Number:
-
THS1-GN
-
Rated Current:
-
100
-
Product name:
-
Dual Power Automatic Transfer Switch
-
Operation type:
-
Automatic Conversion
-
Pole:
-
3P,4P
-
Function:
-
Automatic Transfer Switch Generator ATS
-
Rated working voltage:
-
400V AC
-
Current:
-
16~3200amp
-
Rated insulation voltage(Ui):
-
690V/800/1000
-
Application:
-
Low Voltage Circuits
-
Certificate:
-
ISO CCC IEC
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
4
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
THEHAO
-
Model Number:
-
THS1-GN
-
Rated Current:
-
100
-
Product name:
-
Dual Power Automatic Transfer Switch
-
Operation type:
-
Automatic Conversion
-
Pole:
-
3P,4P
-
Function:
-
Automatic Transfer Switch Generator ATS
-
Rated working voltage:
-
400V AC
-
Current:
-
16~3200amp
-
Rated insulation voltage(Ui):
-
690V/800/1000
-
Application:
-
Low Voltage Circuits
-
Certificate:
-
ISO CCC IEC
Products Description
Specitificate
ATS SWITCH FUNCTION
1. Self-input and self-restoring, Self-input without self-restoring, automatic or manual is all depends on you.
2. 2 Pole,3 Pole,4 Pole all you can choose
3. Running parameter could be adjusted
4. Rated voltage of 400V,rated current is from 10Amp to 400Amp
5. City power to City power City power to Generator
Application
THS1 series ATS are mainly used for the state of a load, widely applicable to the fire, postal communication, hospital, hotels, Urban rail transport and high-rise buildings, industrial assembly line, television stations need electricity for the important parts. Main power Emergency Power can be power grids, with Self-excitation generator sets, battery, and so on.

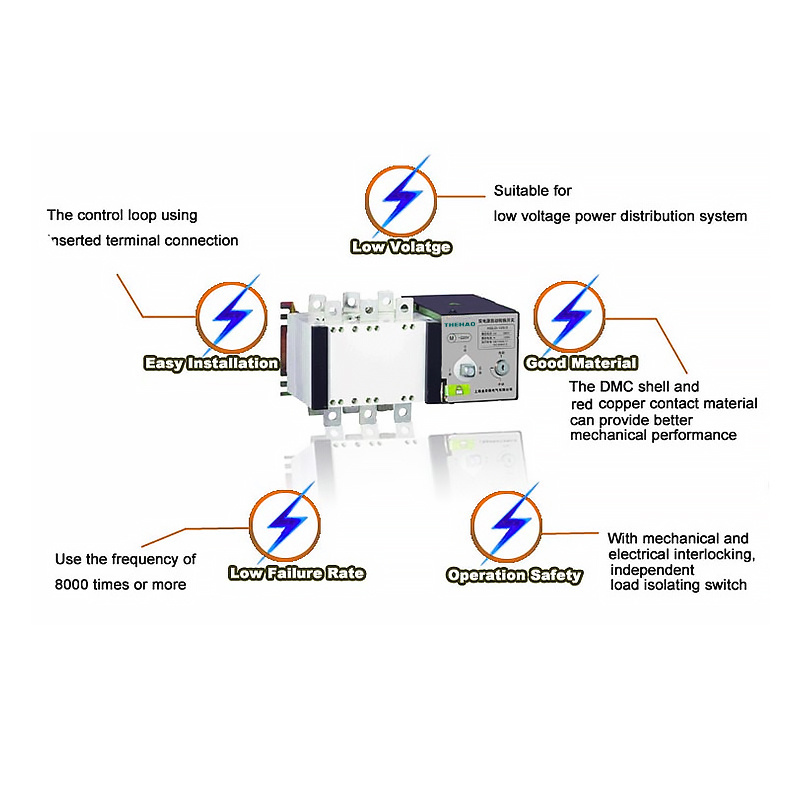

Structure and characteristic
THS1 series automatic transfer switch is composed of switch is composed of switch body and controller. Adopt the electromagnetic driver, the working power of controller transfer is based on the main power and the standby power. AC220V power supply, without additional source. Switch body have an electrical or mechanical switch instruction as an isolation indicator function.
Features
:
1) Rated current :
16/20/25/32/40/50/63/80/100/125/160/200/225/250/315/350/400/500/630/800/1000/1250/1600/2000/2500/3200
2) Pole number: 3p, 4p
3) Rated working voltage: AC 400V, 50Hz
4) The total height is only 110mm
5) Good function connection: UTILITY - UTILITY,UTILITY-GENERATOR
abnormal or faulty tripping (overload, short circuit), the controller won't send out the order to realize the protective function
of reopening and closing
3) Four working modes: automatic control, common source (power supply I), standby power supply (power supply II), breaking electricity (re-tripping)
4) When the working mode is in the automatic control state, it has two self-throw no self-recover, self-throw, and self-recover functions:
a) Self-throw non-self recover: when the device enters the working state, power supply I automatically throws into supplying
electricity; when power supply I has an abnormity, it will automatically transfer to power supply II; when power supply I recovers, it doesn't transfer until power supply II has an abnormity, then it will automatically transfer to power supply
b) Self-throw and self-recover: when the device enters the working state, the common source throws into supplying electricity; when power supply has an abnormity, it will automatically transfer to standby power supply; when common power supply recovers, it will automatically recover common power supply; but when the standby power supply has an abnormity, the controller will emit an alarm sound.
|
Type
|
THS1-GN、YES1-GN1、YES1-GNF
|
|
|
|
|
|
|
||||||
|
Rated current(Ith)
|
100
|
160
|
250
|
400
|
630
|
1250
|
1600/2000/2500/3200
|
||||||
|
Rated working current(Ie)
|
16/20/25/32/40/50/63/80/100
|
125/160
|
200/225/250
|
315/350/400
|
500/630
|
800/100/1250
|
1600/2000/2500/3200
|
||||||
|
Rated insulation voltage(Ui)
|
690V
|
|
|
800V
|
|
1000V
|
|
||||||
|
Rated impulse withstand voltage(Uimp)
|
8KV
|
|
|
12KV
|
|
|
|
||||||
|
Rated working voltage(Ue)
|
AC400V/50Hz
|
|
|
|
|
|
|
||||||
|
Usingzation Category
|
AC-338
|
AC-33iB
|
|
|
|
|
|
||||||
|
Rated limited short-circuit current
|
8KA
|
17KA
|
|
26KA
|
26KA
|
67.5KA
|
105KA
|
||||||
|
Rated short-time withstand current
|
5KA/30ms
|
10kA/60ms
|
|
21.6kA/60ms
|
|
32ka/60ms
|
50ka/60ms
|
||||||
|
Transferring Time
|
2.5s
|
|
|
3s
|
|
3.2s
|
3.7s
|
||||||
