Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SUPERWAVE
-
Dimension(L*W*H):
-
510mm*415mm*345mm
-
Weight (KG):
-
30 KG
-
After-sales Service Provided:
-
Online support
Quick Details
-
Engraving Area:
-
1.5mm*1.5mm
-
Laser Type:
-
Fiber Laser
-
Engraving Speed:
-
2mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SUPERWAVE
-
Dimension(L*W*H):
-
510mm*415mm*345mm
-
Weight (KG):
-
30 KG
-
After-sales Service Provided:
-
Online support

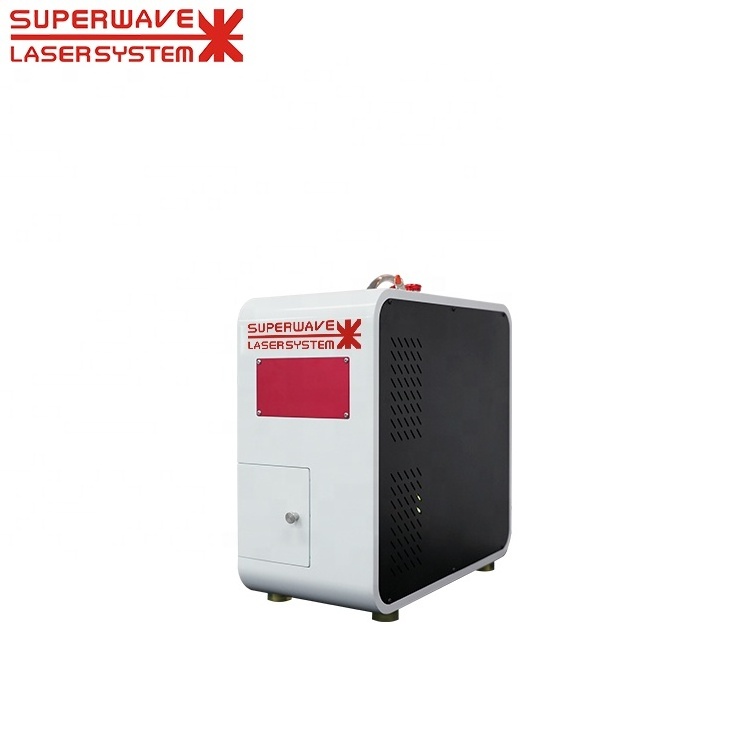

Diamond Girdle Laser Marker Diamond Laser Inscription Machine
Technical Parameters
|
M o d el |
S W -L D M |
|
Repe a t p ositi ng a c c u r a c y |
± 0 . 0 1um |
|
Wavelength |
1064nm |
|
Engraving s peed |
2m m /s |
|
M i n c h a r a c t er |
40um |
|
M i n li ne w i d t h |
5um |
|
C ooli ng syst em |
Ai r c ooli ng |
|
T ot a l p o w e r c o n s u mp tio n |
< 20 0 W |
|
D i m en sio ns |
510m m( L ) *41 5 m m ( W) *345 mm ( H) |
|
W e i g h t |
30KG |
|
L if e ti m e |
20 , 000 h o u r s |
|
Warranty |
1 year |
Description
Diamond Laser Inscription is a process of using a very fine precise laser beam to inscribe a Diamond Grading Report Number on the diamond girdle for purposes of identification. The laser inscription is microscopic and totally invisible to the naked eye. It can only be seen with jewelers'10x magnifying loupe.
We USE Cold Diamond Laser Inscription.
Cold laser inscription does not change the colour or clarity grade of a diamond and is considered permanent as it can only be removed by a professional diamond cutter. Superwave uses the latest cold laser technology that allows excellent control during inscription without damaging the diamond (unlike a hot laser). Laser inscription will ensure that the loose diamond matches the Diamond Certificate. If the diamond is set in the ring it will also confirm that it is the same diamond as the one described on the Diamond Certificate.
Laser inscription will never chip or fracture a diamond, because the "cold laser process" (using a short wave length, the very deep-blue part of the spectrum of light-waves) produces no thermal effect on the inscribed gem.
Using advanced laser inscription technology, we can engrave a special or secret message on the diamond for the ultimate personal touch.
Our Advantage
Using self-developed with international leading level Q switch laser device , high quality laser beam, short reaction time less than 3ns,very low heat effect.
Combination use high-power beam expander and dual-band aberration focusing mirror, perfect design make the spotlight small to 5um.
High-precision CNC electromigration X-Y-Z platform, repeat positioning accuracy can be correct to ±1µm.
Using laser and CCD microscope confocal aiming optical system, make diamond carved images and laser engraved lines even small as micron can clearly displayed on the screen simultaneously, operator can see them easily.
Specially designed software, support enter and editor any type of text or graphic, and simple to learn.
The machine lifetime is more than 20,000 hours, Total power consumption less than 200w, no water cooling, maintenance-free.
