Quick Details
-
Product name:
-
Ilsintech Fiber Cleaver Optical Fiber Cutter Swift CI-01
-
Model Type:
-
Optical Fiber Cutter CI-01
-
Blade Life Time:
-
Total 50000 cleaves
-
Holder:
-
Universal Holder
-
Fiber Diameter:
-
125 μm
-
Dimension:
-
58*55*48 mm
-
Cleave Blade:
-
16 positions
-
Cleaving Angle:
-
90°± 0.5°
-
Weight:
-
340g
Quick Details
-
Model Number:
-
TW-MZ-CI01
-
Place of Origin:
-
South Korea
-
Brand Name:
-
ILSINTECH
-
Product name:
-
Ilsintech Fiber Cleaver Optical Fiber Cutter Swift CI-01
-
Model Type:
-
Optical Fiber Cutter CI-01
-
Blade Life Time:
-
Total 50000 cleaves
-
Holder:
-
Universal Holder
-
Fiber Diameter:
-
125 μm
-
Dimension:
-
58*55*48 mm
-
Cleave Blade:
-
16 positions
-
Cleaving Angle:
-
90°± 0.5°
-
Weight:
-
340g

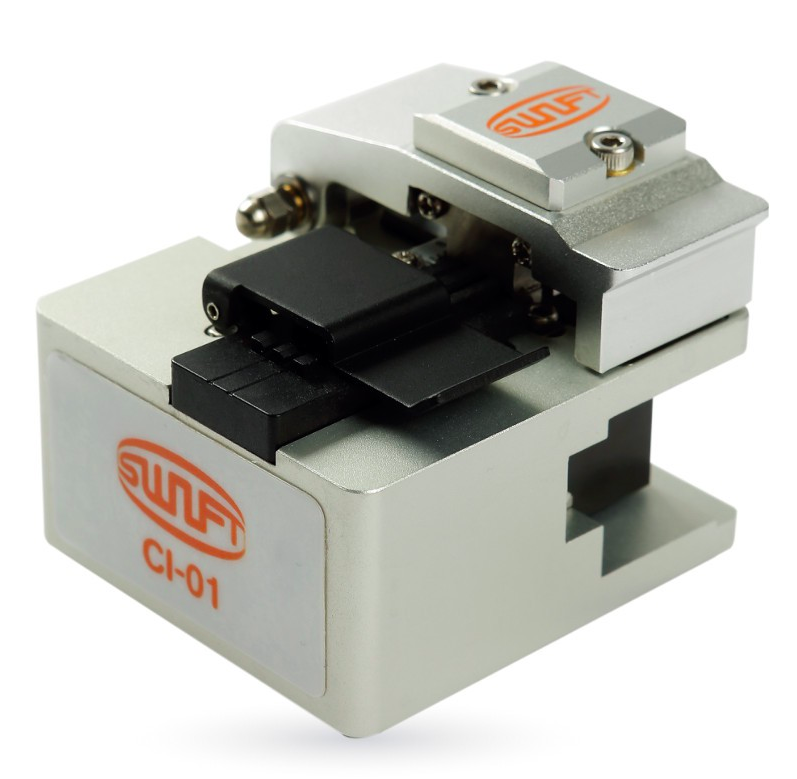

Ilsintech Fiber Cleaver Optical Fiber Cutter Swift CI-01
The Ilsintech Swift / Max Multi-action fiber optic cleaver CI-01, high precision preparation for single fibers or ribbon fiber cables (HI-4 or HI-8 or HI-12 )., standard accessories.
It’s a low cost precision cleaver that gives superb results suitable for fusion splicing. This multi action optical cleaver is ideal if you are working within a budget or you are looking for a back up cleaver.
Specification:
|
Fiber Diameter |
125um |
|
Coating Diameter |
250 ~ 900um |
|
Cleave Angle |
90°± 0.5° |
|
Blade Life time |
50,000 |
|
Dimension |
58×55×48mm |
|
Weight |
340g |
- Stable operation with Multi-Action process
- Typical cleave angle: 90°± 0.5°
- Compact & handy outfit design
- Configuration: single(250~900mm), ribbon(2~12)
- High precision cleaving blade with 16 cleave spots
- Scratch-free anodized body surface
- Adjustable cleave length: 5~20mm
- Simplified blade adjustment & replacements
- Built-in maintenance tool attached: on the bottom
