Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
lfd
-
Model Number:
-
wall roof eps sandwich pane
-
Color:
-
Yellow
-
Core material:
-
Hard Polyurethane Foam
-
Usage:
-
Construction Insulation
-
Material:
-
Metal+pu Foam+Aluminum Foil+color steel sheet
-
Thickness:
-
50/75/100/150/200mm
-
Type:
-
Sandwich Panel Movable Wall
-
Length:
-
Customer's Choice
-
Advantage:
-
Fireproof/Therminal Insulation/Easy installation
Quick Details
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Warehouse
-
Design Style:
-
Modern
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
lfd
-
Model Number:
-
wall roof eps sandwich pane
-
Color:
-
Yellow
-
Core material:
-
Hard Polyurethane Foam
-
Usage:
-
Construction Insulation
-
Material:
-
Metal+pu Foam+Aluminum Foil+color steel sheet
-
Thickness:
-
50/75/100/150/200mm
-
Type:
-
Sandwich Panel Movable Wall
-
Length:
-
Customer's Choice
-
Advantage:
-
Fireproof/Therminal Insulation/Easy installation
Products Description

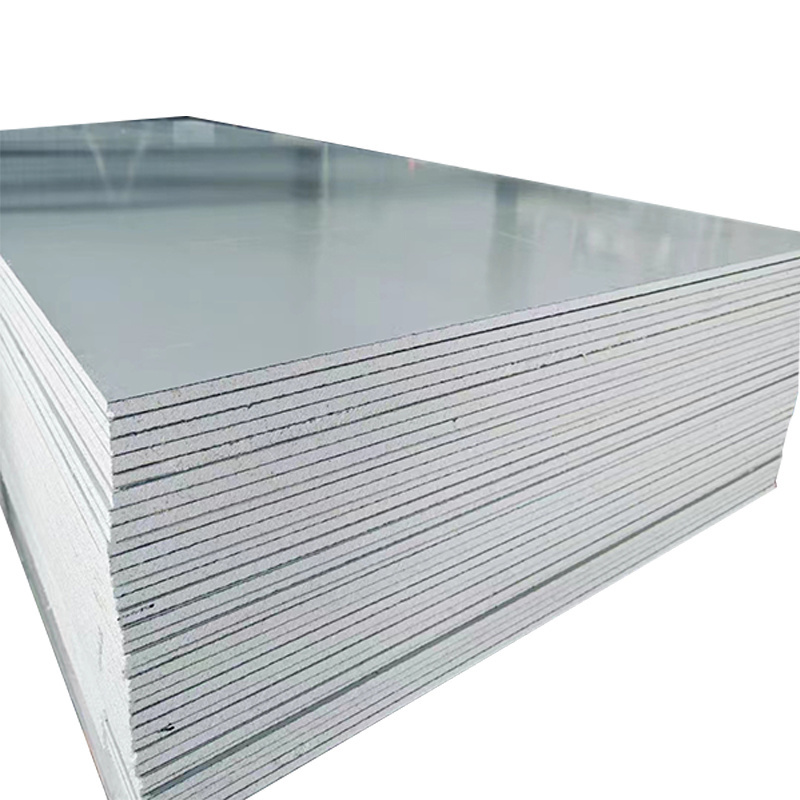

Color Steel Phenolic Sandwich Panels
Phenolic board is made of phenolic foam material, which is a polymer organic rigid aluminum foil foam product, which is foamed by thermosetting phenolic resin. Phenolic insulation board is widely used in developed countries, 40% of fire insulation and sound insulation materials are phenolic resin, new projects give priority to the use of phenolic foam insulation materials, phenolic foam insulation material use temperature: 196 ~ +200 °C, with low temperature environment no shrinkage, no embrittlement characteristics. Phenolic super composite board is an ideal fireproof, heat insulation, energy-saving, beautiful environmental protection green insulation material.
Features
Due to the high closed cell rate of phenolic foam, the thermal conductivity is low (can be lower than 0.030w/mk), good thermal insulation performance, and has a certain degree of water resistance and water vapor permeability, is a better thermal insulation and energy-saving material, phenolic has a benzene ring structure, stable size and stable chemical composition, anti-corrosion and anti-aging, especially resistant to organic solutions, strong acid, weak alkali corrosion, cold storage, cold storage, and used in petrochemical and other industrial pipelines and equipment insulation, building partition walls, exterior wall composite panels, suspended ceiling ceilings, Acoustic panels, etc. have indisputable comprehensive advantages
Product Paramenters
|
Total Thickness
mm
|
External steel sheet
mm
|
Internal steel sheet
mm
|
Weight
Kg/㎡
|
Thermal resistance
㎡ K/W
|
|
68
|
0.6
|
0.45
|
11.1
|
1.21
|
|
78
|
0.6
|
0.45
|
11.5
|
1.62
|
|
88
|
0.6
|
0.45
|
11.9
|
2.04
|
|
Total Thicknes
mm
|
External steel sheet
mm
|
Internal steel sheet
mm
|
Weight
Kg/㎡
|
Thermal resistance
㎡ K/W
|
|
40
|
0.6
|
0.45
|
10.7
|
1.62
|
|
50
|
0.6
|
0.45
|
11.2
|
2.04
|
|
60
|
0.6
|
0.45
|
11.5
|
2.46
|
Wall panel cross-sections
Roof panel cross-sections
