Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SINOMADA
-
Model Number:
-
XG4221L
-
Dimension(Long * Breadth * High):
-
6447x3725x3554
-
Rated revelation:
-
2100 rpm
Quick Details
-
Machine Weight:
-
28000 KG
-
Dozing Capacity:
-
6.5m³
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SINOMADA
-
Model Number:
-
XG4221L
-
Dimension(Long * Breadth * High):
-
6447x3725x3554
-
Rated revelation:
-
2100 rpm

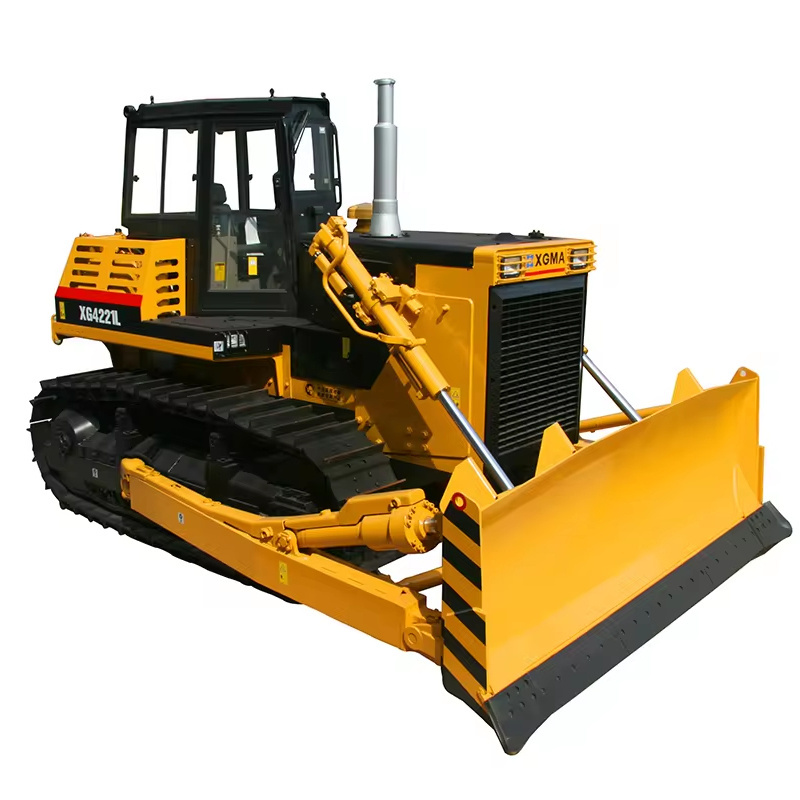

XGMA China 220hp Crawler Bulldozer XG4221L
PRODUCT DESCRIPTION
△ Powerful, traction favorable, Cum-mins engine, high versatility
△ Adopt widened tracks, reducing ground bi ya of bulldozer, guaranteed the bulldozer good through,good traction
△ Using four o'clock elastic support console, operator comfort and good.
△ Comprehensive protection protective frame, protective frame extend to protect the front cover, the driver trilateral plus nets to prevent branches hurt driver , to ensure safety
△ Round protection hood, ensure adequate ventilation of the engine cooling system,meanwhile preventing mosquitoes, rotten leaves of tropical forests enter into the engine body.effect the work and heat dissipation of machine.
△ Blade fence effectively protect front of the machine is not being hurt
△ Mechanical winch is driven by a walking device through the output gearbox to drive the winch, the driving force, the inner tuber ope maximum tension for 350 kN, effectively improve work performance.
△ Adopt widened tracks, reducing ground bi ya of bulldozer, guaranteed the bulldozer good through,good traction
△ Using four o'clock elastic support console, operator comfort and good.
△ Comprehensive protection protective frame, protective frame extend to protect the front cover, the driver trilateral plus nets to prevent branches hurt driver , to ensure safety
△ Round protection hood, ensure adequate ventilation of the engine cooling system,meanwhile preventing mosquitoes, rotten leaves of tropical forests enter into the engine body.effect the work and heat dissipation of machine.
△ Blade fence effectively protect front of the machine is not being hurt
△ Mechanical winch is driven by a walking device through the output gearbox to drive the winch, the driving force, the inner tuber ope maximum tension for 350 kN, effectively improve work performance.
Exhibition
PRODUCT SPECIFICATION
|
Type
|
|
Item
|
|
Unit
|
XG4221L
|
||
|
|
|
Operating weight
|
|
kg
|
28000
|
||
|
Engine
|
|
Model
|
|
|
Cummins NT855-C280
|
||
|
|
|
Rated speed
|
|
r/min
|
1800
|
||
|
|
|
Rated power
|
|
Kw
|
162
|
||
|
Traveling speed
|
|
Forward gear
|
I
|
Km/h
|
0~3.6
|
||
|
|
|
|
II
|
Km/h
|
0~6.5
|
||
|
|
|
|
III
|
Km/h
|
0~11.2
|
||
|
|
|
Reserve gear
|
I
|
Km/h
|
0~4.3
|
||
|
|
|
|
II
|
Km/h
|
0~7.7
|
||
|
|
|
|
III
|
Km/h
|
0~13.2
|
||
|
Dimension
(Length*width*height) |
|
Mechanical winch
|
|
Mm
|
6447x3725x3554
|
||
|
|
|
Hydraulic winch
|
|
Mm
|
5851x3725x3454
|
||
|
Dozer device
|
|
Blade width
|
|
Mm
|
3725
|
||
|
|
|
Blade height
|
|
Mm
|
1315
|
||
|
|
|
The max tilting of blade
|
|
Mm
|
＞735
|
||
|
|
|
Single shovel capacity
|
|
M³
|
6.4
|
||
|
Other performance
|
|
Minimum ground clearance
|
|
Mm
|
405
|
||
|
|
|
Track width
|
|
Mm
|
610
|
||
|
|
|
Total weight
|
|
Kg
|
27500
|
||
|
|
|
Ground pressure
|
|
Mpa
|
0.077
|
||
|
|
|
Min.turing radius
|
|
Mm
|
3300
|
||
|
|
|
Grade ability
|
|
°
|
30
|
||
|
|
|
Productivity (theoretical value haul 40M)
|
|
M³/h
|
330
|
||
|
Mechanical winch
|
Model
|
|
|
|
TJM20
|
||
|
|
Rope diameter x length
|
|
|
Mm x m
|
28x70
|
||
|
|
Roller Rally
|
|
|
KN
|
350
|
||
|
|
Rope working speed
|
|
|
m/min
|
0-15.9
|
||
|
|
Clutch form
|
|
|
|
Hydraulic separation combined type
|
||
|
|
Weight
|
|
|
Kg
|
3000
|
||
