Quick Details
-
Voltage:
-
380V~3N/50Hz/60Hz Customizable
-
Power:
-
Depends on model parameter
-
Dimension(L*W*H):
-
Depends on model parameter
-
Weight (KG):
-
1200
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Product name:
-
Spray Dryer
-
Raw material:
-
Liquid Form Material
-
Feature:
-
Low Energy High Efficiency
-
Item:
-
Industrial Spray Dryer
-
Usage:
-
Powder making
-
Function:
-
Continuous
-
Temperature range:
-
50-230C
-
Water evaparation:
-
50kg/h
Quick Details
-
Type:
-
Spray Drying Equipment
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
WINTECH
-
Voltage:
-
380V~3N/50Hz/60Hz Customizable
-
Power:
-
Depends on model parameter
-
Dimension(L*W*H):
-
Depends on model parameter
-
Weight (KG):
-
1200
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Product name:
-
Spray Dryer
-
Raw material:
-
Liquid Form Material
-
Feature:
-
Low Energy High Efficiency
-
Item:
-
Industrial Spray Dryer
-
Usage:
-
Powder making
-
Function:
-
Continuous
-
Temperature range:
-
50-230C
-
Water evaparation:
-
50kg/h
Product Overview

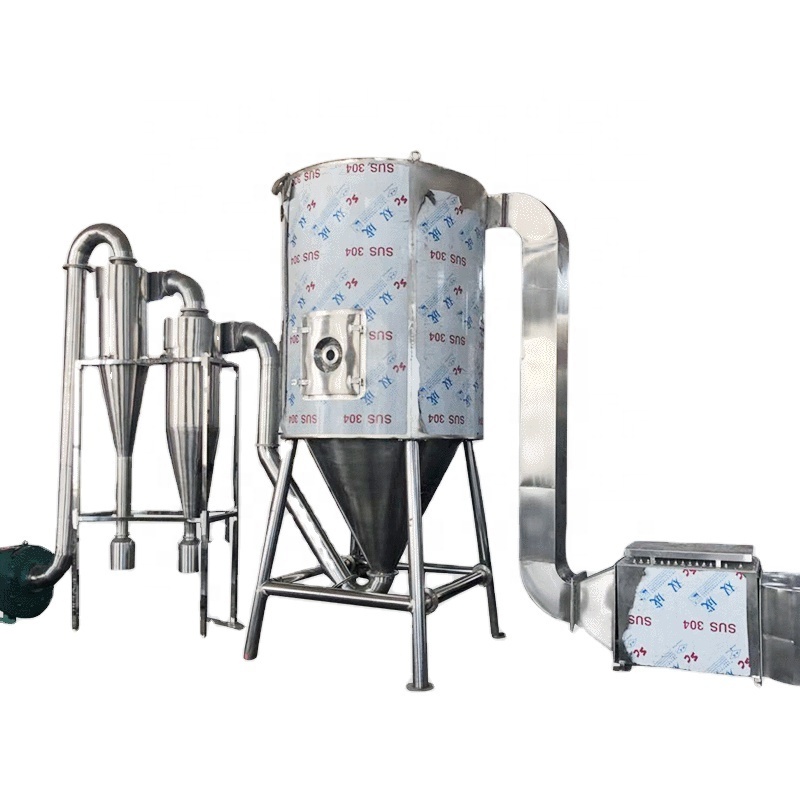

Made in China Stainless Steel Spray Dryer
Spray drying process is the widest used in the liquid forming process and in drying industry. The drying technology is most
suitable for powder, particle products from materials, such as,solution, emulsion, SC and pumpable paste states material. For this reason, when the particle size and distribution of the final product, their residual water contents, the stacking density and particle shape must meet the precision standard, spray drying process is one of the most desired processes.
FEATURES AT A GLANCE
Right elevation
Front elevation
Left elevation
Working Principle
After filtering and heating, the air enters into air distributor on top of the Drying Equipment. The hot air enters into the
drying tower spiral form and uniformly. By .passing through high-speed centrifugal atomizer on top of tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads. Through the very short time of contacting with heating air,
the material can be dried into final products. The final products will be discharged continuously from the bottom of drying tower
and from cyclone separator.
The waste gas will be discharged from exhaust fan.
Product Parameters
|
Model
|
WTPG-5
|
WTPG-25
|
WTPG-50
|
WTPG-100
|
WTPG-150
|
||||
|
Inlet temperature
|
140-350 ℃ automatic control
|
|
|
|
|
||||
|
Outlet temperature
|
~80-90℃
|
|
|
|
|
||||
|
Max water evaporation capacity
|
5 kg/h
|
25kg/h
|
50kg/h
|
100kg/h
|
150kg/h
|
||||
|
Centrifugal spraying nozzle transmission mode
|
Compressed air
transmission
|
Mechanical transmission
|
|
|
|
||||
|
Rotation speed
|
25000 r.p.m
|
18000 r.p.m
|
18000 r.p.m
|
18000 r.p.m
|
15000 r.p.m
|
||||
|
Spraying desc diameter
|
50 mm
|
100 mm
|
120 mm
|
140 mm
|
150 mm
|
||||
|
Heat supply
|
Electric
|
Electric+steam
|
Electric+steam, fuel oil and gas
|
|
|
||||
|
Max electric heating power
|
9 Kw
|
36 Kw
|
63 Kw
|
81 Kw
|
99 Kw
|
||||
|
Overall dimensions (L*W*H) m
|
1.8*0.93*2.2
|
3*2.7*4.26
|
3.7*3.2*5.1
|
4.6*4.2*6
|
5.5*4.5*7
|
||||
|
Dried powder collecting
|
≥95%
|
|
|
|
|
||||
APPLICATION SCOPE
Food industry:
fat milk powder, collagen, cocoa milk powder, emulsion, pig blood powder, egg white (yellow) and so on.
Food and plants:
oats, chicken juice, coffee, instant tea, flavored meat, protein, soybean, peanut protein, hydrolysate, etc.
Sugar:
corn syrup, corn starch, glucose, pectin, maltose, potassium sorbate, etc.
Plastic resin:
AB, ABS emulsion, urea formaldehyde resin, phenolic resin, rubber (urea) formaldehyde resin, polyethylene, polyfluoroethylene and so on.
Chemical industry:
sodium fluoride (potassium), basic dye pigment, compound fertilizer, formaldehyde silicic acid, catalyst, sulfuric acid agent, amino acid, white carbon black, etc.
Ceramics:
alumina, ceramic tile materials, magnesia, talcum powder, etc.
