SKYLAB VG02 Low Energy Bluetooth Beacon for Indoor Positioning Support Eddystone iBeacon Dustproof Waterproof iBeacon

SKYLAB VG02 Low Energy Bluetooth Beacon for Indoor Positioning Support Eddystone iBeacon Dustproof Waterproof iBeacon

Item No.	Picture	Dimension	Color	Shape	Battery	Interval Time Options	Lifetime of Battery	UUID /Major /Minor	APP/SDK	Waterproof
Beacon VG01		47.5*16.1mm (R*H)	White	Round	CR2477	100-1000ms is avaliable Default is 200ms	if setup interval time as 200ms can last 12 months	Progra-mmable	Yes, the APP and SDK is the same	No

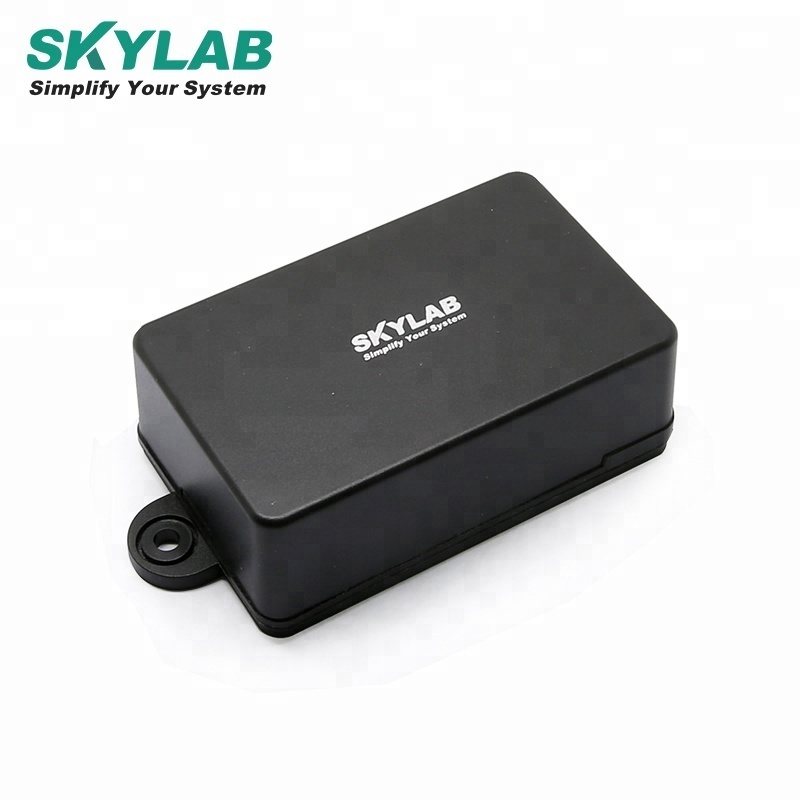

Beacon VG02		72*45*26mm (L*W*H)	Black	Rectangle	2*AA	100-1000ms is avaliable Default is 500ms	if setup interval time as 200ms can last 46 months	Progra-mmable	Yes, the APP and SDK is the same	Yes

Default Parameters
Name:Skylab Beacon
UUID:FDA50693A4E24FB1AFCFC6EB07647825
Major:10044
Minor:47558
Advertise interval:200 ms
Measured power:-61 dBm
Transmission power: 0 dBm
Password:1234

Parameters Range
Name:1~12 characters.
UUID:16 bytes Hex String format
Major:0~65535
Minor:0~65535
Advertise interval:100ms~1000ms
Measured power:-100~-30dBm
Tramsmission power:-30,-20,-16,-12,-8,-4,0,4dBm
Password:4 characters

Connection
The Beacon being connected should be happened with a password required action within 30 seconds, so that user get the operation right. Timeout or a wrong password will cause a disconnection from the Beacon. Configure Beacon’s parameters after connection completed, these parameters will be broadcasted when theBeaconbeingadvertising.

APP Main Interface Details
1.Start/Stop scanning icon
2.Settingsicon
3.Beaconname
4.MACaddress
5.Batterylevel
6.RSSIvalue
7.Advertisinginterval
8.Transmissionpower
9.Measuredpower
10.Major&Minorvalue
11.UUID

VG02 is a Bluetooth Beacon device. Bluetooth Beacon is a broadcasting protocol which is based on BLE protocol, also referred to a kind of BLE peripheral device that has this protocol. VG02 as a Bluetooth Beacon device, it is usually placed in a certain place, and it broadcasts its beacon signals like UUID, Major, Minor, RSSI etc. to surroundings continuously, and it can not be entered to the connection state to any BLE central device, the advertising data are arranged according to certain rules .

SKYLAB Beacon is a Phone APP for configuring VG02 which is made by Skylab R&D Team. Use this

APP to connect to VG02 and modify its parameters such as UUID, Major, Minor, Name and so on. These parameters will be advertised after the VG02 being advertising condition.
