Quick Details
-
Voltage:
-
380V/415V , 50/60HZ
-
Power:
-
43 Kw
-
Dimension(L*W*H):
-
3800*2300*2300mm( L*W*H)
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Product name:
-
Electrostatic tunnel electric powder coating curing oven for aluminum
-
Application:
-
powder coating baking paint curing
-
Color:
-
Client's Requirements
-
Keywords:
-
Painting Production Line
-
Coating color:
-
customized as requirement
-
Advantage:
-
High-efficiency
-
Function:
-
baking
-
Control System:
-
Electric Panel
-
Technology:
-
Automatic Spraying Line
-
Certification:
-
CE ISO9001
Quick Details
-
Machine Type:
-
oven
-
Place of Origin:
-
China
-
Brand Name:
-
TARGET
-
Voltage:
-
380V/415V , 50/60HZ
-
Power:
-
43 Kw
-
Dimension(L*W*H):
-
3800*2300*2300mm( L*W*H)
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Product name:
-
Electrostatic tunnel electric powder coating curing oven for aluminum
-
Application:
-
powder coating baking paint curing
-
Color:
-
Client's Requirements
-
Keywords:
-
Painting Production Line
-
Coating color:
-
customized as requirement
-
Advantage:
-
High-efficiency
-
Function:
-
baking
-
Control System:
-
Electric Panel
-
Technology:
-
Automatic Spraying Line
-
Certification:
-
CE ISO9001

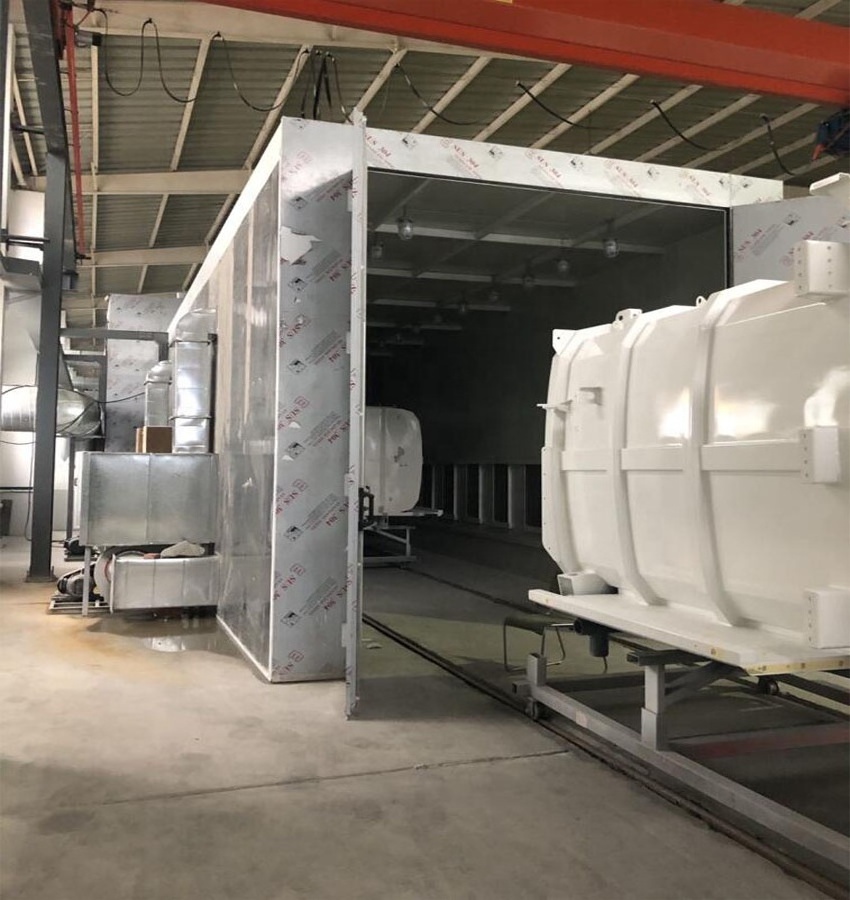

Electrostatic tunnel electric powder coating curing oven for aluminum profile
As an experienced manufacturer of powder coating ovens,TARGET has been in this area for more than 15 years,exporting our ovens to Australia,America,Germany,Asia,Africa and many other europe countries.
We hold true to the product quality first, customer-focused purpose and dedication to provide quality services to our clients all the time,and our ovens are highly appraised by our cuntomers. There are many different styles and options for you.If you have any questions, please no hesitate to contact us!
Specification:
|
Electic Model : TG-TC5 ( Optional : Electic , LPG , Diesel ) |
|
|
Inner size |
3500*2000*2000mm ( L*W*H) |
|
Outter size |
3800*2300*2300mm ( L*W*H) |
|
Total power |
43 Kw |
|
Door type |
One sided ( Optional : two sided ) |
|
Panel |
Outer wall : Galvanized steel, Electrostatic spraying Inner wall : SUS#304 stainless steel The middle with 150mm thickness rock wool board insulation layer |
|
Heating system |
Stainless steel electric heating pipe . 40 Units*1kw=40Kw , Max. 250 ℃ , Heating time : 20-30 min (150-250 ℃ ) Voltage :,380V/415V , 50/60HZ |
|
Tempe. control accuracy |
±1°C |
|
Temp.-range |
Rm. Temp~250 ℃ |
|
Temp. uniformity |
±2°C |
|
Circulation system |
1 set ,3Kw high-temperature fan 1 set Vaporization furnace |
|
Control system |
Temperature alarm;Thesensorsystem,Stop button;Process setting system: temperature stop automatically . |
|
Accessories |
Complete seal device, door ,lock .etc. |
Packaging&Shipping:
Standard export package:
Why Choose TARGET Equipment :
1. Easy way to submit the order , you can submit the order list in our website , after we get the list, we will issue the PI to you to save your time !
2. Warranty. All TARGET Equipment have two years warranty. Longlife time service. 15 years servce team.
3. Delivery time . Standard equipment 7 days , Truck /Bus equipment need customize,about 15--20 days after confirm the order
4. Payment term. T/T, L/C , Third-party credit insurance , etc.
5. Installation , we will supply full 3D drawing, CD after confirm the order ,that will easy for you to install the whole equipment .
5. Oversea service will supply if need.
