Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
dixin
-
Voltage:
-
380V, 380V 50HZ 3P
-
Dimension(L*W*H):
-
5800*1000*1500mm
-
Weight:
-
3500 kg
-
Feeding width:
-
as drawing
-
Marketing Type:
-
New Product 2023
-
After-sales Service Provided:
-
Engineers
-
Roller material:
-
45#steel Chrome Plated
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Shaft material:
-
45# Steel Outer Diameter: 75mm
-
Cutting type:
-
Hydraulic Shearing
-
Raw material:
-
PPGI PPGL GI GL
-
Control system:
-
PLC(imported Brand)
-
Main frame:
-
350H Steel
-
Application:
-
Construction Panel
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
20M/MIN
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
dixin
-
Voltage:
-
380V, 380V 50HZ 3P
-
Dimension(L*W*H):
-
5800*1000*1500mm
-
Weight:
-
3500 kg
-
Feeding width:
-
as drawing
-
Marketing Type:
-
New Product 2023
-
After-sales Service Provided:
-
Engineers
-
Roller material:
-
45#steel Chrome Plated
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Shaft material:
-
45# Steel Outer Diameter: 75mm
-
Cutting type:
-
Hydraulic Shearing
-
Raw material:
-
PPGI PPGL GI GL
-
Control system:
-
PLC(imported Brand)
-
Main frame:
-
350H Steel
-
Application:
-
Construction Panel
Products Description

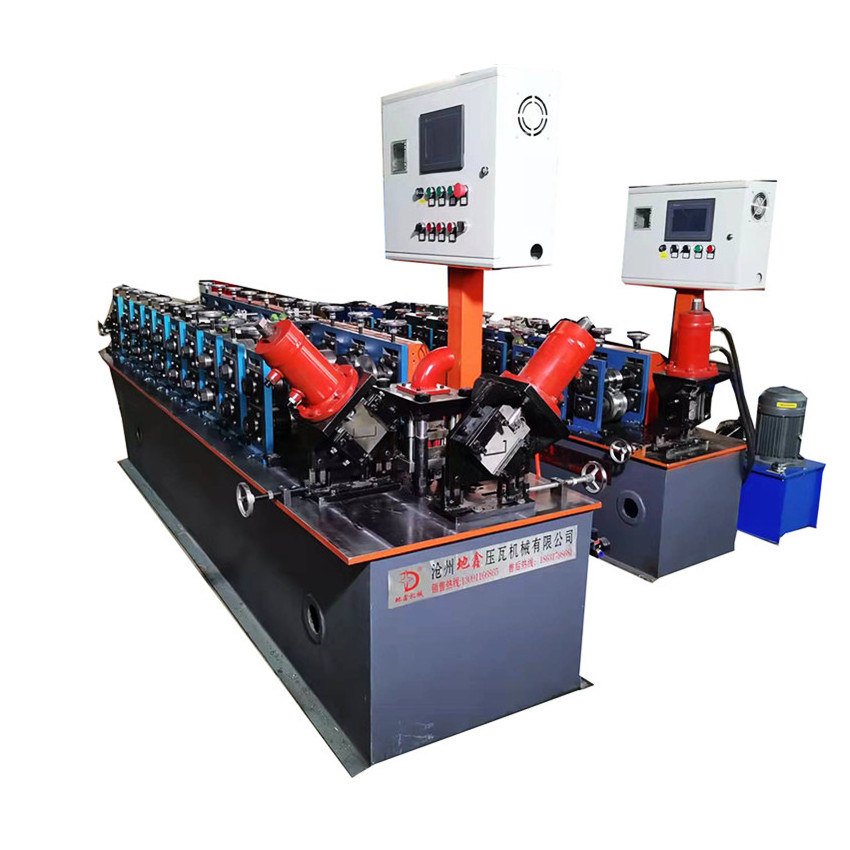

Stud Cold Roll Forming Machine Metal Stud And Track Roll Forming Machine Produces Multiple Profiles In One Machine
This Metal Profile CD UD UW CW Roll Forming Machine c Channel Roll Forming Machine Frame Steel Machine is for making the stud and tracks for house frame.Usually have the CU,CW for the wall frame building,and CD/UD for the ceil building.
Details Images
Working Flow
|
Machine
|
Parameters
|
|
|
|
|||
|
Product name
|
Metal sheet and track full automatic steel stud roll forming machine
|
|
|
|
|||
|
Suitable to process
|
Color alu-zinc steel strips
|
|
|
|
|||
|
Control System
|
PLC control (Delta)
|
|
|
|
|||
|
Rollers
|
13 Rows plus leveling device
|
|
|
|
|||
|
Shaft Diameter
|
50 mm
|
|
|
|
|||
|
Thickness of the plate
|
0.3-0.8mm
|
|
|
|
|||
|
Hydraulic Pressure
|
10-12MPa
|
|
|
|
|||
|
Roller Standard
|
45#steel with chrome coating heat treatment
|
|
|
|
|||
|
Feeding width
|
Based on design drawing
|
|
|
|
|||
|
Cutter Blade matrial
|
Cr 12 High Grade Steel
|
|
|
|
|||
|
Main motor Power
|
5.5Kw
|
|
|
|
|||
|
Voltage
|
380V 50Hz 3phases or customized
|
|
|
|
|||
|
Overall Size
|
2600kg
|
|
|
|
|||
|
Servo motor
|
3Kw
|
|
|
|
|||
|
Speed
|
10-15m/min
|
|
|
|
|||
Manufacturing Technique
Manual Decoiler
1.Capacity: 5 tons
2. Coil inner diameter:450-550mm
3. Coil outer diameter: 1500mm
4. Coil width: 1250mm(as customers' profile drawing)
5. Structure: welded by the steel plates and profiled bar.
Feeding Device
Usage: Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.
Roll Forming Machine
Feature: Ensure stability, precision and lifetime.
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Cutting Device
1. Hydraulic motor power: 3kw
2. Tolerance: 1mm
3. Blade mould material: GCr12MoV
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Hydraulic Station
1. Hydraulic motor Power: 3kw
2. Hydraulic oil: 46#
3. Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And three sets of electromagnetism valves.
Electric Control System
1. Control System: By PLC
2. PLC language: English and Chinese (or as required)
3. Function: Automatic length and quantity measurement
4. Feature: Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.
