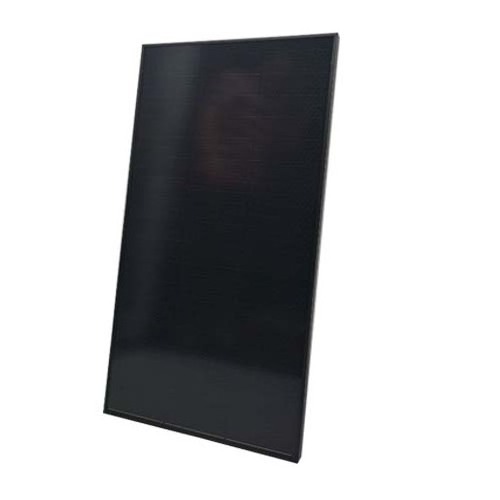

160 watt solar panel pv panel Mono 100 w 200 w Solar Panel 12V 24V 36V
160 watt solar panel pv panel Mono 100 w 200 w Solar Panel 12V 24V 36V
160 watt solar panel pv panel Mono 100 w 200 w Solar Panel 12V 24V 36V
160 watt solar panel pv panel Mono 100 w 200 w Solar Panel 12V 24V 36V
160 watt solar panel pv panel Mono 100 w 200 w Solar Panel 12V 24V 36V
160 watt solar panel pv panel Mono 100 w 200 w Solar Panel 12V 24V 36V
160 watt solar panel pv panel Mono 100 w 200 w Solar Panel 12V 24V 36V
160 watt solar panel pv panel Mono 100 w 200 w Solar Panel 12V 24V 36V

160 watt solar panel pv panel Mono 100 w 200 w Solar Panel 12V 24V 36V

FOB Reference Price: Get Latest Price
≥1 Pieces
US $49.6
≥11 Pieces
US $48.8
≥101 Pieces
US $48
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
Solarfam
Model Number:
SZ-160-36M
Place of Origin:
Jiangsu, China
Panel Dimensions:
1230*670*30mm
Nominal Power:
160W
Cell Type:
Monocrystalline
Maximum Power Current (Impp):
7.27A
Maximum Power Voltage (Vmpp):
22V
Open-circuit Voltage (Voc):
26.4V
Connector Type:
MC4 / MC4 Compatible
Module Structure:
Aluminum Frame / Glass / EVA / Backsheet (White)
Output Tolerance:
+3%
Working Temperature:
-40℃~+80℃
Junction Box:
≥IP67
Certificate:
CE

Quick Details

Type:
PERC
Panel Efficiency:
21.4%
Warranty:
5 years
Brand Name:
Solarfam
Model Number:
SZ-160-36M
Place of Origin:
Jiangsu, China
Panel Dimensions:
1230*670*30mm
Nominal Power:
160W
Cell Type:
Monocrystalline
Maximum Power Current (Impp):
7.27A
Maximum Power Voltage (Vmpp):
22V
Open-circuit Voltage (Voc):
26.4V
Connector Type:
MC4 / MC4 Compatible
Module Structure:
Aluminum Frame / Glass / EVA / Backsheet (White)
Output Tolerance:
+3%
Working Temperature:
-40℃~+80℃
Junction Box:
≥IP67
Certificate:
CE
Products Description

Performace
Higher module efficiency and compact size.
Weakened hot-spot effect, lower module failure rate and increased stability by shingle-tech .
Special connection method lowers the internal resistance and ensures better performance than traditional connection with busbar.
IP67 rated junction box, reliable cables and standard MC4 connectors improve the stability.
Warranty
5 years Manufacturer Warranty.
Warranty on Electrical Performance：10 years 90%+ 25 years 80% of power output.

Manufacturing
Original cell sorting system ensures the best electric cell match.
EL-Testing before packing.
Comprehensive module power testing, 100% positive output tolerance guaranteed.
Module Name
SZ-20-36M
SZ-30-36M
SZ-60-36M
SZ-80-36M
SZ-100-36M
SZ-160-36M
SZ-190-36M
Nominal Power
20W
30W
60W
80W
100W
160W
190W
Cell Efficiency
21.40%
21.40%
21.40%
21.40%
21.40%
21.40%
21.40%
Maximum Power Current (Impp)
1.01A
1.34A
3.21A
3.73A
5.19A
7.27A
9.60A
Maximum Power Voltage (Vmpp)
19.8V
22.4V
22.1V
21.45V
19.25V
22V
19.8V
Open-circuit Voltage (Voc)
23.4V
26.8V
18.7V
25.35V
22.75V
26.4V
23.4V
Short-circuit Current (Isc)
1.34A
1.83A
3.73A
4.22A
5.70A
7.78A
10.09A
Maximum System Voltage
1000V






Output Tolerance
+3%
Cell Type
Monocrystalline
Connector Type
MC4 / MC4 Compatible
Module Structure
Aluminum Frame / Glass / EVA /Backsheet (White)
Junction box rating
≥IP67
Number of Diodes
One
Working Temperature
-40℃~+80℃
Application
