Quick Details
-
Model Number:
-
CMS6600B
-
Place of Origin:
-
Hebei, China
-
Feature:
-
PC-based EMG/EP measuring system
-
Product name:
-
Emg machine
-
Function:
-
4 channels
-
Certificate:
-
CE ISO
-
Language:
-
English
-
Application:
-
emg system
-
Weight:
-
7kg
-
Item:
-
Body Element Measurer
-
Package:
-
Packing with carton
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Brand Name:
-
CONTEC
-
Model Number:
-
CMS6600B
-
Place of Origin:
-
Hebei, China
-
Feature:
-
PC-based EMG/EP measuring system
-
Product name:
-
Emg machine
-
Function:
-
4 channels
-
Certificate:
-
CE ISO
-
Language:
-
English
-
Application:
-
emg system
-
Weight:
-
7kg
-
Item:
-
Body Element Measurer
-
Package:
-
Packing with carton
Product Description

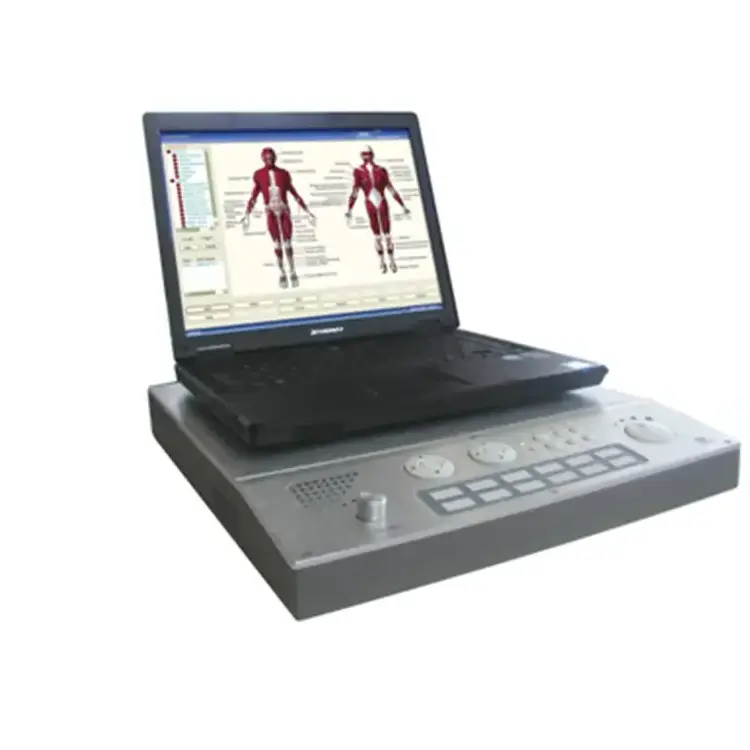

The equipment records bioelectricity activity of nerve muscle for determining its function state, which combines with nerve conduction speed, to give patient an auxiliary diagnosis.
Checking contents: EMG(electromygram), MCS(motor nerve conductor velocity), SCS(sensory nerve conductor velocity), F wave,Hreflex, RNS(repetitive nerve stimulation), Blink Reflex, VEP(visual evoked potential), BAEP(brainstem auditory evoked potential), SEP (somatosensory evoked potential), etc.
Features:
1. Professional EMG/EP operation platform and perfect test items, complete each test in the shortest time.
2. Neuro and muscle navigation system, convenient in selecting test part.
3. Powerful normal values system, contrast with normal data automatically.
4. Flexible software design, configure system parameters according to requirements.
5. High-speed data collection, electromagnetic interference suppression, Photoelectric isolation and low noise.
6. Integrative hardware system, compact in configuration and easy in moving.
Performance:
* Main system part
A/D conversion resolution 16 Bit
Sampling ratio 200kHz
Analysis time 5-5000ms
Stimulating frequency 0.1-50Hz
* Amplifier part
Four-channel
Sensitivity 0.05μV-20mV/Grid
Earth noise EMG <= 4μV(Vpp)
EP <=0.1μV(Vpp) (1000 times in average)
Common-mode rejection ratio >= 100dB
50Hz Ban wave setting:
Upper limit for Filter-frequency 20kHz
Lower limit for Filter-frequency 1Hz
Gain amplifies 25 times-400000 times
* Stimulator part
Constant current 0.2-100mA
Pulse width 50-1000μS
Short circuit and overloading protection
* Auditory Stimulator
Stimulation wave 40Hz Short, Sound Stim
Stimulation polarity nondense wave, dense wave and alternant wave.
Sound strength 40-120db (5db per level)
Stimulation mode left, right, left & right
Frequency of 40Hz carrier wave 500-8000Hz
* Visual stimulator
Mode tessellation, horizontal bar and vertical bar.
Stimulation view all-view, half-view and quarter-view
Resolution 3x4, 6x8, 12x16, 24x32, 48x64
Flash stimulator all quench,left light,right light,l&r light
Physical characteristic:
Dimension 420mm*350mm*46mm(L×W×H)
Net weight 6KG
Accessories:
1. Disk
2. Power Cord
3. Power Adapter
4. USB Cable
5. Audio Cable
6. Earth Cable
7. Current Stimulator
8. One-off Bipolar Needle Electrode D039035408, 0.35*40mm, D039060706, 0.60*70mm
9. Reuseable Bipolar Needle Electrode R039035408, 0.35*40mm, R039060706, 0.60*70mm
10. Concentric Needle Connecting Wire
11. 1mm Connecting Lead Wire
12. Disc Electrode
13. Ring Electrode
14. Surface Electrode
15. Ground Electrode(Include lead cable)
16. One-off Unipolar Needle Electrode
17. From 1 to 2 Conversion Cable
18. Surface Electrode Conversion Cable
19. Fuse 0.1A/250V, 5*20mm
20. Fuse F1.6AL250V, 5*20mm
21. Flash Stimulator
22. Audio Stimulator
