Quick Details
-
Model Number:
-
HB2810-16C
-
Brand Name:
-
THT
-
Standard or Nonstandard:
-
Standard
-
Product name:
-

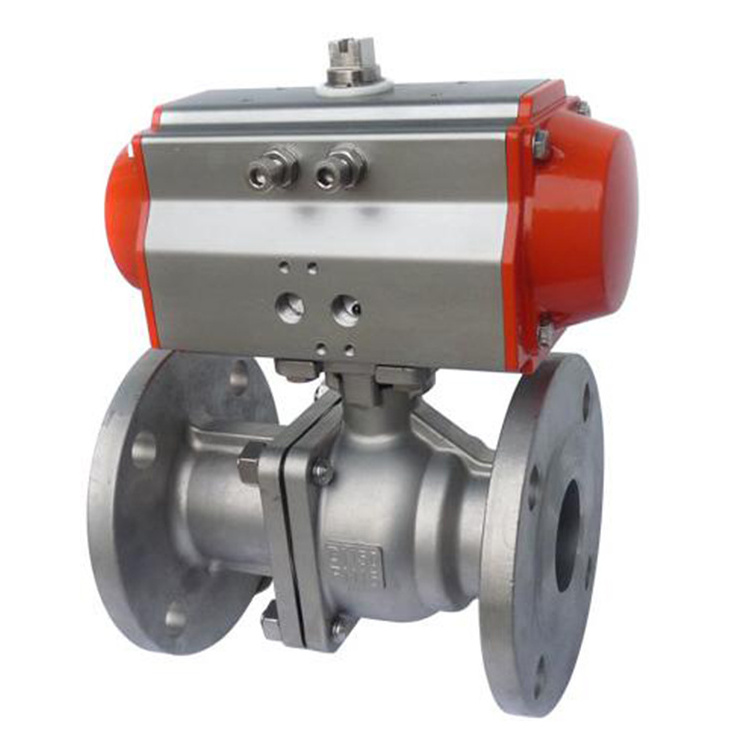

Carbon Steel air actuated pneumatic ball valve
-
Body material:
-
Carbon Steel
-
Certificate:
-
ISO9001:2008 CE API
-
Connection:
-
Flange Ends
-
Standard:
-
ANSI BS DIN JIS
-
Medium:
-
Water Oil Gas
-
Size:
-
DN15-250
-
Type:
-
Pneumatic actuator ball valve
-
norminal pressure:
-
PN16,PN25, PN40
Quick Details
-
Port Size:
-
DN15-250
-
Warranty:
-
12 months
-
Place of Origin:
-
Tianjin, China
-
Model Number:
-
HB2810-16C
-
Brand Name:
-
THT
-
Standard or Nonstandard:
-
Standard
-
Product name:
-
Carbon Steel air actuated pneumatic ball valve
-
Body material:
-
Carbon Steel
-
Certificate:
-
ISO9001:2008 CE API
-
Connection:
-
Flange Ends
-
Standard:
-
ANSI BS DIN JIS
-
Medium:
-
Water Oil Gas
-
Size:
-
DN15-250
-
Type:
-
Pneumatic actuator ball valve
-
norminal pressure:
-
PN16,PN25, PN40
Product Description
Brief introduction
According to the characteristics of the
pneumatic ball valve
, it is divided into two types, namely, the quick acting type and the pneumatic type. When the
flanged pneumatic ball valve
is opened, the valve channel and the connecting pipe diameter form a through port, and the medium can flow through without resistance. In addition to oil, gas, liquid and other media, it is also suitable for controlling sewage and medium containing fibrous impurities. Fl
anged pneumatic ball valve
is equipped with valve positioner to input 4-20mA analog signal, which can control the valve core opening of ball valve from 0 to 90 degrees, so as to achieve the proportional adjustment of medium flow, temperature, pressure and other parameters.
Features
1. According to the working conditions, the
flanged pneumatic ball valve
can be divided into soft seal (- 30 ~ 180 ℃) and hard seal (- 40 ~ 450 ℃), so as to be used in different media, temperature and pressure.
2. The power source of
flanged pneumatic ball valve
is gas, which will not contact with sparks. Theoretically, it has explosion-proof function and is relatively safe. And if there is air leakage, the gas can be directly discharged, no pollution to the environment, at the same time, it has high safety.
3. From the perspective of valve diameter, due to torque force, manual ball valve can only be equipped with ball valve with diameter below DN300, while
flanged pneumatic ball valve
can be configured with a wide range of diameters, including not only small diameter ball valve, but also large diameter ball valve. At present, the height of pneumatic ball valve can reach DN 1200.
Optional Accessories of pneumatic ball valve
1.Limit switch: remote feedback switch signal (explosion proof optional)
2. Solenoid valve: two position five way for double action and two position three-way for single action (explosion-proof optional)
3. Positioner: input 4 ~ 20mA signal to realize valve regulation function
4. Manual mechanism: manual operation mechanism, which can be opened or closed manually
|
Performance specification
|
|
|
|
|
||||
|
Nominal Pressure
|
|
PN10 / PN16/150LB
|
|
|
||||
|
Testing Pressure
|
|
Shell: 1.5 times rated pressure,
Seat: 1.1 times rated pressure. |
|
|
||||
|
Working Temperature
|
|
≤425°C
|
|
|
||||
|
Suitable Media
|
|
water, oil, gas etc.
|
|
|
||||
|
Material of main parts
|
|
|
|
|
||||
|
Body material
|
|
|
WCB
|
|
||||
|
Ball material
|
|
|
Stainless steel
|
|
||||
|
Sealing material
|
|
|
PTFE
|
|
||||
|
Stem material
|
|
|
Stainless steel
|
|
||||
