Applicable Technical Parameters
|
|
|
|
|||
|
Name&Model
|

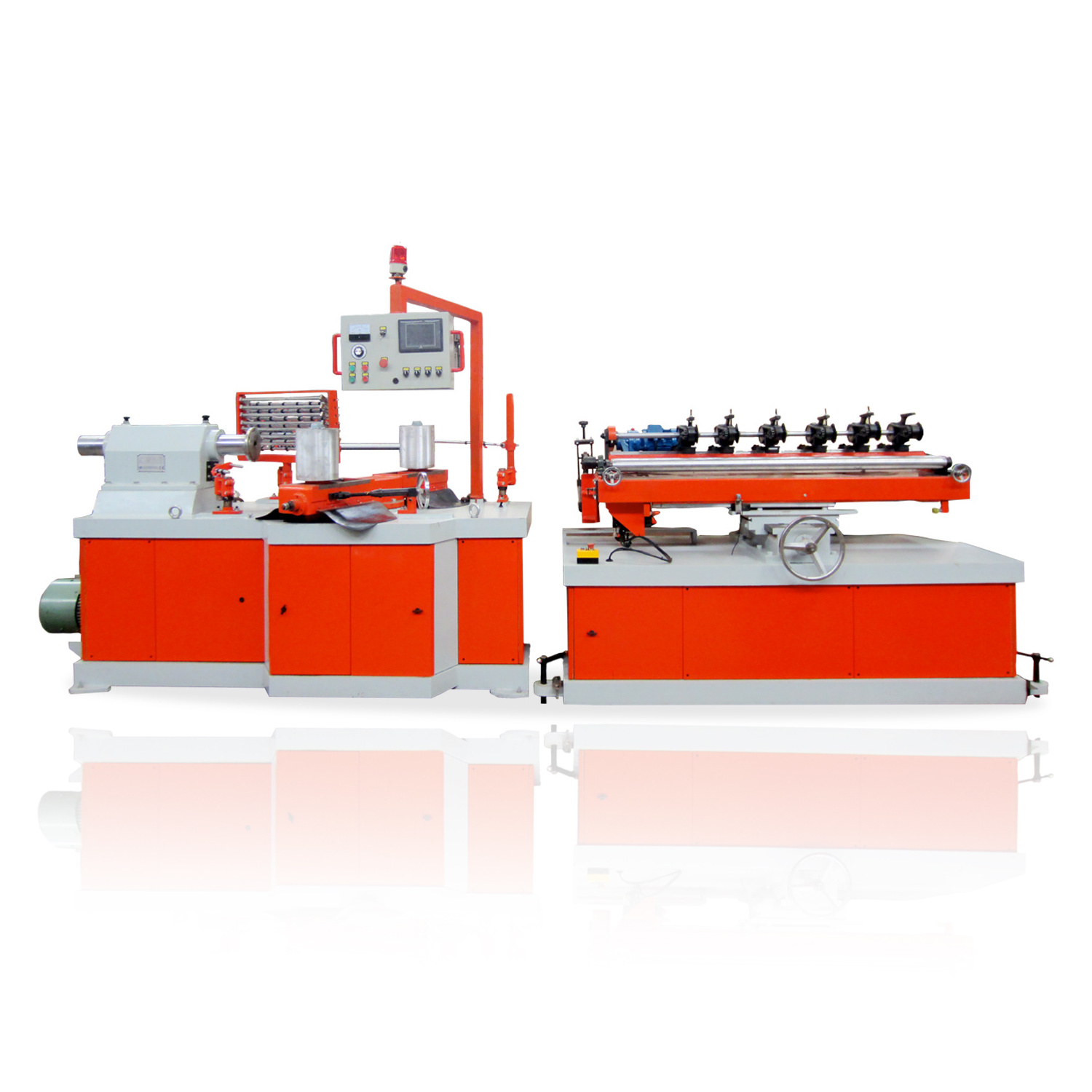

LJ-2D HMC(PL+ZT)Paper Pencil Making Machine For Small Business
|
|
|
|||
|
Paper reeling stand
|
ZT
|
Cascade gluing stand
|
PL
|
|||
|
Paper tube ID
|
30-100mm
|
Paper tube thickness
|
1-12mm
|
|||
|
Paper tube length
|
Min 200mm
|
Paper ply no.
|
25plies
|
|||
|
Machinery speed
|
Max 15m/min
|
In-line cutter
|
Multi circular knives
|
|||
|
Machinery main function |
|
|
|
|||
|
●Paper reel seat equipped with lifting crane.
|
|
|
|
|||
|
●Paper reel stand and glue unti movement:0.75kw motor to adjust reel stand and glue unit angle.
|
|
|
|
|||
|
●Glue transferring accelerating pump: Pneumatic diaphragm pump.
|
|
|
|
|||
|
●Glue transferring pipeline: include collect barrel.
|
|
|
|
|||
|
●Gluing system: include glue pot and pneumatic tension control,can adopt double or single ply gluing mold according to required tube compressive strength.
|
|
|
|
|||
|
●Paper ply tension adjustor: 20pcs tension controller, driven by pneumatic system.
|
|
|
|
|||
|
●Hanging-type operation panel, specialized operation system,touch screen displays in English.
|
|
|
|
|||
|
●Separate electric apparatus box.
|
|
|
|
|||
|
●Gear shifting is designed to suit to tubes in different specifications.
|
|
|
|
|||
|
●Mandrel is high-precision processed,with chrome-plating.
|
|
|
|
|||
|
●Cutting unit speed is positive synchronization with the production speed,controlled by servo motor.
|
|
|
|
|||
|
●Automatic stop and alarm when the bottom-ply is broke.
|
|
|
|
|||
|
●Machine frame is with the anti-deformation treatment, ensuring machinery running stability and working precision.
|
|
|
|
|||
|
Packaging Details
|
Machine needs a 20 GP container; Packed with wooden pallet and box; For some countries that need fumigated wooden pallet and case, we also can prepare, just tell us in advance, thanks.
|
|
|
||
|
Delivery Detail
|
Within 1.5 months after receive the down payment.
|
|
|
||
|
Paper tube production line |
|
|
|
|||
|
Paper slitter rewinder
|
slit jumpo paper roll into narrow reels.
|
|
|
|||
|
Paper tube winder
|
spiral windering paper plies into paper tube in long length.
|
|
|
|||
|
Paper tube dryer
|
dry paper tube to achieve higher compressive strength and straightness, especially for high quality paper tube and textile paper tube like POY/DTY/FDY paper tube.
|
|
|
|||
|
Paper tube recutter
|
recut long tube into short length,min 10mm.
|
|
|
|||
|
Other postprocessing machines
|
like paper tube edge/surface polisher,paper tube curler,etc., are for some special purpose paper tube.
|
|
|
|||
Yueqing HUANLONG Machine Factory
Founded in 1983, covering nearly 20 acres, is the main production base paper tube equipment. 145 employees, including technical department personnel 10 people, the development group 3 of 10 people, mainly engaged in new product trial, the old product improvements. Other management staff of 21 people.
HUANLONG Industrial Co., Ltd. Suzhou Central:
We founded Suzhou HUANLONG Industrial Co., Ltd. in 2004, the company registered capital of 15 million, covering 40 acres, is mainly engaged in the production and improve the equipment, improve and explore new technology.
HUANLONG Machine Co., Ltd., Zhejiang Central:
we established HUANLONG Machine Co., Ltd. in 2013, address is Zhejiang Central near Hangzhou. Companies registered capital of 80 million, covering 100 acres, with a total construction area of 55,000 square meters.
1.Will you provide engineers for machinery installation?
Engineers
oversea service
for machinery installation is available, all engineers at least
10 years
experience.
2.Our required parameter is not standard,can made to order?
Our machines can made to order according to customer's requirement.
3.What's your payment terms?
We accept
L/C,TT
((30% as deposit, 70% before shipment).
4. Any other question, welcome to call me.
