Quick Details
-
Model number:
-
JD-R
-
Product name:
-
Multi-ring Jet Diffuser
-
Material:
-
Aluminium
-
Installation:
-
HVAC Equipment
-
Usage:
-
HAVC System
-
Keyword:
-
Multi-ring Jet Diffuser
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SuperAir
-
Model Number:
-
JD-R
-
Model number:
-
JD-R
-
Product name:
-
Multi-ring Jet Diffuser
-
Material:
-
Aluminium
-
Installation:
-
HVAC Equipment
-
Usage:
-
HAVC System
-
Keyword:
-
Multi-ring Jet Diffuser
Product Description
Specification
|
Model
|
N(mm)
|
F(mm)
|
|
JD-RB150
|
148
|
220
|
|
JD-RB200
|
198
|
270
|
|
JD-RB250
|
248
|
320
|
|
JD-RB300
|
298
|
370
|
|
JD-RB350
|
348
|
420
|
|
JD-RB400
|
398
|
470
|

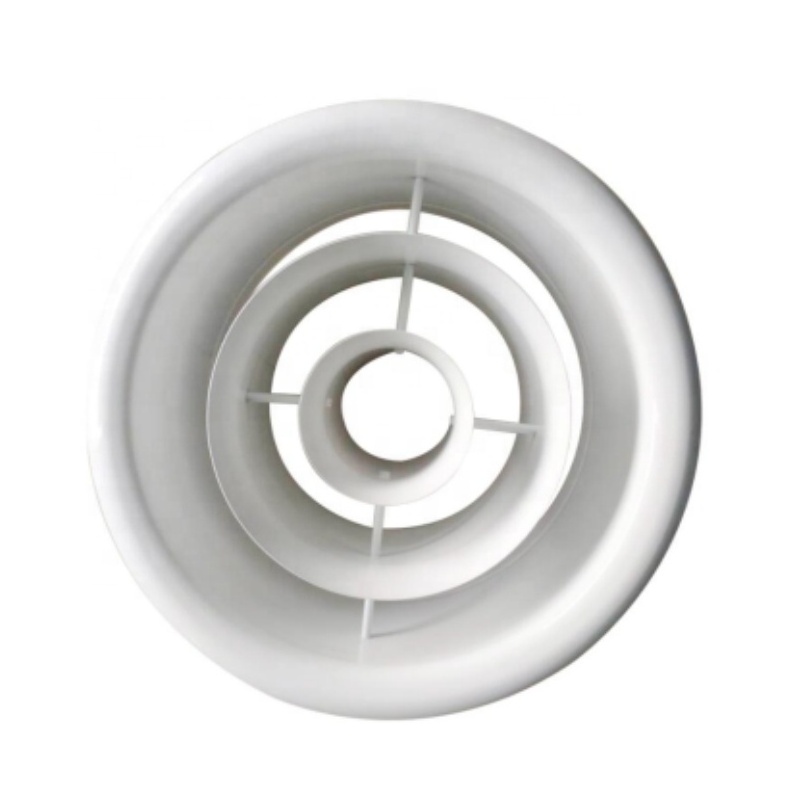

Multi-Ring Jet Diffuser, JD-R
The SuperAir Multi Ring Jet Diffusers, JD-R is the SuperAir plastic diffuser& grille is designed for ceiling exhaust or supply air applications. It is made from impact-resistant UV-stabilised ABS. Suitable with a large range of wall-mounted and in-line fans.
Adjustable concentric cone -Achieves better air distribution.
1.Product Introduction
The SuperAir Multi Ring Jet Diffusers, JD-R is the Frame & Core: High quality extruded aluminum alloy(A6063) sheet. The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity. This type of multi-ring air diffuser is specially designed to use in the application where the high airflow capacity and long throw supply system is required. Air flow direction is adjustable up to 45°upward and downward or leftward and rightward. Surface Finish: Powder coated color finish as per RAL color----standard color: RAL9016, 9010.
2. Product Feature And Application
The frame & core are high quality extruded aluminum.Sheet construction with advantages of corrosion resistance and rigidity. This type of multi-ring air diffuser is specially designed to use in the application where the high airflow capacity and long throw supply system is required. The inner core can be adjustable in 45 degree to control the air. Ring jet diffuser can be connect with duct or flexible aluminum duct directly for convient installing
Adjustable concentric cone -Achieves better air distribution.
1.Product Introduction
The SuperAir Multi Ring Jet Diffusers, JD-R is the Frame & Core: High quality extruded aluminum alloy(A6063) sheet. The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity. This type of multi-ring air diffuser is specially designed to use in the application where the high airflow capacity and long throw supply system is required. Air flow direction is adjustable up to 45°upward and downward or leftward and rightward. Surface Finish: Powder coated color finish as per RAL color----standard color: RAL9016, 9010.
2. Product Feature And Application
The frame & core are high quality extruded aluminum.Sheet construction with advantages of corrosion resistance and rigidity. This type of multi-ring air diffuser is specially designed to use in the application where the high airflow capacity and long throw supply system is required. The inner core can be adjustable in 45 degree to control the air. Ring jet diffuser can be connect with duct or flexible aluminum duct directly for convient installing
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
