High precision cutting
Dinosaw machinery uses branded motors to ensure cutting accuracy, coupled with the use of the reducer, it can ensure the high precision, high efficiency and high reliability of the stone machinery.
- Product Details
- {{item.text}}
Quick Details
-
Production Capacity:
-
100%, 200sets/year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Dinosaw
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
6000*5000*2800mm
-
Weight:
-
5200 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Function:
-
Cut Slabs
-
Max. blade diameter:
-
600mm
-
Application:
-
slab processing
-
Max. cutting:
-
3200*2000*180
-
Features:
-
precise and stable cutting
-
Motor:
-
Famous Brands by customer request
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
15kw
-
Cutting thickness (max):
-
600mm
-
Production Capacity:
-
100%, 200sets/year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Dinosaw
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
6000*5000*2800mm
-
Weight:
-
5200 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Function:
-
Cut Slabs
-
Max. blade diameter:
-
600mm
-
Application:
-
slab processing
-
Max. cutting:
-
3200*2000*180
-
Features:
-
precise and stable cutting
-
Motor:
-
Famous Brands by customer request
Product Description

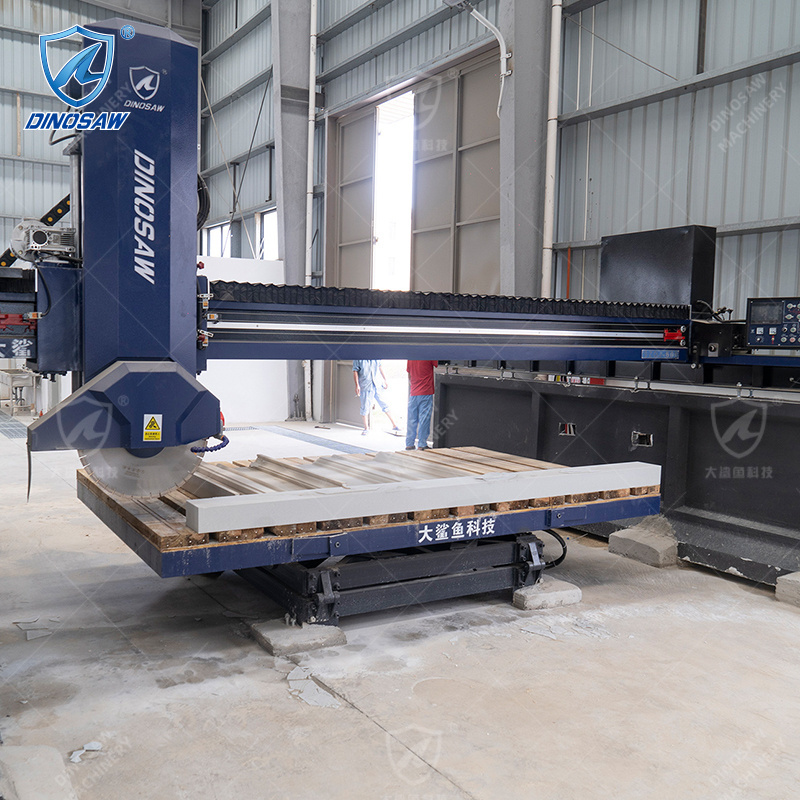

Intelligent Laser Bridge Saw Cutting Machine
This machine adopts microcomputer control, touch-type operation panel, and man-machine dialogue is flexible.
We have Models QSQJ-400, QSQJ-600, and QSQJ-800 for you to choose.
Specification
The main control components are all internationally famous brand components, the cross beam adopts an oil-immersed double V-shaped track, the transverse pass adopts step-less speed regulation, and the longitudinal splitting mechanism adopts double mountain-shaped guide rail combined with high-precision encoder counting to ensure the machine working precision.
Optional with 360-degree rotation for automatic positioning with every 45 degrees, mainly used for cutting rectangles, octagons, arcs, and circles.
|
Model
|
unit
|
QSQJ-400
|
QSQJ-600
|
QSQJ-800
|
||||
|
Max.diameter of blade
|
mm
|
400
|
600
|
800
|
||||
|
Main motor power
|
kw
|
15
|
18.5
|
22
|
||||
|
Table dimensions (LxW)
|
mm
|
3200x2000
|
3200x2000
|
3200x2000
|
||||
|
Table tilting degree
|
n°
|
0-85°
|
0-85°
|
0-85°
|
||||
|
Table rotating degree
|
n°
|
90° /360°
|
90° /360°
|
90° /360°
|
||||
|
Max. cutting size (LxWxH)
|
mm
|
3200x2000x80
|
3200x2000x180
|
3200x2000x280
|
||||
|
Overall dimensions (LxWxH)
|
mm
|
6000x5000x3000
|
6000x5000x3200
|
6000x5000x3400
|
||||
|
Water consumption
|
m³/h
|
3
|
3
|
3
|
||||
|
Approximate Weight
|
kg
|
5000
|
5300
|
5500
|
||||
|
*It can be customized according to customers’ requirement.
|
|
|
|
|
||||
Safe & Stable
High-quality electrical components are used to ensure stable performance. All electrical components are
installed and wired in the electrical cabinet. This allows for easy access and repairs when needed.
Maintainance
Auto Lubrication Hydraulic System Automatic oil feeding lubrication system, make regular maintenance easy and reduce waste.
Table rotation
Standard with 0-90 workbench, 0-85 degree flap, mainly used to cut high-precision specification board.
Stable support
The hydraulic cylinder is used to control the turning movement of the table
Maintain precision
Linear guides r
educe wear and maintain accuracy for a long time
