Quick Details
-
Frequency:
-
50Hz or 60Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DOOSAN
-
Model Number:
-
GNRDS
-
Speed:
-
1500rpm or 1800rpm
-
Engine:
-
DOOSAN
-
Alternator:
-
Stamford,LeroySomer, Marathon,Engga
-
Control panel:
-
Smartgen, Deepsea,ComAp
-
Cooling System:
-
Water cooled
-
Power factor:
-
0.8
-
Insulation class:
-
H
-
Protection class:
-
IP21-23
-
QC system:
-
CCIB inspection and 4 hours factory testing
-
Certificates:
-
ISO9001:2008, CE
Quick Details
-
Rated Power:
-
50lkw to 500kw
-
Rated Voltage:
-
220V/380V, 230V/400V, 240V/415V
-
Rated Current:
-
90A to 900A
-
Frequency:
-
50Hz or 60Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DOOSAN
-
Model Number:
-
GNRDS
-
Speed:
-
1500rpm or 1800rpm
-
Engine:
-
DOOSAN
-
Alternator:
-
Stamford,LeroySomer, Marathon,Engga
-
Control panel:
-
Smartgen, Deepsea,ComAp
-
Cooling System:
-
Water cooled
-
Power factor:
-
0.8
-
Insulation class:
-
H
-
Protection class:
-
IP21-23
-
QC system:
-
CCIB inspection and 4 hours factory testing
-
Certificates:
-
ISO9001:2008, CE

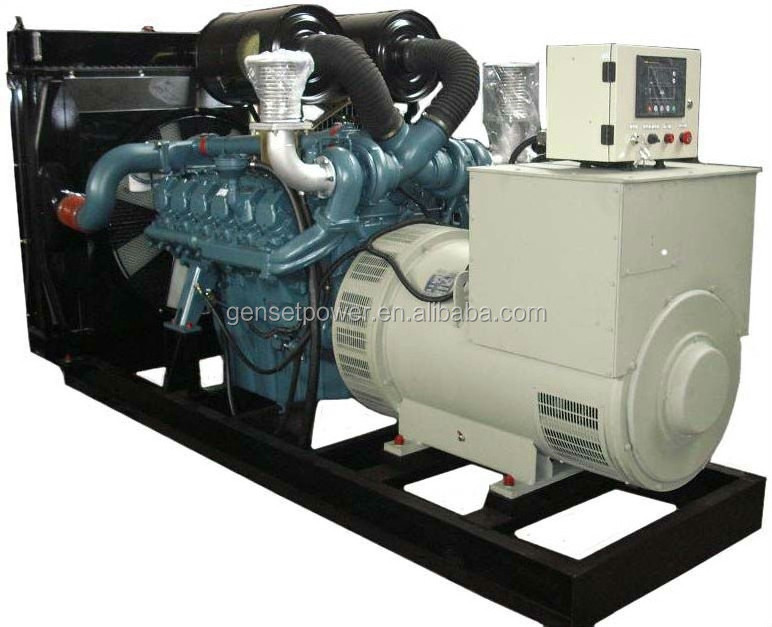

Water cooled diesel engine 500kw Doosan P222LE-S Generator
| Genset Model | Prime Power | Standby Power | Engine | Fuel Consumption | Cylinder No. | Displacement | Bore X Stroke | ||
| KW | KVA | KW | KVA | (g/kwh) | (L ) | (mm) | |||
| GNR70DS | 50 | 62.5 | 55 | 70 | DB58 | ≤216 | 6 | 8 | 102*118 |
| GNR94DS | 72 | 90 | 80 | 94 | D1146 | ≤216 | 6 | 8 | 111*139 |
| GNR138DS | 100 | 125 | 110 | 138 | D1146T | ≤216 | 6 | 8 | 111*139 |
| GNR200DS | 140 | 175 | 160 | 200 | D086TI-1 | ≤216 | 6 | 8 | 111*139 |
| GNR225DS | 160 | 200 | 180 | 225 | P086TI | ≤216 | 6 | 8 | 111*139 |
| GNR275DS | 200 | 250 | 220 | 275 | P126T1 | ≤216 | 8 | 8 | 123*155 |
| GNR310DS | 220 | 275 | 250 | 310 | P126TI | ≤216 | 6 | 11 | 123*155 |
| GNR350DS | 250 | 310 | 280 | 350 | P126T11 | ≤215 | 6L | 11 | 128*142 |
| GNR413DS | 300 | 375 | 330 | 413 | P158LE-1 | ≤213 | V8 | 14.6 | 128*142 |
| GNR450DS | 320 | 410 | 360 | 450 | P158LE | ≤212 | V8 | 14.6 | 128*142 |
| GNR500DS | 360 | 450 | 400 | 500 | P158LE | ≤212 | V10 | 18.3 | 128*142 |
| GNR550DS | 400 | 500 | 440 | 550 | P180LE | ≤212 | V10 | 18.3 | 128*142 |
| GNR625DS | 450 | 560 | 500 | 625 | P222LE-I | ≤211 | V12 | 21.9 | 128*142 |
| GNR700DS | 500 | 625 | 560 | 700 | P222LE-S | ≤211 | V12 | 21.9 | 128*142 |
Specifications:
Diesel engine:doosan engine
a) Multi-cylinder in-line or veer engine.4-stroke,direct injection
b) Governer Method:electrical or mechanical governor
c) Water cooling
d) Intake method:Natural apirated or turbocharged
e) Electric motor starting system
Alternator: Stamford,LeroySomer, Marathon,Engga
a) Brushless, 4 poles, rotation magnet
b) IP21-23(NEMA1) enclose is standard for all industrial alternators
c) H class insulation system
d) AVR self-regulated, voltage regulation rate: ≤±1%
e) Wide range of flange adaptors and single bearing disc coupling
f) Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
g) Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
Control plane :
a)Automatic alarm system: the unit has the acoustic-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature the oil pulls down, over speed, over load and over current
b) Operation display:
i)Unit voltage, tri-phase load current and frequency display
ii)Water temperature, oil pressure display
iii)Fuel level, fuel temperature dieplay
iv)Audible and visual alarm lamps and buzzers
c)Emergency stop button
d)Three protection
Accessories
a) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.
b) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
Warranty policy
Guarantee for one year or 1000 hours whichever reach first from ex-factory date . During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
