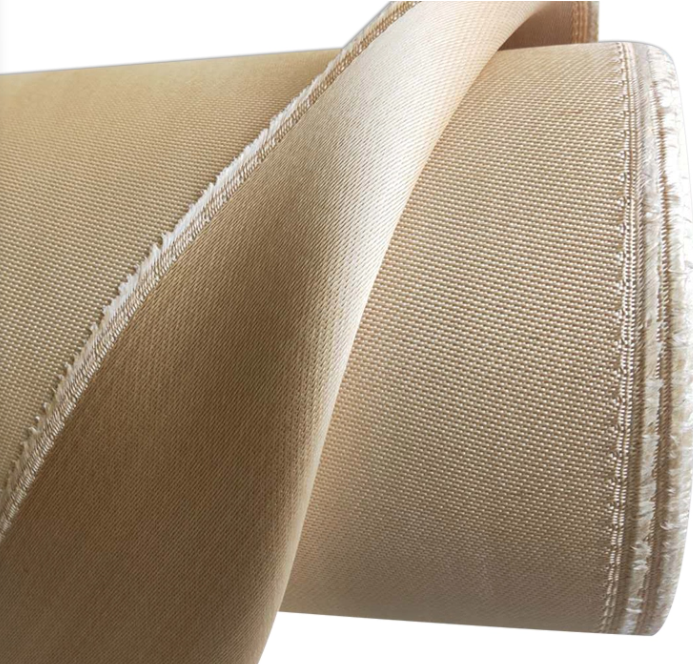

High silica cloth is a heat-resisting and soft special fiberglass fabric. Its silica is more than 96% with excellent
heat-resisting, could be used in temperature 900°C for long-time, (instant heat-resistance temperature could be 1400°C). It is suitable for high temperature situation, such as protection in soldering, high temperature, heat insulation in First Aid, electric insulation,. Main products: fireproofing curtain, fireproof door, heat-proof mat, fire blanket and fireproof suit
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
Silica Fabric
-
Weight:
-
1200g/m2
-
Width:
-
92cm, 100cm, 150cm
-
Standing Temperature:
-
re: 1000°C
-
Product name:
-
Electrical Insulation Ceramic Fiber Paper premium Grade
-
Color:
-
Light Brown
-
Highest Temperature Resistence:
-
1700°C
-
Working Temperature Resistance:
-
1000C
-
Chemical Compositi:
-
SiO2≥96%
-
Material:
-
100% Fiberglass
-
Roll Length:
-
50m
-
Keyword:
-
High Temperature Fabric
-
Good Features:
-
Flame Resistance
-
Certificates:
-
ISO9001
Quick Details
-
Application:
-
Wall/Roof covering Cloth
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
jiangnan
-
Model Number:
-
Silica Fabric
-
Weight:
-
1200g/m2
-
Width:
-
92cm, 100cm, 150cm
-
Standing Temperature:
-
re: 1000°C
-
Product name:
-
Electrical Insulation Ceramic Fiber Paper premium Grade
-
Color:
-
Light Brown
-
Highest Temperature Resistence:
-
1700°C
-
Working Temperature Resistance:
-
1000C
-
Chemical Compositi:
-
SiO2≥96%
-
Material:
-
100% Fiberglass
-
Roll Length:
-
50m
-
Keyword:
-
High Temperature Fabric
-
Good Features:
-
Flame Resistance
-
Certificates:
-
ISO9001
Product Introduction
|
Type
|
1.3mm High Silica Fiberglass Fabric
|
|
Weight
|
1200g/m
2
|
|
Thickness
|
1.3mm
|
|
Width
|
92cm, 100cm, 150cm
|
|
Roll Length
|
50m
|
|
Temperature Resistance
|
-70°C to 1000°C
|
|
Warp and Weft Density
|
18*13/cm
|
|
Warp Tensile Strength 25*200mm]
|
965N/piece
|
|
Weft Tensile Strength 25*200mm]
|
643N/piece
|
|
Glass Yarn Type
|
E-glass
|
|
Advantage
|
Good Insulation, Heat Resistance, Corrosion resistance, High mechanical Strength
|
|
Weave
|
Satin Weave
|
|
Silica Content%
|
97.8%
|
|
Linear Shrinkage %
|
5.2
|
Product Details
What is High Silica Fiberglass fabric?
Feature
SiO2≥96%
Soft point nearly 1700°C, long-period service at 900°C
Low thermal conductivity
Good chemical stability
Good electrical insulation
Low thermal shrinkage
Non-asbestos product without pollution
Good process performance
Soft point nearly 1700°C, long-period service at 900°C
Low thermal conductivity
Good chemical stability
Good electrical insulation
Low thermal shrinkage
Non-asbestos product without pollution
Good process performance
It is mainly used as the thermal insulating materials of steam heating pipelines, sound -proof materials in construction and
protective layer of super glass wool with excellent functions of fire -resistant, anti-corrosion, heat isolation and sound
absorbability. It can also be used as packing materials for the export equipment with the functions of damp proof, mildew proof, fire -existence and anticorrosion.
protective layer of super glass wool with excellent functions of fire -resistant, anti-corrosion, heat isolation and sound
absorbability. It can also be used as packing materials for the export equipment with the functions of damp proof, mildew proof, fire -existence and anticorrosion.
Production Application
Flexiable Insulation
Fabric Expansion Joints.
Fabric Ductwork Connector
Fire Curtains
Fire Blankets
Other Fire Control System
This product is ideal for heat preservation material, firefighting equipment like fire curtains and fireproof garments. Very good in dust collection and filtration equipment where special material is needed to withstand high temperature gas, and in filtering high-temperature liquid meta
Related Products
|
Item Name
|
Thickness mm
|
Weight g/m
2
|
Temperature Resistance
|
SIO2 Concentration
|
|
Media Silica
|
0.6
|
600
|
900°C
|
76%
|
|
Media Silica
|
1.3
|
1200
|
900°C
|
76%
|
|
High Silica
|
0.6
|
600
|
1000°C
|
96%
|
|
High Silica
|
1.3
|
1200
|
1000°C
|
96%
|
Production Process
The fiberglass yarns are supplied by our company, it has 10% more strength, much softer and more beautiful surface than normal product. Our glass fiber cloth quality is much better than other suppliers in China and faster production rate.
Product packaging
What is fiberglass cloth?
Glass fiber is an inorganic non-metallic material with excellent performance. It has many advantages, such as good insulation, heat resistance, excellent corrosion resistance, and high mechanical strength, but the disadvantage is fragility. Weak wear resistance. Glass fiber commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards, and other fields of the national economy.
What is the primary function of the fiberglass product?
1, it is suitable for low temperature and high temperature, with weather resistance. Each kind of product has different
temperature tolerance ranges. 2, non-adhesive, not easy to adhere to any substance. 3, resistant to chemical corrosion. 4, low friction coefficient, is the best choice for oil-free self-lubrication. 5, with high insulation properties. 6, high intensity. It has excellent mechanical properties.
Can I get any samples before I order?
We are welcome to place a sample order to test and check our product quality before you place the order. At the same time, you can also send your samples to me. We will respond to you the next day after receiving the sample to see whether it can be produced or not.
How long is the order delivery time?
It mainly depends on the quantity of your order. If the number of orders and the number of samples are not unusually large, we will send you a sample within three days and ship the order production within 10-20 days.
How to pay for the purchase price?
Our recommended payment method is t.t. 100% t.t in advance for an order value of less than $5000. For bigger orders, we will
arrange production after we received 30% deposit, the remaining amount will pay before we ship products.
How do you ship the goods?
We can ship the goods by sea, air, train or courier. Our three main modes of transportation are FOB.
Can we visit your company?
If you need the airport pick up and hotel reservation, please let us know once you decide the itinerary. We will arrange for
people to pick up. Moreover, we also welcome guests to our company to fire blanket testing. Our company's fire blanket testing
laboratory is the only BSI approved laboratory in China.
Glass fiber is an inorganic non-metallic material with excellent performance. It has many advantages, such as good insulation, heat resistance, excellent corrosion resistance, and high mechanical strength, but the disadvantage is fragility. Weak wear resistance. Glass fiber commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards, and other fields of the national economy.
What is the primary function of the fiberglass product?
1, it is suitable for low temperature and high temperature, with weather resistance. Each kind of product has different
temperature tolerance ranges. 2, non-adhesive, not easy to adhere to any substance. 3, resistant to chemical corrosion. 4, low friction coefficient, is the best choice for oil-free self-lubrication. 5, with high insulation properties. 6, high intensity. It has excellent mechanical properties.
Can I get any samples before I order?
We are welcome to place a sample order to test and check our product quality before you place the order. At the same time, you can also send your samples to me. We will respond to you the next day after receiving the sample to see whether it can be produced or not.
How long is the order delivery time?
It mainly depends on the quantity of your order. If the number of orders and the number of samples are not unusually large, we will send you a sample within three days and ship the order production within 10-20 days.
How to pay for the purchase price?
Our recommended payment method is t.t. 100% t.t in advance for an order value of less than $5000. For bigger orders, we will
arrange production after we received 30% deposit, the remaining amount will pay before we ship products.
How do you ship the goods?
We can ship the goods by sea, air, train or courier. Our three main modes of transportation are FOB.
Can we visit your company?
If you need the airport pick up and hotel reservation, please let us know once you decide the itinerary. We will arrange for
people to pick up. Moreover, we also welcome guests to our company to fire blanket testing. Our company's fire blanket testing
laboratory is the only BSI approved laboratory in China.
