Quick Details
-
Dimension(L*W*H):
-
10240*2620*1600
-
Weight (KG):
-
11370
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Max. Grinding Length:
-
3000mm
-
Certification:
-
CE ISO
-
Max. Grinding Diameter:
-
500mm
-
Power:
-
15.8KW+4KW
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
KAKU
-
Voltage:
-
380V or 440V customizable
-
Dimension(L*W*H):
-
10240*2620*1600
-
Weight (KG):
-
11370
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Max. Grinding Length:
-
3000mm
-
Certification:
-
CE ISO
-
Max. Grinding Diameter:
-
500mm
-
Power:
-
15.8KW+4KW

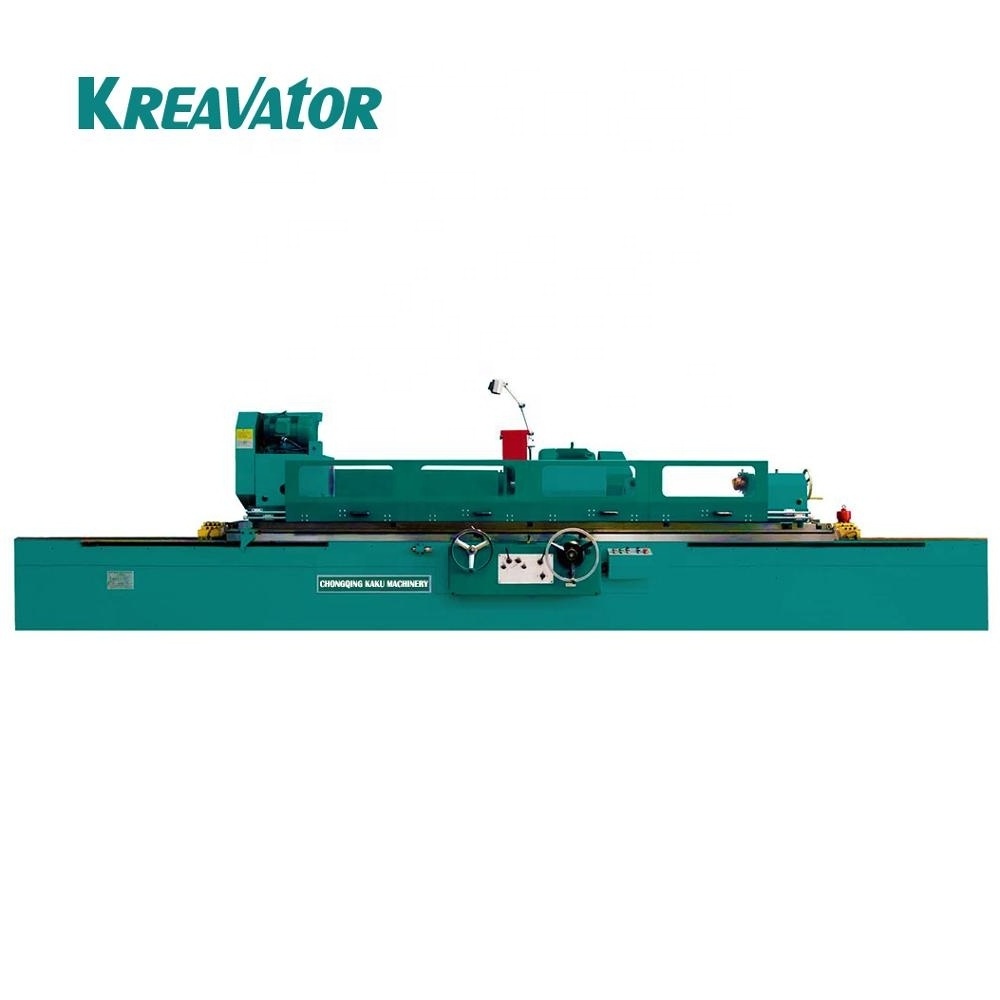

M1350 Cylindrical Grinding machine
Exported Many sets To Europe, Have CE
1. Wheel head
The wheel head cross feed is driven by hydraulic, which realizes automatic periodical feed and rapid feed. It can also do rough and fine feed through hand wheel.
The work head spindle, wheel head spindle, internal grinding spindle, coolant pump, hydrodynamic and hydrostatic oil pump are driven by separate motors.
The wheel dresser can be assembled on the worktable surface or on the tailstock.
2. Quality:
The longitudinal movement of the worktable is driven by hydraulic or by hand wheel. The worktable can rotate to a certain degree so as to be suitable for grinding taper.
Each moving parts of the machine has electric, hydraulic and mechanic interlock structure machine is well designed with pleasing appearance, all control lever are centralized in panel make operating easy
From the above Our M13 series cylindrical grinder is good looking and practical.
About the head stock, we adopt the converter to control the headstock rotating speed. We put the controller on the control panel to make the operation much easier.
| SPECIFICATIONS OF M13 SERIES UNIVERSAL CYLIDRICAL GRINDER | |||||
| Item | Unit | MW1320 | M1320/1420 | M1332A/M1432 | M1350/1450 |
| Distance between centers | mm | 500 / 750 | 1000/1500/2000/3000 | 2000/3000 | 1500/2000/3000/4000 |
| Center height | mm | 135 | 180 | 180 | 270 |
| Dia. Ground (O.D) | mm | 5-200 | 8-320 | 8-320 | 25-500 |
| Max. length ground (O.D) | mm | 500 / 750 | 1000/1500/2000/3000 | 2000/3000 | 1500/2000/3000/4000 |
| Max. weight of work piece | kg | 100 | 150 | 500 | 1000 |
| Center taper | 4 | 5 | 5 | 6 | |
| Spindle speed | r/min | 25-380 stepless | 26,52,90,130,180,260 | 26/52/90/130/180/260 | 50Hz: 18-180 |
| Stepless | |||||
| Wheel spindle speed | r/min | 1335 | 1100 | 1100 | 870 |
| Wheelhead rapid travel | mm | 50 | 50 | 50 | 100 |
| Max. travel | mm | 205 | 235 | 235 | 438 |
| Hand feed per.rev | Rough:2, Fine 0.5 | Rough: 4 | |||
| Fine: 0.5 | |||||
| Hand feed per.gra | Rough: 0.01, Fine: 0.0025 | Rough: 0.02 | |||
| Fine: 0.0025 | |||||
| Wheel size (ODxWxID) | mm | 500×50×203 | 600×63×305 | 600×63×305 | 750×75×305 |
| Peripheral velocity | m/s | 35 | 35 | 35 | 35 |
| Hand feed per.rev | mm | 6 | 6 | 6 | 5 |
| Max. swivel angle of table (clock wise) | ° | 3° | 3° | 2° | 3°/2°/2°/1° |
| Max. swivel angle of table (Anticlockwise) | ° | 9°/ 8° | 7°/ 6°/5°/ 3° | 5°/ 3° | 6°/5°/3°/2° |
| Longitudinal speed range of table | m/min | 0.1-4 | 0.1-4 | 0.1-4 | 0.1-3 |
| Center tap30er | MT | 4 | 4 | 4 | 6 |
| Quill travel | mm | 30 | 30 | 30 | 70 |
| Wheelhead motor power | kw | 5.5 | 11 | 11 | 15 |
| Workhead motor power | kw | 1.1 | 0.75/1.5 | 1.5/2.4 | 4 |
| Gross weight | t | 4 / 4.2 | 5.3/6.1/7.9/9.9 | 7.9/9.9 | 11.2/13/17.4/20 |
Standard Accessories:
Coolant tank
Wheel periphery dresser base without diamond pen
Flange and wheel exactor
Standard grinding wheel
Balancing arbor
Leveling wedge
Working lamp
Open steady rest
Centre
Internal grinding attachment
Optional Accessories:
Balance stand (OverΦ500mm)
Magnetic separator
Coolant tank with paper filter
Coolant with magnetic separator and paper filter
Close steady rest
Grinding wheel dresser
